Eaton

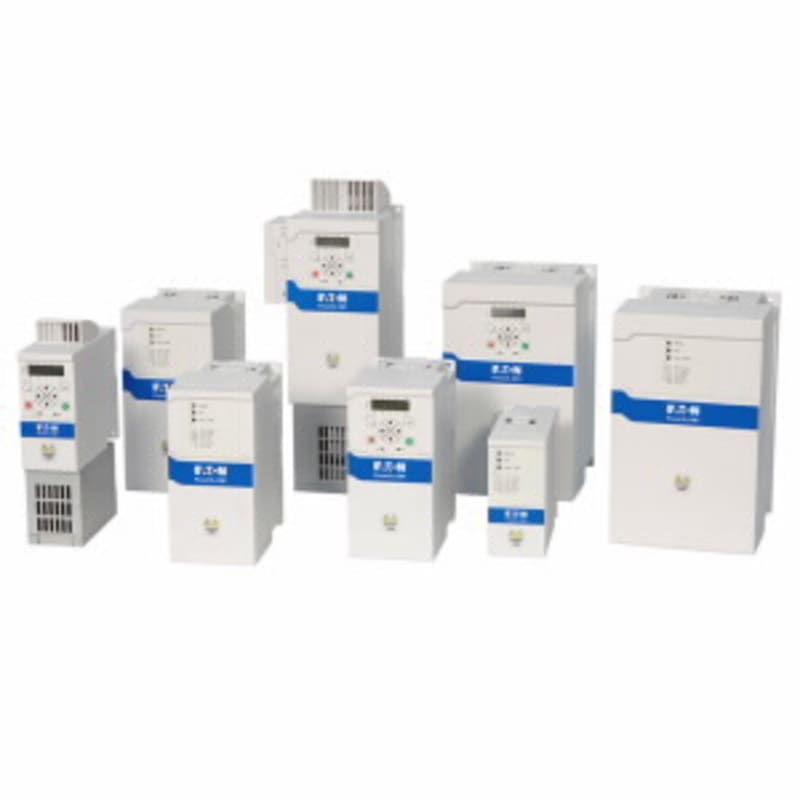

variable-frequency drive DM1-34038NB-N20B-EM
Part numberDM1-34038NB-N20B-EMEAN / GTIN4015081980390HS code8504.40
Drives & Controllers
Variable Frequency Drives
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton DM1-34038NB-N20B-EM variable-frequency drive DM1, 400 V AC, 3-pole, 38 A, 18.5 kW, IP20/NEMA0, Brake chopper.
Technical Specifications
- Manufacturer part number (MPN)
- DM1-34038NB-N20B-EM
- EAN / GTIN
- 4015081980390
- HS code
- 8504.40
- Sales unit
- pcs
- Width
- 184 mm
- Height
- 300 mm
- Depth
- 195 mm
- Power consumption
- 473.4 W
- With control element
- No
- Number of digital inputs
- 4
- Number of analogue inputs
- 1
- Number of analogue outputs
- 1
- Supporting protocol for LON
- No
- Number of HW-interfaces RS-485
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- Degree of protection (IP)
- IP20
- With PC connection
- Yes
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 380–480 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- Yes
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- Yes
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- Yes
- Max. output frequency
- 400 Hz
- Max. output at linear load at rated output voltage
- 18.5 kW
- Max. output at quadratic load at rated output voltage
- 22 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 10 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Max. output voltage
- 500 V
- Nominal output current I2N
- 38 A
- Supporting protocol for BACnet
- No
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4015081980390
- SAP 1200553465
- Code 82920398
Product Documentation
Document preview: variable-frequency drive DM1-34038NB-N20B-EM — Specification sheet
More from Eaton
Eaton
Nipple IP68 M63 (V-M63)
Eaton
variable-frequency drive DM1-344D3EB-S20S-EM
Eaton

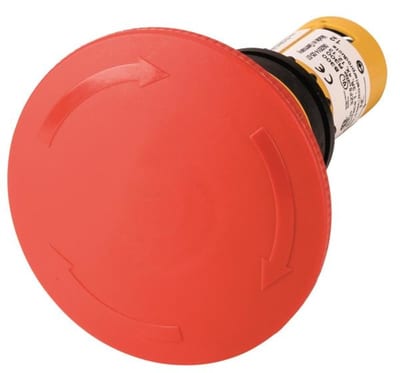

Emergency stop, RMQ (C22-PVT60P-K11)
Eaton

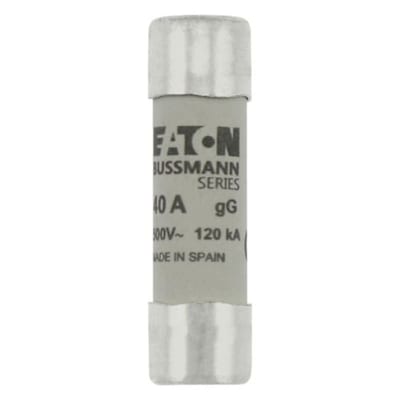

Cylindrical Fuse 14X51MM, 40A (C14G40)
Eaton

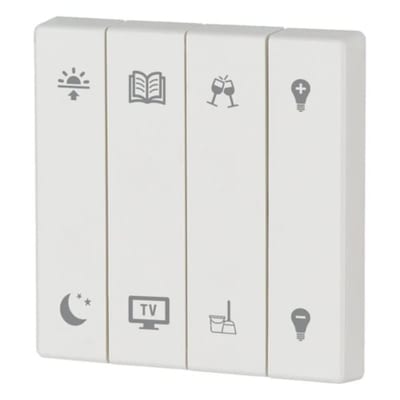

Eaton 4-gang rocker, signal white, night/TV/dinner
CWIZ-04/k8
Eaton

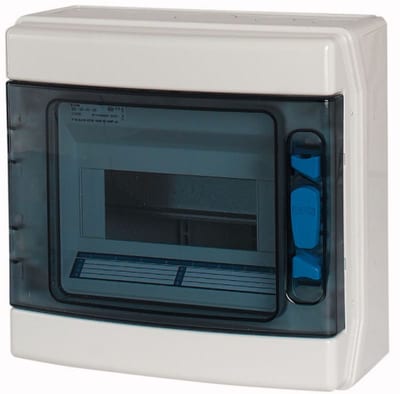

Enclosure IP65 1-Row 8 Modules (IKA-1/8-OT)
Eaton

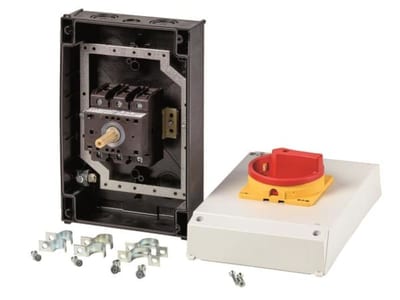

EMC Safety Switch IP65 (P3-63/I4/MBS/SVB)
Eaton

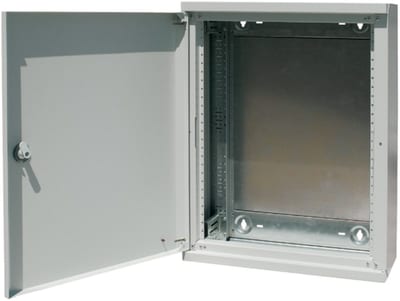

Panel board B=800 mm H=1060 mm
