Eaton

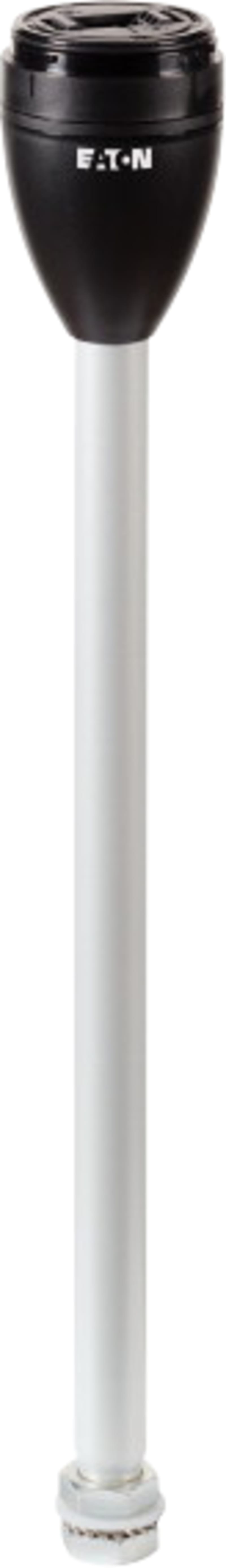

Base 400mm Aluminium Tube, banjobolt (SL7-CB-T-400)

Name: Base 400mm Aluminium Tube, banjobolt (SL7-CB-T-400)
Brand: Eaton
SKU: SL7-CB-T-400

Part numberSL7-CB-T-400EAN / GTIN4015081677832HS code8531.90

Metals & Profiles

Bars, Plates & Profiles

MOQ:1

Pricing

Request a quote

We reply within 24 hours

Request Quote

Email Datasheet

Overview

Eaton Base 400mm Aluminium Tube, banjobolt (SL7-CB-T-400) is listed under Metals & Profiles / Bars, Plates & Profiles. Sales unit: pcs; Eaton catalogue number: 171454; Depth: 73 mm; Height: 517 mm; Width: 73 mm; Weight: 0.41 kg.

Technical Specifications

Manufacturer part number (MPN): SL7-CB-T-400
EAN / GTIN: 4015081677832
Sales unit: pcs
Eaton catalogue number: 171454
Depth: 73 mm
Height: 517 mm
Width: 73 mm
Weight: 0.41 kg
Certifications: CE; UL report applies to both US and Canada; CSA Class No.: NKCR7; CSA-C22.2 No. 94-91; UL 508; UL; UL File No.: E29184; IEC/EN 60529; IEC/EN 60947-5-1; CSA-C22.2 No. 14-10; UL Category Control No.: NKCR; Certified by UL for use in Canada
Ambient operating temperature - max: 60 °C
Ambient operating temperature - min: -30 °C
Climatic proofing: Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
Rated insulation voltage (Ui): 250 V
Rated operational voltage: 110/120 V AC ± 10 %; 230/240 V AC ± 10 %; 24 V AC/DC ± 10 %
Color: Other
Fitted with: Cover; Aluminum tube; Banjo bolt
Number of modules: Max. 5; Max. 10 (with base for mounting on both sides); Max. 5 (with standard base)
Connection to SmartWire-DT: No
Degree of protection: NEMA 4; IP66; NEMA 4X; NEMA 13
Mounting Method: Bracket; Floor; Horizontal; Tube
Mounting position: As required
Overvoltage category: III
Pollution degree: 3
Product Category: SL signal towers
Rated impulse withstand voltage (Uimp): 4000 V AC
Shock resistance: 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27
Tube length: 400 mm
Type: Base module
Terminal capacity (AWG): 24 - 14
Terminal capacity (flexible with ferrule and plastic collar): 0.25 - 1.5 mm²
Terminal capacity (solid/flexible): 0.13 - 2.5 mm²
Suitable for tube mounting: Yes
Suitable for angle mounting: Yes
Suitable for AS interface: No
Connection type auxiliary circuit: Spring clamp connection
Suitable for M12 connector: No
Suitable for IO link: No
Suitable for floor mounting: Yes
Country of origin: Austria

Standards & Compliance

HS Code: 8531.90

Cross References

EAN 4015081677832
SAP 1000492330
Code 8818923

Product Documentation

Base 400mm Aluminium Tube, banjobolt (SL7-CB-T-400) — Specification Data Sheet (OEM)Download

Base 400mm Aluminium Tube, banjobolt (SL7-CB-T-400) — Specification sheet Download

Document preview: Base 400mm Aluminium Tube, banjobolt (SL7-CB-T-400) — Specification Data Sheet (OEM)

More from Eaton

Eaton

Eaton Rotary handle Lockable Red Low Type NZM2-XTVDVR-0

Eaton

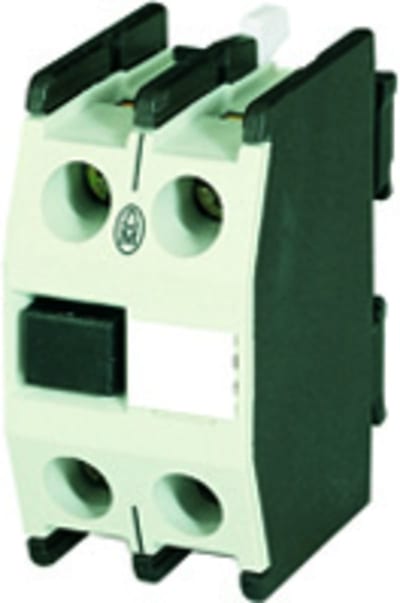

KONTAKTBL.DILM40-65A,1S+1TO (DILM150-XHI11)

Eaton

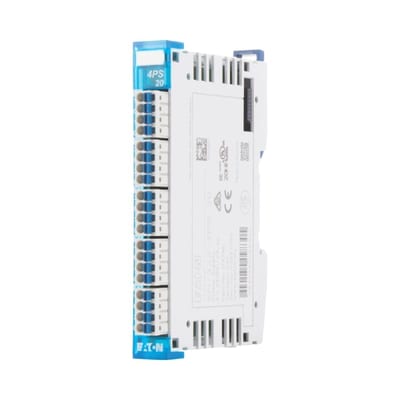

Power supply module; 4 x 24 V DC / 2 A

4543337

Eaton

Selector Switch (T0-3-8451/E)

Eaton

Switch 0-1 2P Front (T3-1-102/E)

Eaton

Unit breaker 25 A 2P C DC

FAZ-C25/2-DC

Eaton

variable-frequency drive DM1-34038NB-N20B-EM

Eaton

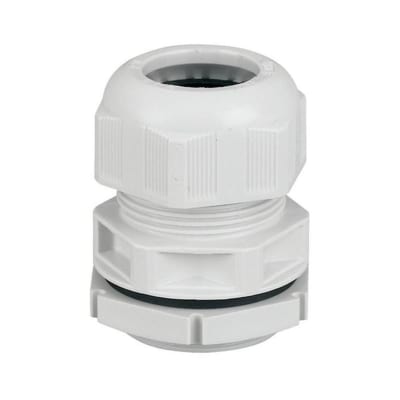

Nipple IP68 M63 (V-M63)
