Eaton

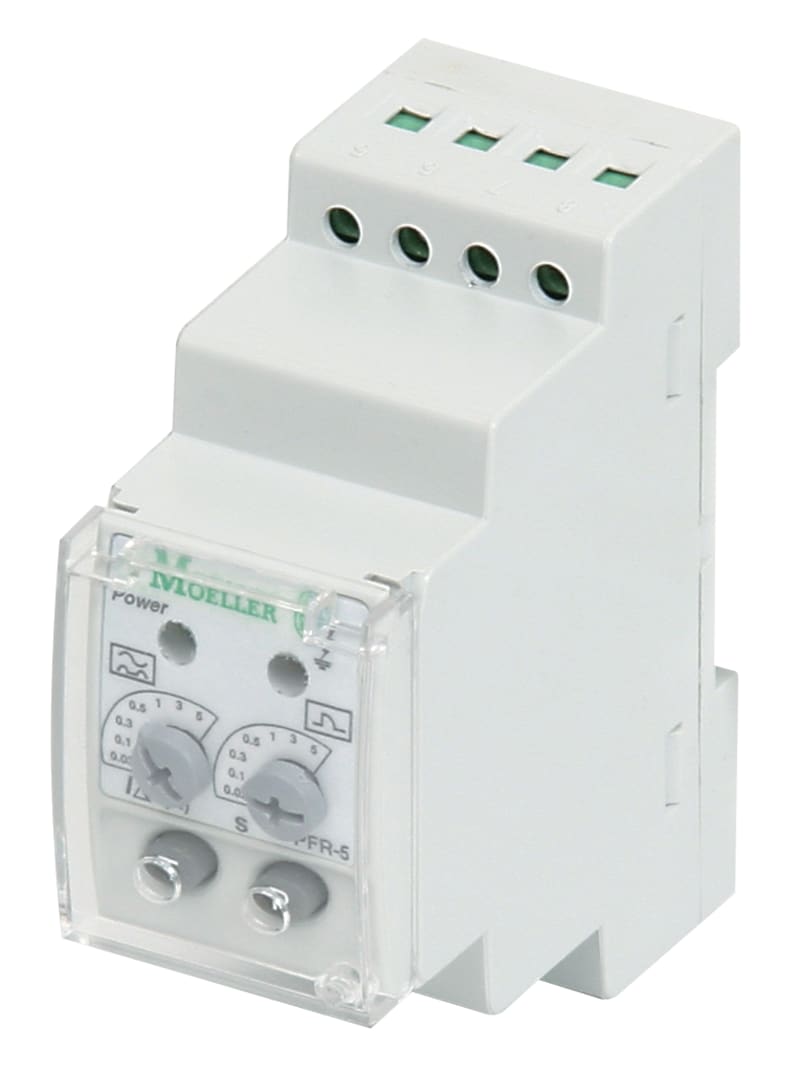

Earth-fault Relay 003-5A 0.02-5SEC
Part numberPFR-5EAN / GTIN4015082855574HS code8536.41
Control & Automation
Relays & Timers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton PFR-5 earth-fault relay 003-5A 0.02-5 s.
Technical Specifications
- Manufacturer part number (MPN)
- PFR-5
- EAN / GTIN
- 4015082855574
- Sales unit
- pcs
- Eaton catalogue number
- 285557
- Depth
- 80 mm
- Height
- 45 mm
- Width
- 95 mm
- Weight
- 0.192 kg
- Compliances
- IEC; RoHS conform
- Certifications
- IEC 1009; IEC 1008; IEC 755; IEC/EN 60947-2
- Functions
- Delay adjustable
- Features
- Sealable, setting buttons; 1 integrated changeover contact (relay contact)
- Frame
- 45 mm; NZM1/2/3/4
- Special features
- Adjustable fault current and delay time Fault current early warning by flashing, red LED Pulse-current sensitive Integrated auxiliary contact (1 C/O) Ring-type transformer must also be ordered not UL/CSA approved
- Type
- Accessory Residual current relays Voltage release
- Ambient operating temperature - max
- 50 °C
- Ambient operating temperature - min
- -10 °C
- Current rating of relay contact
- 6 A
- Delay time
- 0.02, 0.1, 0.3, 0.5, 1, 3, 5 ms
- Power consumption
- 3 W
- Power on-delay time - max
- 5000 ms
- Power on-delay time - min
- 5000 ms
- Rated control supply voltage (Us) at AC, 50 Hz - max
- 2
Standards & Compliance
- HS Code
- 8536.41
Cross References
- EAN 4015082855574
- SAP 1000013458
- Code 8483252
Product Documentation
Document preview: JORDFEILRELE 003-5A 0,02-5SEK (PFR-5) — Specification Data Sheet (OEM)
More from Eaton
Eaton

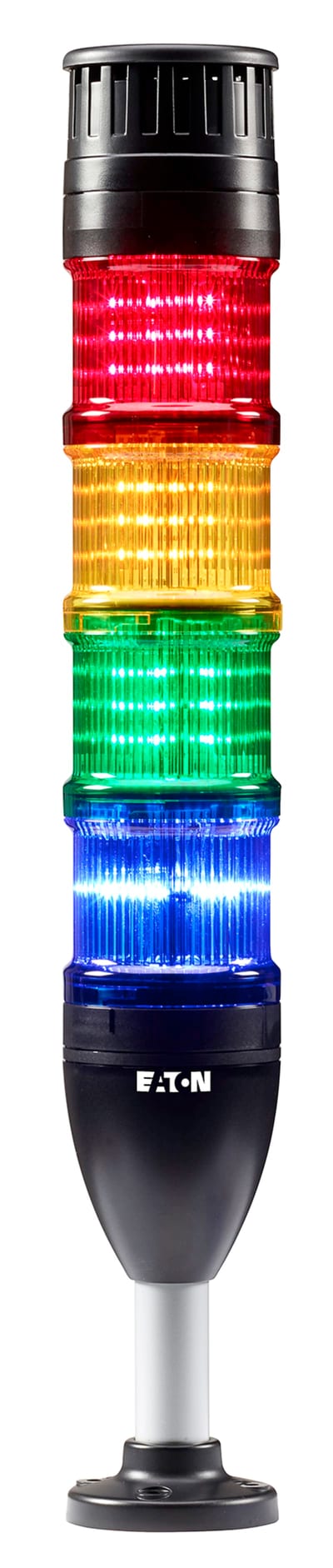

Complete Red/Yellow/Green 24V LED (SL4-100-L-RYG-24LED)
Eaton

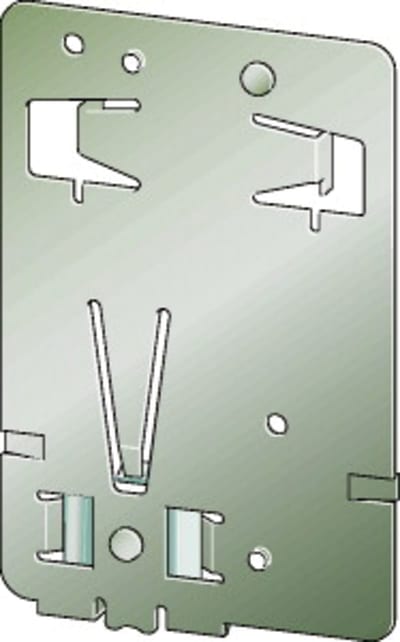

Mounting Plate DIN RAIL TS75
NZM2-XC75
Eaton

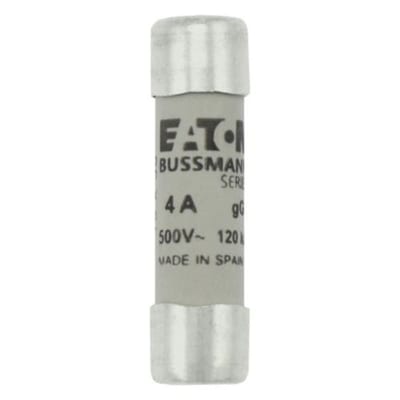

Cylindrical Fuse 10X38MM, 4A (C10G4)
Eaton

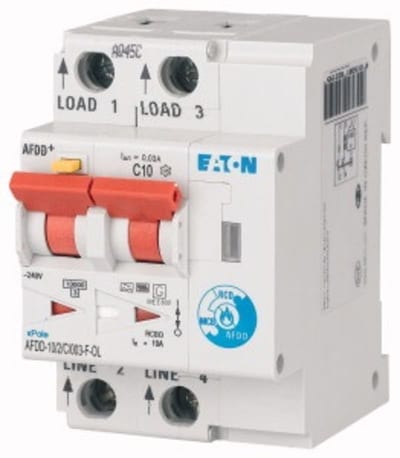

AFDD-32/2/C/003-F (187287)
