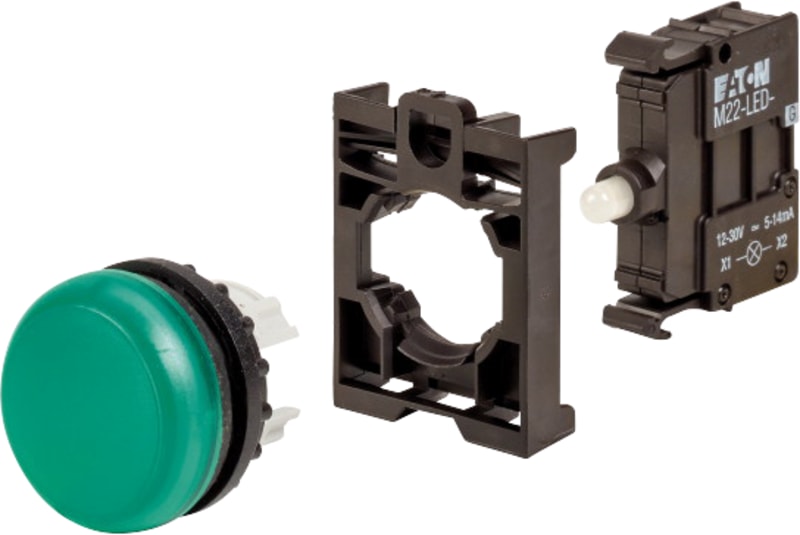

Eaton M22-L-G-LED-BVP Indicator Light, Front-Mount, Green LED, 12-30 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-L-G-LED-BVP (catalogue 110927) is a complete 22 mm indicator light with a green LED lens, chrome front ring and integrated 12 to 30 V LED element from the RMQ-Titan range. The front is rated IP67/IP69K and NEMA 4X/13, suitable for control panels exposed to washdown and industrial environments. Depth is 50 mm with a 22.5 mm mounting hole.
Technical Specifications
- Manufacturer part number (MPN)
- M22-L-G-LED-BVP
- EAN / GTIN
- 4015081104567
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 110927
- Depth
- 50 mm
- Height
- 80 mm
- Width
- 50 mm
- Weight
- 0.022 kg
- Compliances
- CE
- Bezel color
- Chrome
- Bezel material
- Other
- Fitted with
- Front ring
- Lens color
- Green
- Lens type
- Flat; Round
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Connection to SmartWire-DT
- No
- Static heat dissipation, non-current-dependent Pvs
- 0.45 W
- Degree of protection
- NEMA 4X, 13
- Degree of protection (front side)
- IP67/IP69K
- Opening diameter
- 22.5 mm
- Product category
- RMQ-Titan
- Hole diameter
- 22 mm
- Colour lens
- Green
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP67/IP69K
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Suitable for number of built-in signal lights
- 1
- Type of lens
- Flat
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015081104567
- SAP 1000639982
- Code 8591558
Product Documentation
More from Eaton
Eaton
Eaton FAZT-C25/4 Miniature Circuit Breaker — 4P, Type C, 25 A, 25 kA
Eaton

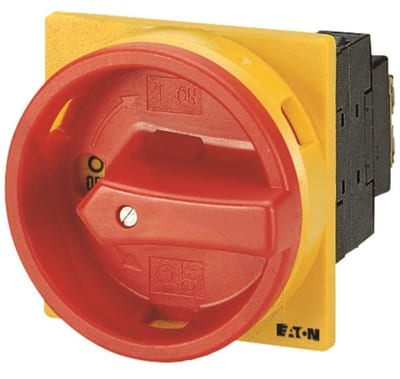

Safety Switch (P1-25/EA/SVB/HI11)
Eaton
Safety Switch (P1-32/EA/SVB/N/HI11)
Eaton

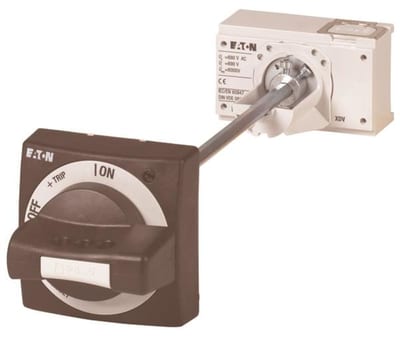

Eaton NZM2-XTVDV
Eaton

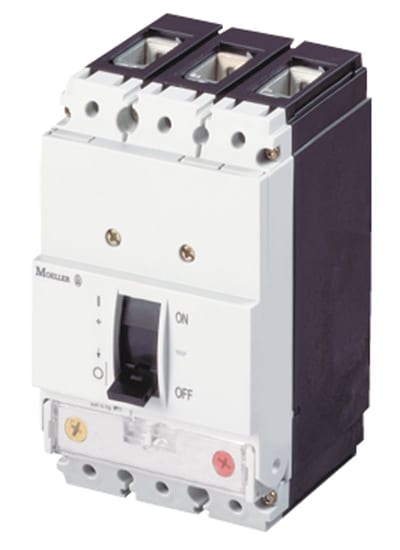

Eaton NZMN1-A125 Molded-Case Circuit Breaker 3-Pole 125A 50KA
Eaton
NH-00 690V aM 100A (100NHM00B-690)
Eaton
Rotary switch with light, Flat Front (M30C-FWLKV-G)
Eaton

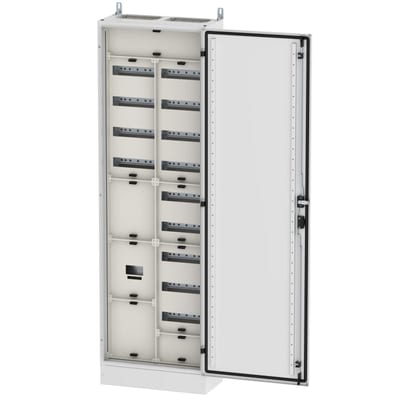

Floor-standing cabinet BF5 white H1800 B550 D270 xE
EP-501354
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
