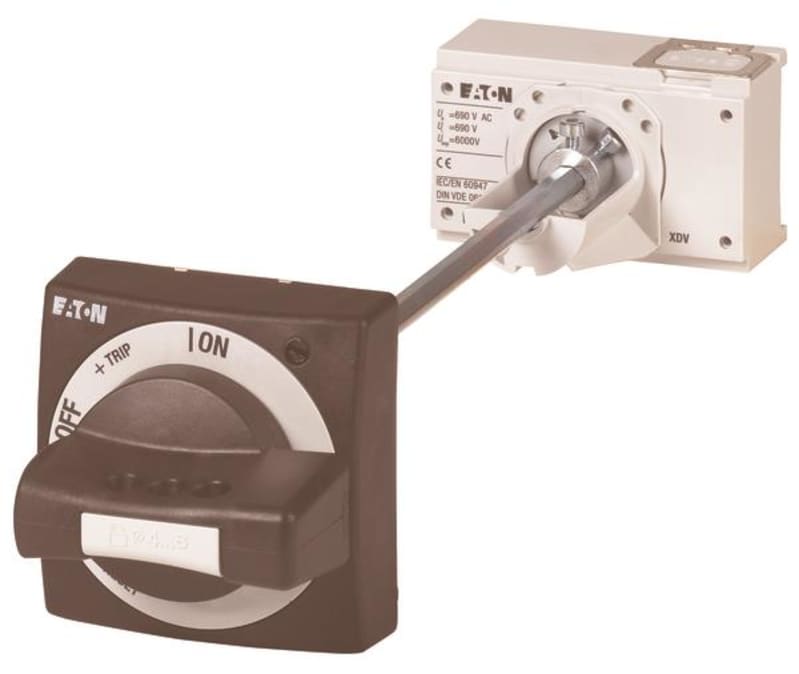

Eaton NZM2-XTVDV
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton NZM2-XTVDV is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 260174; Depth: 75 mm; Height: 190 mm; Width: 90 mm; Weight: 0.793 kg.
Technical Specifications
- Manufacturer part number (MPN)
- NZM2-XTVDV
- EAN / GTIN
- 4015082601744
- Sales unit
- pcs
- Eaton catalogue number
- 260174
- Depth
- 75 mm
- Height
- 190 mm
- Width
- 90 mm
- Weight
- 0.793 kg
- Compliances
- IEC; UL/CSA; RoHS conform
- Features
- Standard: black / gray; Lockable
- Fitted with
- Padlock
- Frame
- NZM2
- Special features
- Door coupling rotary handle for operating the switch through a closed control panel door External warning plate/designation label can be clipped on. Complete including rotary drive and coupling parts Extension shaft additionally required.
- Suitable for
- Switch disconnector; Power circuit breaker
- Type
- Accessory Door coupling rotary handle
- Used with
- NZM2(-4), PN2(-4), N(S)2(-4)
- Color
- Black
- Cover/door type
- Door interlock can be modified in the unlocked ON position; Door interlock not defeated in the locked OFF and ON positions; Door can be opened in OFF; Door interlock can be modified such that it can be defeated from the outside using a screwdriver
- Degree of protection / NEMA enclosure type
- IP66; 4X. 12
- Lock number
- Double lockable
- Locking facility
- Modifiable on handle in I position as well; With door interlock; Lockable on the handle on the switch using up to 3 padlocks
- Colour
- Black
- Lockable
- Yes
- Padlock locking
- Yes
- Suitable for emergency stop
- No
- With extension shaft
- No
- With restart blockage
- No
- Suitable for power circuit breaker
- Yes
- Suitable for switch disconnector
- Yes
- Degree of protection (NEMA)
- 4X, 12
- With key lock
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082601744
- SAP 1000289119
- Code 81159281
Product Documentation
