Eaton

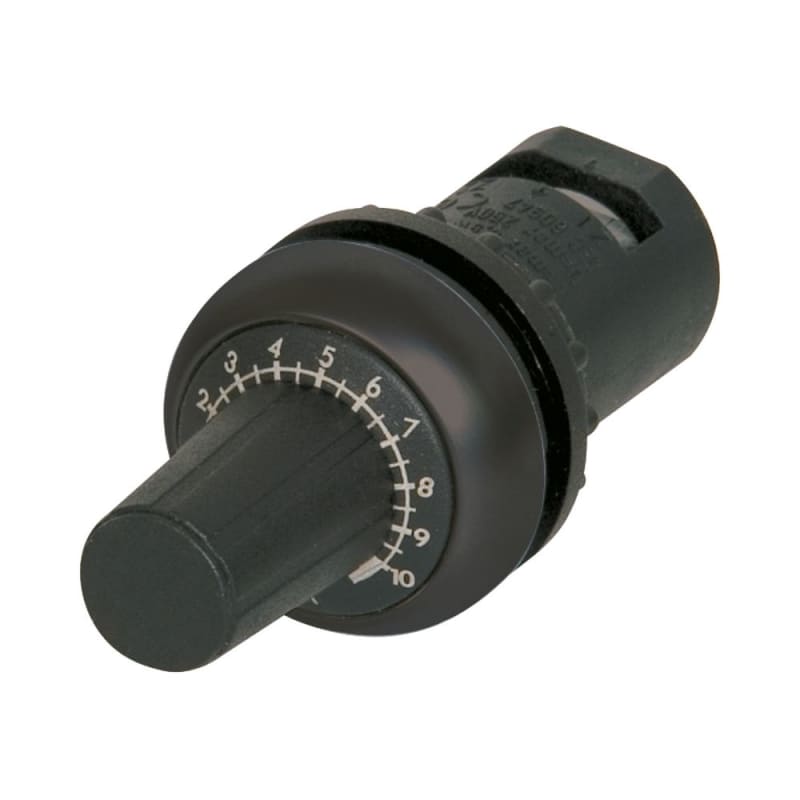

Potentiometer 10 KOHM, Black
Part numberM22S-R10KEAN / GTIN4015082322335HS code8533.29
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22S-R10K Potentiometer, 10k, front.
Technical Specifications
- Manufacturer part number (MPN)
- M22S-R10K
- EAN / GTIN
- 4015082322335
- Sales unit
- pcs
- Eaton catalogue number
- 232233
- Depth
- 70 mm
- Height
- 29 mm
- Width
- 29 mm
- Weight
- 0.034 kg
- Compliances
- RoHS Compliant
- Certifications
- CSA File No.: 012528; CSA Class No.: 3211-03; IEC/EN 60947; VDE 0660; IEC/EN 60947-5-1; CSA-22.2 No. 14-05; UL; UL File No.: E29184; CE; UL 508; UL Category Control No.: NKCR; CSA
- Bezel color
- Black
- Design
- Classical
- Electric connection type
- Screw connection
- Fitted with
- 3 individual screw terminals
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- No
- Static heat dissipation, non-current-dependent Pvs
- 0.5 W
- Power consumption
- 0.5 W
- Rated insulation voltage (Ui)
- 250 V
- Rated power
- 0.5 VA
- Resistance
- 10000 Ohm
- Degree of protection
- IP66; NEMA Other
- Lifespan, mechanical
- 25,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Overvoltage category
- III
- Pollution degree
- 3
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Type
- Potentiometer
- Used with
- Modular pushbutton
- Terminal capacity (solid)
- 0.5 - 1.5 mm²
- Terminal capacity (stranded)
- 0.5 - 1.5 mm²
- Tightening torque
- 0.5 Nm, Screw terminals
- Hole diameter
- 22 mm
- Type of electric connection
- Screw connection
- Number of revolutions
- 1
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 8533.29
Cross References
- EAN 4015082322335
- SAP 1000044155
- Code 8781842
Product Documentation
Document preview: POTENSIOMETER 10 KOHM, BLACK (M22S-R10K) — Specification Data Sheet (OEM)
More from Eaton
Eaton

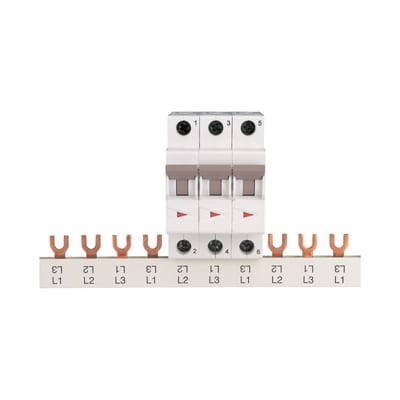

BUSBAR 2-Phase 1P+HJ.CONNECTOR
Z-GV-16/1P+N+HS-T
Eaton

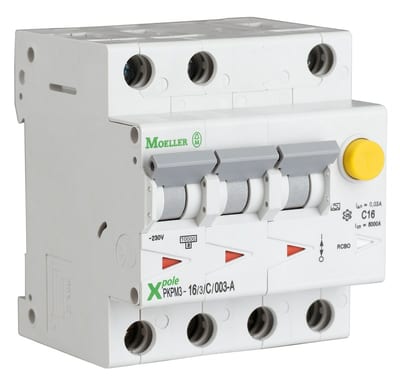

Residual current circuit breaker with overcurrent 10A 3P C 100MAA (PKPM3-10/3/C/01-A)
Eaton

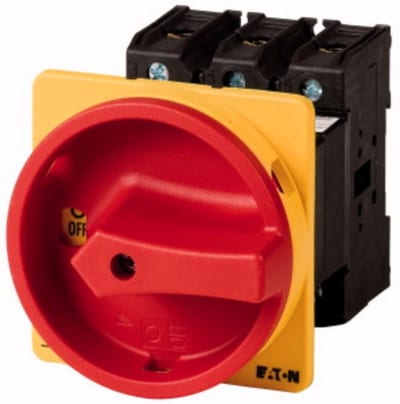

Safety Switch (P3-100/V/SVB/N/HI11)
Eaton
Eaton Ellipse ECO wall-mount kit
ELWALL
Eaton

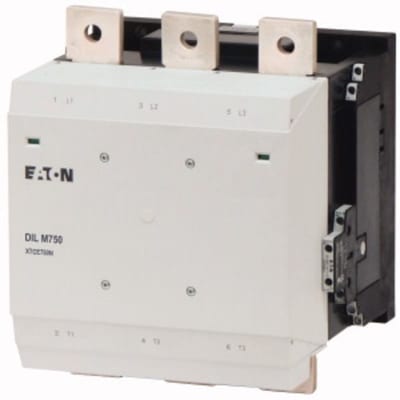

Contactor DILM750/22(RA250)
Eaton

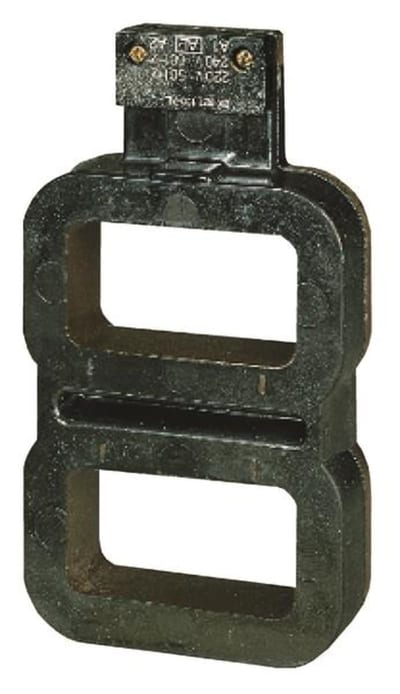

Replacement coil, DILM1000-XSP/E (DILM1000-XSP/E(RA250))
Eaton

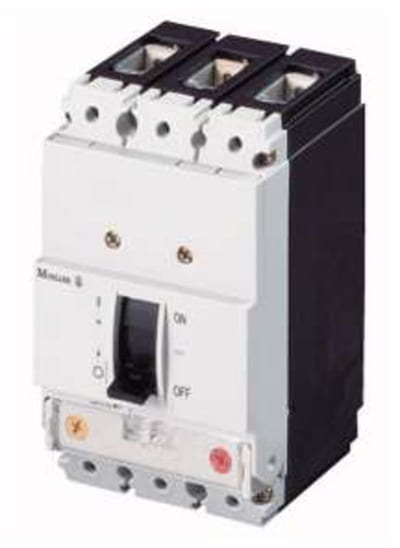

Eaton NZMH1-A63 Molded-Case Circuit Breaker 3-Pole 63A 100KA
