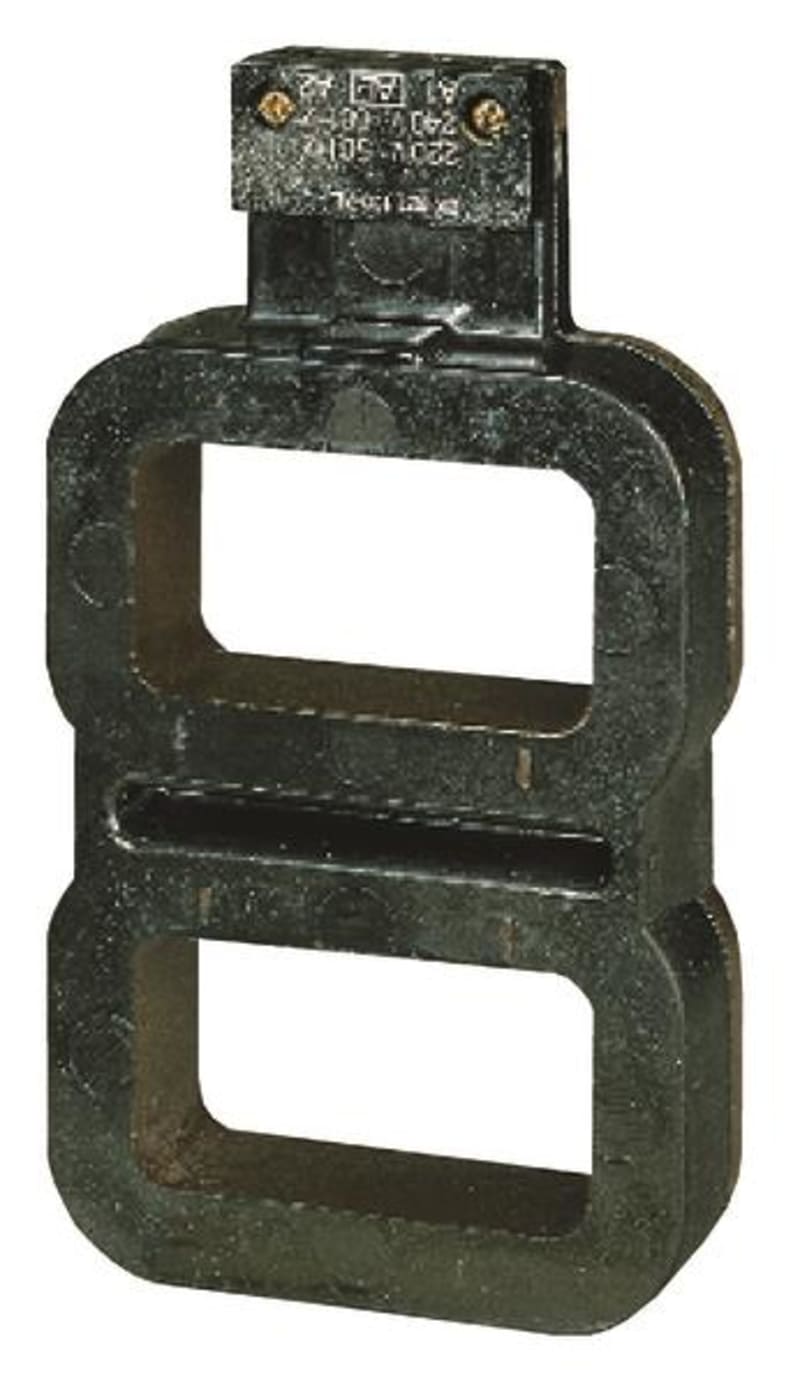

Replacement coil, DILM1000-XSP/E (DILM1000-XSP/E(RA250))
Part numberDILM1000-XSP/E(RA250)EAN / GTIN4015082891459HS code8538.90
Electrical Components
Contactors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton DILM1000-XSP/E(RA250) Replacement coil, RA 250: Used with: DILM580, DILM650, DILM750, DILM820, DILM1000.
Technical Specifications
- Manufacturer part number (MPN)
- DILM1000-XSP/E(RA250)
- EAN / GTIN
- 4015082891459
- Sales unit
- pcs
- Eaton catalogue number
- 289145
- Depth
- 100 mm
- Height
- 175 mm
- Width
- 135 mm
- Weight
- 1.31 kg
- Certifications
- CSA File No.: 012528; UL; UL 508; CSA-C22.2 No. 14-05; UL File No.: E29096; IEC/EN 60947-4-1; CE; CSA; CSA Class No.: 3211-04; UL Category Control No.: NLDX
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -40 °C
- Accessories
- Individual coils
- Product category
- Accessories
- Voltage type
- AC/DC
- Rated control supply voltage (Us) at AC, 50 Hz - max
- 250 V
- Rated control supply voltage (Us) at AC, 50 Hz - min
- 110 V
- Rated control supply voltage (Us) at AC, 60 Hz - max
- 250 V
- Rated control supply voltage (Us) at AC, 60 Hz - min
- 110 V
- Rated control supply voltage (Us) at DC - max
- 250 V
- Rated control supply voltage (Us) at DC - min
- 110 V
- Rated control supply voltage AC 50 Hz
- 110–250 V
- Rated control supply voltage AC 60 Hz
- 110–250 V
- Rated control supply voltage DC
- 110–250 V
- Voltage type for actuating
- AC/DC
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082891459
- SAP 1200563122
- Code 82903783
Product Documentation
Document preview: Replacementsspole, DILM1000-XSP/E (DILM1000-XSP/E(RA250)) — Specification Data Sheet (OEM)
