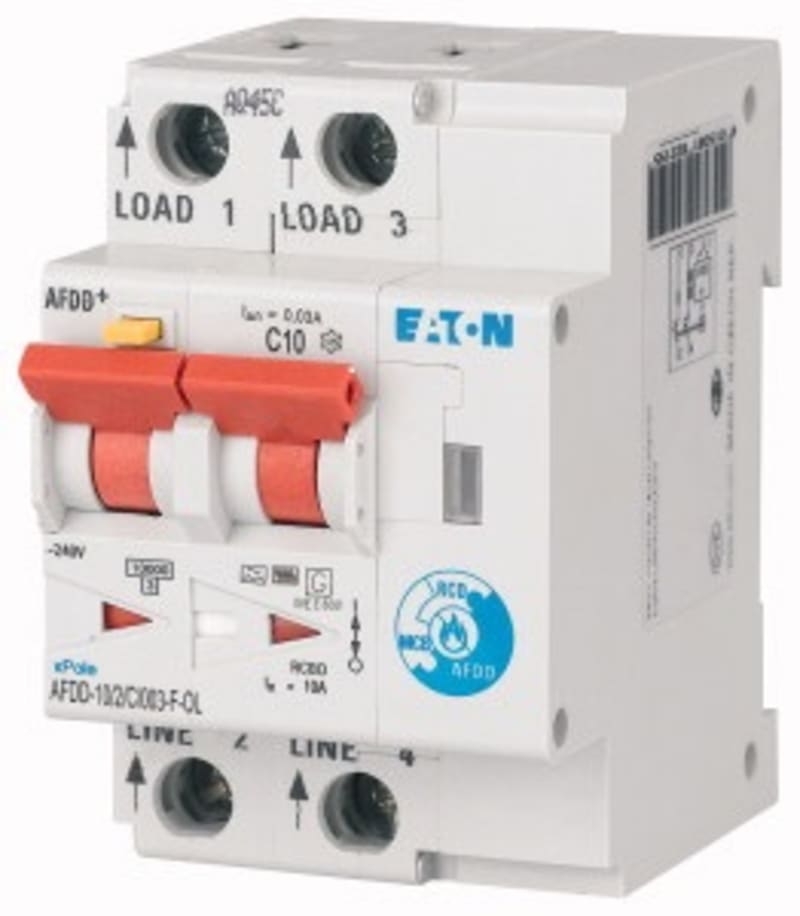

AFDD-32/2/C/003-F (187287)

Eaton 187287 AFDD-32/2/C/003-F.

Manufacturer part number (MPN)

187287

EAN / GTIN

4015081823369

Sales unit

pcs

Package quantity

40 pcs

Eaton catalogue number

187287

Depth

80 mm

Height

73 mm

Width

52.5 mm

Weight

0.277 kg

Compliances

RoHS conform

Certifications

CE

Additional equipment attached at delivery

Other

Current limiting class

3

Types conform to

IEC/EN 61009; IEC/EN 62606

Application

Switchgear for residential and commercial applications

Basic function

Arc fault circuit interrupter

Fault current rating

0.03 A

Number of poles

Two-pole

Number of poles (protected)

2

Number of poles (total)

2

Product application

Switchgear for residential and commercial applications

Product range

AFDD

Rated current

32 A

Rated current of product range

10-40 Ampere

Release characteristic

C

Sensitivity type

Type F; Pulse-current sensitive up to 1 kHz and ≤10 mA smooth DC current

Tripping characteristic

C

Type

AFDD+

Ambient operating temperature - max

40 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

9 W

Rated operational current for specified heat dissipation (In)

32 A

Control voltage type auxiliary equipment

AC/DC

Current test marks

As per inscription

Frequency rating

50 Hz

Impulse withstand current

Surge-proof, 3 kA

Leakage current type

F; Other

Lifespan, electrical

4000 operations

Pollution degree

2

Rated impulse withstand voltage (Uimp)

4

Rated short-circuit breaking capacity

6 Kilo Ampere

Rated short-circuit breaking capacity (EN 61009-1)

6 kA

Rated short-circuit breaking capacity (EN 61009)

6 kA

Rated switching capacity (IEC/EN 61009)

6 kA

Rated voltage auxiliary device

230 V

Test circuit AC

170 - 264 Voltage AC

Tripping

Short time-delayed

Voltage rating

230 V

Frequency

50 Hz

Built-in depth

67 mm

Built-in width

54 mm

Climatic proofing

IEC/EN 61009

Contact position indicator

red / green

Degree of protection

IP20

Degree of protection (built in)

IP40

Device height

80 mm

Frame

45 mm

Lifespan, mechanical

20000 operations

Mounting style

Tri-stable slide catch - enables removal from existing busbar combination

Permissible Storage and Trans Temp. Max

60 °C

Terminal protection

Busbar tag shroud as per VBG4, ÖVE-EN 6

Terminals (top and bottom)

Twin-purpose

Thickness of busbar material

0.8 - 2 Square Millimeter

Width In Number Of Modular Spacings

3

Permissible Storage and Trans Temp. Min

-35 °C

Rated voltage

230 V

Rated fault current

0.03 A

Rated short-circuit breaking capacity according to EN 61009

6 kA

Concurrently switching neutral conductor

No

Overvoltage category

3

Mounting method

DIN rail

Voltage type

AC

Rated insulation voltage Ui

440 V

Surge current capacity

3 kA

Power loss

8.7 W

Number of protected poles

2

Connectable conductor cross section solid-core

1–25 mm²

Connectable conductor cross section multi-wired

1–25 mm²

With interlocking device

No

Ambient temperature during operating

-25–40 °C

Anti-nuisance tripping version

No

Rated impulse withstand voltage Uimp

4 kV

Disconnection characteristic

Short-time delayed

Country of origin

Czechia

HS Code

8536.20

• EAN 4015081823369
• SAP 1200625370
• Code 83032667
