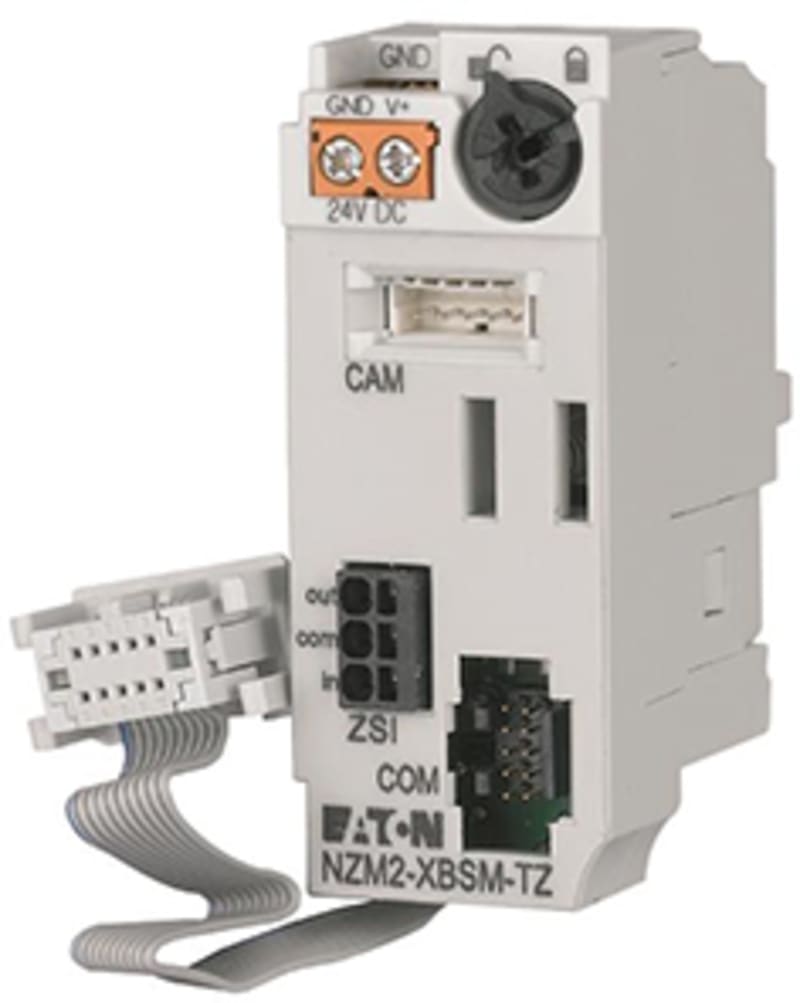

Eaton NZM2-XBSM-TZ
Part numberNZM2-XBSM-TZEAN / GTIN4015081878277HS code8538.90
Electrical Components
Circuit Breaker Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton NZM2-XBSM-TZ is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 189832; Depth: 76 mm; Height: 65 mm; Width: 68 mm; Weight: 0.021 kg.
Technical Specifications
- Manufacturer part number (MPN)
- NZM2-XBSM-TZ
- EAN / GTIN
- 4015081878277
- Sales unit
- pcs
- Eaton catalogue number
- 189832
- Depth
- 76 mm
- Height
- 65 mm
- Width
- 68 mm
- Weight
- 0.021 kg
- Compliances
- IEC; UL/CSA; RoHS conform
- Accessory/spare part type
- Communication and measuring function; Interface module; Accessory
- Frame
- NZM2
- Type
- Interface module
- Used with
- NZM2(-4)-PX…-TZ
- Control voltage tolerance
- +/- 20%
- Current consumption - max
- 100 mA
- Voltage rating
- 24 V DC
- Degree of protection
- Installation in the switch
- Strip length
- 5 mm (supply connection), 6 mm (digital input)
- Terminal capacity (solid cable)
- 0.2 mm² - 1.5 mm² (1x) at supply connection; 0.2 mm² - 0.5 mm² (1x) at logical zone selectivity (ZSI) connection
- Tightening torque
- ≤ 0.25 Nm; ≥ 0.22 Nm
- Type of accessory/spare part
- Communication and measuring function
- Accessory
- Yes
- Spare part
- No
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081878277
- SAP 1200600970
- Code 82989380
