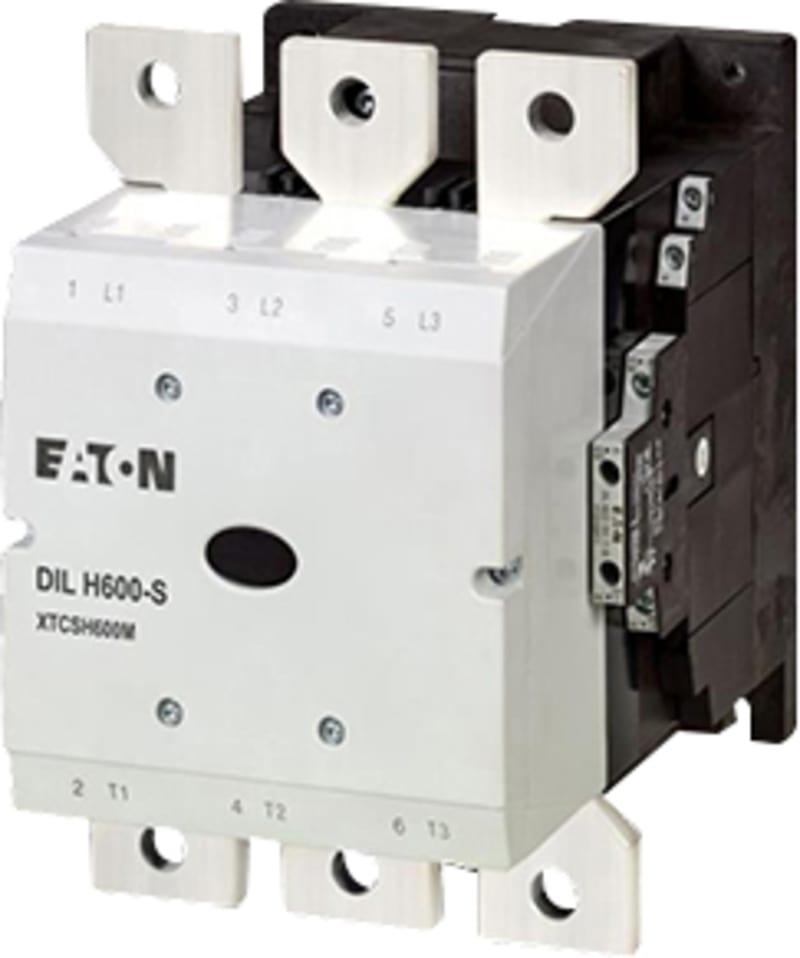

Contactor,DILH600/22(RAC500) (197906)

Eaton 197906 Contactor, Ith =Ie: 850 A,RAC 500: 250 - 500 V 40 - 60 Hz/250 - 700 V DC, AC + DC drift, Screw Terminal.

Manufacturer part number (MPN)

197906

EAN / GTIN

4015081954254

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

197906

Depth

216 mm

Height

237 mm

Width

160 mm

Weight

8.85 kg

Conventional thermal current Ith (3-pole, enclosed)

600 A

Conventional thermal current Ith at 40°C (3-pole, open)

850 A

Conventional thermal current Ith at 50°C (3-pole, open)

760 A

Conventional thermal current Ith at 55°C (3-pole, open)

725 A

Conventional thermal current Ith at 60°C (3-pole, open)

695 A

Conventional thermal current Ith of main contacts (1-pole, open)

1738 A

Altitude

Max. 2000 m

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-40 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Number of auxiliary contacts (normally closed contacts)

2

Number of auxiliary contacts (normally open contacts)

2

Equipment heat dissipation, current-dependent Pvid

0 W

Heat dissipation capacity Pdiss

0 W

Rated operational current for specified heat dissipation (In)

650 A

Static heat dissipation, non-current-dependent Pvs

11.7 W

Rated breaking capacity at 1000 V

1575 A

Rated breaking capacity at 220/230 V

4800 A

Rated breaking capacity at 380/400 V

4800 A

Rated breaking capacity at 500 V

4800 A

Rated breaking capacity at 660/690 V

2000 A

Rated insulation voltage (Ui)

1000 V

Rated making capacity up to 440 V (cos phi to IEC/EN 60947)

6000 A

Rated operational voltage (Ue) at AC - max

1000 V

Safe isolation

1000 V AC, Between coil and contacts, According to EN 61140

Accessories

Fitting options auxiliary contacts: on the side: 2 x DILM820-XHI11(V)-SI; 2 x DILM820-XHI11-SA

Application

Mains contactors for resistive loads from 1000 A

Connection

Screw terminals

Degree of protection

IP00

Electromagnetic compatibility

Designed for operation in industrial environments. Its use in residential environments may cause radio-frequency interference, requiring additional noise suppression.

Fitted with

Suppressor circuit in actuating electronics

Lifespan, mechanical

3,000,000 Operations (DC operated); 3,000,000 Operations (AC operated)

Operating frequency

1000 mechanical Operations/h (DC operated); 1000 mechanical Operations/h (AC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Rated impulse withstand voltage (Uimp)

12000 V

Resistance

500 mΩ (Admissible transitional contact resistance - of the external control circuit device when actuating A11)

Shock resistance

10 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 8 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Signal level

5 V - 15 V, PLC signal level (A3 - A4) to IEC/EN 61131-2 (type 2), Magnet systems

Utilization category

AC-1: Non-inductive or slightly inductive loads, resistance furnaces

Voltage type

AC/DC

Drop-out voltage

DC operated: 0.2 x US max - 0.6 US min

DC operated; AC operated

0.2 x US max - 0.6 x US min, AC operated

Duty factor

100 %

Pick-up voltage

0.7 - 1.15 V DC x Us; 0.7 - 1.15 V AC x Us

Power consumption

Control transformer with uk ≤ 7%

Power consumption, pick-up

50 Hz

630 VA, Pull-in power, Coil in a cold state and 1.0 x Us

Power consumption, pick-up

60 Hz

630 VA, Pull-in power, Coil in a cold state and 1.0 x Us

Power consumption, sealing

50 Hz

3.3 W, Coil in a cold state and 1.0 x Us

Power consumption, sealing

60 Hz

3.3 W, Coil in a cold state and 1.0 x Us

Rated control supply voltage (Us) at AC

50 Hz - max

500 V

Rated control supply voltage (Us) at AC

50 Hz - min

250 V

Rated control supply voltage (Us) at AC

60 Hz - max

500 V

Rated control supply voltage (Us) at AC

60 Hz - min

250 V

Rated control supply voltage (Us) at DC - max

700 V

Rated control supply voltage (Us) at DC - min

250 V

Switching time (AC operated, make contacts, closing delay) - max

60 ms

Switching time (AC operated, make contacts, opening delay) - max

50 ms

Switching capacity (auxiliary contacts, general use)

10 A, 600 V AC, (UL/CSA); 1 A, 250 V DC, (UL/CSA)

Switching capacity (auxiliary contacts, pilot duty)

A600, AC operated (UL/CSA); P300, DC operated (UL/CSA)

Switching capacity (main contacts, general use)

700 A, Maximum motor rating (UL/CSA)

Screw size

M10, Terminal screw; M3.5, Terminal screw

Screwdriver size

0.8 x 5.5/1 x 6 mm, Terminal screw, Control circuit cables, Standard screwdriver; 2, Terminal screw, Pozidriv screwdriver

Stripping length (control circuit cable)

10 mm

Terminal capacity (busbar)

50 mm width, Main connection

Terminal capacity (flexible with cable lug)

50 - 240 mm²

Terminal capacity (flexible with ferrule)

2 x (0.75 - 2.5) mm²; 1 x (0.75 - 2.5) mm²

Terminal capacity (solid)

1 x (0.75 - 2.5) mm²; 2 x (0.75 - 2.5) mm²

Terminal capacity (solid/stranded AWG)

18 - 14

Terminal capacity (stranded with cable lug)

70 - 240 mm²

Tightening torque

1.2 Nm, Screw terminals; 24 Nm, Main cable connection screw/bolt

Width across flats

16 mm

HS Code

8536.90
