Eaton

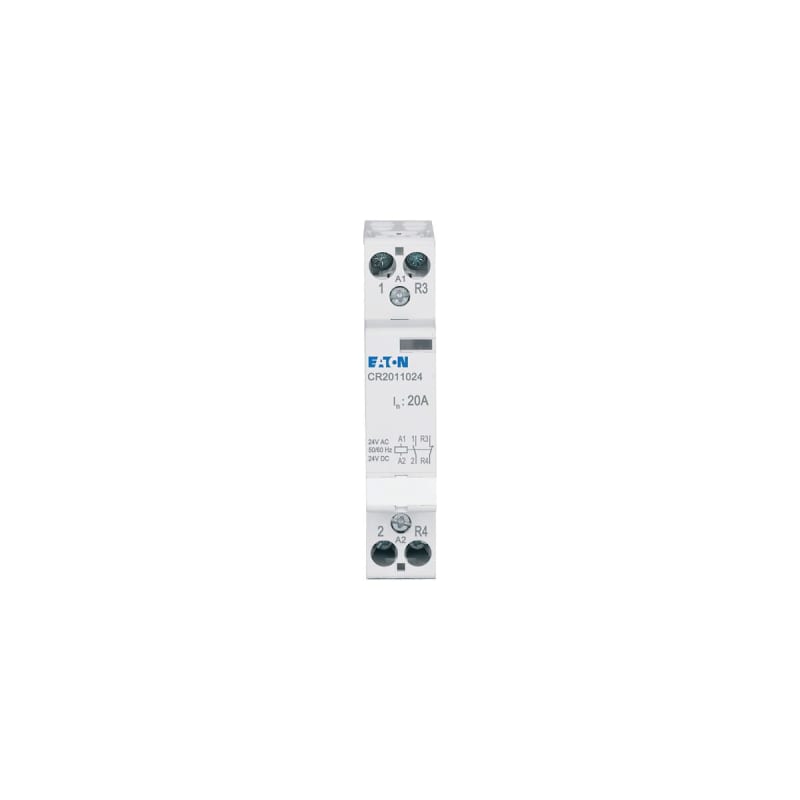

Installation Relay 20A 24V AC/DC 1NO+1NC
Part numberCR2011024EAN / GTIN8711426315822HS code8536.49
Electrical Components
Contactors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Installation Relay 20A 24V AC/DC 1NO+1NC (part number CR2011024) is listed under Electrical Components / Contactors. Sales unit: pcs; Eaton catalogue number: 135171; Depth: 75 mm; Height: 80 mm; Width: 18 mm; Weight: 0.14 kg.
Technical Specifications
- Manufacturer part number (MPN)
- CR2011024
- EAN / GTIN
- 8711426315822
- Sales unit
- pcs
- Eaton catalogue number
- 135171
- Depth
- 75 mm
- Height
- 80 mm
- Width
- 18 mm
- Weight
- 0.14 kg
- Compliances
- RoHS conform
- Features
- Additional equipment possible
- Amperage Rating
- 20 A
- Equipment heat dissipation, current-dependent
- 2.1 W
- Heat dissipation per pole, current-dependent
- 1.7 W
- Rated operational current for specified heat dissipation (In)
- 20 A
- Incandescent lamp load - max
- 1950 W
- Load fluorescent lamp - max
- 910 VA
- Load fluorescent lamp (duo circuit) - max
- 1160 VA
- Load fluorescent lamp (parallel compensated) - max
- 232 VA
- Rated operating voltage (Ue) - max
- 400 V
- Rated operating voltage (Ue) - min
- 400 V
- Voltage rating (excitation) - max
- 26.4 V
- Voltage rating (excitation) - min
- 20.4 V
- Voltage type
- AC/DC
- Built-in depth
- 60 mm
- Degree of protection
- IP20
- Number of contacts (normally closed contacts)
- 1
- Number of contacts (normally open contacts)
- 1
- Number of modular spacings
- 1
- Utility category
- 1
- Utilization category (according to EN IEC 60947-4-1)
- AC-1
- Contact configuration
- 1 NO + 1 NC
- Utilization category according to EN IEC 60947-4-1
- AC-1
- Rated operating voltage
- 400 V
- Rated operation current
- 20 A
- Rated excitation voltage
- 20.4–26.4 V
- Number of contacts as normally open contact
- 1
- Number of contacts as normally closed contact
- 1
- Max. incandescent lamp load
- 1950 W
- Max. load fluorescent lamp
- 910 VA
- Slider for hand switch
- No
- Width in number of modular spacings
- 1
- Additional equipment possible
- Yes
- With day/night function
- No
- Hum-free
- No
- Country of origin
- Slovenia
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 8711426315822
- SAP 1200803090
- Code 83978373
Product Documentation
Document preview: Installation Relay 20A 24V AC/DC 1NO+1NC (CR2011024) — Specification Data Sheet (OEM)
