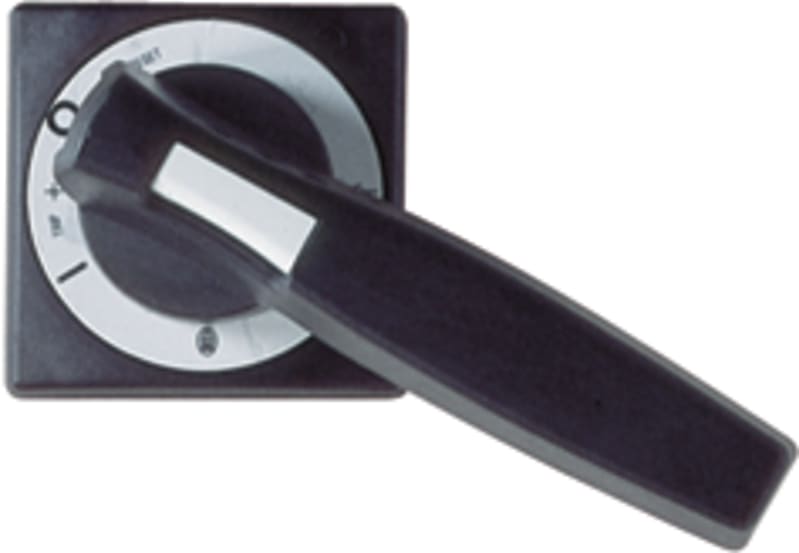

Eaton NZM4-XTVD
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton NZM4-XTVD is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 266614; Depth: 230 mm; Height: 130 mm; Width: 230 mm; Weight: 1.785 kg.
Technical Specifications
- Manufacturer part number (MPN)
- NZM4-XTVD
- EAN / GTIN
- 4015082664145
- Sales unit
- pcs
- Eaton catalogue number
- 266614
- Depth
- 230 mm
- Height
- 130 mm
- Width
- 230 mm
- Weight
- 1.785 kg
- Compliances
- IEC; UL/CSA; RoHS conform
- Certifications
- CSA (Class No. 1437-01); UL489; UL listed; CE marking; IEC60947; UL (File No. E140305); CSA (File No. 22086); UL (Category Control Number DIHS); CSA certified; CSA-C22.2 No. 5-09
- Features
- Lockable; Standard: black / gray
- Fitted with
- Padlock
- Frame
- NZM4
- Special features
- Door coupling rotary handle for operating the switch through a closed control panel door External warning plate/designation label can be clipped on. Complete including rotary drive and coupling parts Extension shaft additionally required.
- Suitable for
- Power circuit breaker; Switch disconnector
- Type
- Accessory Door coupling rotary handle
- Used with
- NZM4(-4), N(S)4(-4)
- Color
- Black
- Cover/door type
- Door interlock can be modified in the unlocked ON position; Door interlock not defeated in the locked OFF and ON positions; Door can be opened in OFF; Door interlock can be modified such that it can be defeated from the outside using a screwdriver
- Degree of protection / NEMA enclosure type
- IP66; 4X. 12
- Lock number
- Single lockable
- Locking facility
- Lockable on the 0 position on the handle using up to 3 padlocks; With door interlock
- Colour
- Black
- Lockable
- Yes
- Padlock locking
- Yes
- Suitable for emergency stop
- No
- With extension shaft
- No
- With restart blockage
- No
- Suitable for power circuit breaker
- Yes
- Suitable for switch disconnector
- Yes
- Degree of protection (NEMA)
- 4X, 12
- With key lock
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082664145
- SAP 1000069679
- Code 8559277
