Eaton

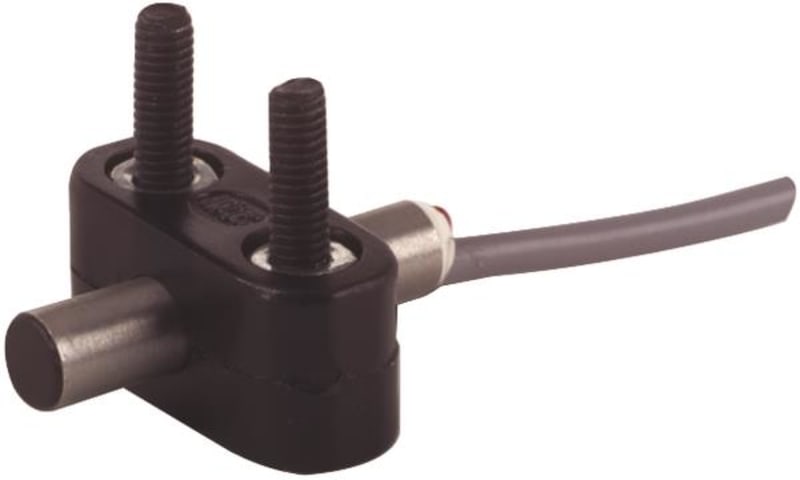

Area switch E57EAL6T111EP
Part numberE57EAL6T111EPEAN / GTIN4015081330379HS code8544.42
Sensors & Instrumentation
Inductive Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton E57EAL6T111EP Area switch, E57 Miniatyrserien, 1 N/O, 3-wire, 10 - 30 V DC, 6,5 mm, Sn= 2 mm.
Technical Specifications
- Manufacturer part number (MPN)
- E57EAL6T111EP
- EAN / GTIN
- 4015081330379
- HS code
- 8544.42
- Sales unit
- pcs
- Eaton catalogue number
- 136244
- Depth
- 165.1 mm
- Height
- 12.7 mm
- Width
- 139.7 mm
- Weight
- 0.14 kg
- Certifications
- CE; IEC/EN 60947-5
- Type
- Inductive sensor
- Electric connection type
- Cable
- Enclosure material finishing
- Other
- Actuation type
- Metallic Target
- Enclosure material
- Metal
- Enclosure type
- Cylinder plain
- Category (EN 954-1)
- B
- Explosion safety category for dust
- None
- Explosion safety category for gas
- None
- Safety performance level (EN ISO 13849-1)
- None
- SIL (IEC 61508)
- None
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Diameter sensor
- 6 mm
- Number of contact energized outputs with signalling function
- 0
- Number of contacts (normally open contacts)
- 1
- Number of outputs (protected contact energized)
- 0
- Number of outputs (protected semiconductor)
- 0
- Number of outputs (semiconductor with signaling function)
- 1
- Operational current (Ib) in the switched state at 24 V DC
- 10 A
- Functions
- Short-circuit protection
- Voltage type
- DC
- Mounting method
- Non-flush mounting
- Material
- Stainless steel
- Connection type
- 2 m connection cable; 3-wire
- Installation type
- Not flat
- Degree of protection
- IP67; NEMA 6P
- Interface type
- None
- LED indicator
- Status indication of Switching state: Red LED
- Switch function type
- Normally open contact
- Load current
- Max. 200 mA (Ie)
- Residual current
- 0.01 mA (through the load in the blocked state at 230 V AC and 24 V DC)
- Shock resistance
- 30 g, Mechanical, Shock duration 11 ms
- Switching frequency
- 2000 Hz
- Voltage rating - max
- 30 V
- Product category
- E57 Miniatur Series
- Switching output type
- PNP
- Temperature drift of sn
- 10 %
- Rated control supply voltage (Us) at DC - max
- 30 V
- Rated control supply voltage (Us) at DC - min
- 10 V
- Rated switching distance (Sn) - max
- 2 mm
- Repeatability
- 1 %
- Sensor length
- 45 mm
- Supply voltage - max
- 30 V
- Supply voltage - min
- 10 V
- Switching hysteresis of Sn
- 15 %
- Voltage drop (Ud)
- 1.5 V
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4015081330379
- SAP 1200304193
- Code 82285336
Product Documentation
Document preview: Area switch, — Specification Data Sheet (OEM)
More from Eaton
Eaton

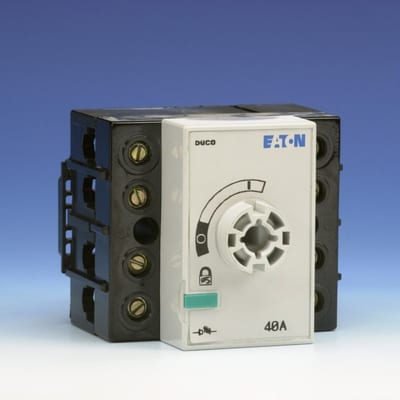

Switch-disconnector,DCM-40/1-SK+HC
Eaton

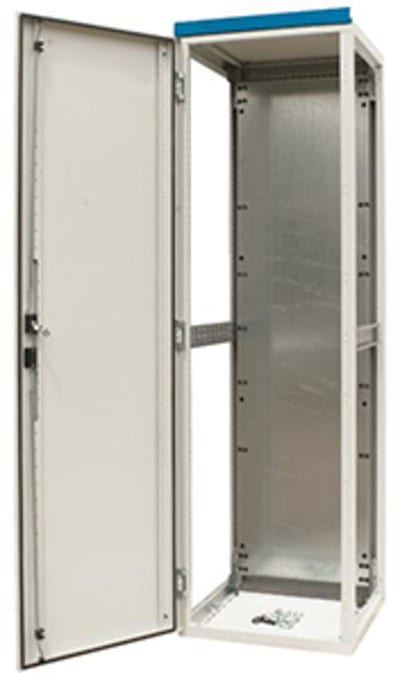

Cabinet H×W×D=2000X1000X400MM (XVTL-MP/BX/IC-10/4/20)
Eaton

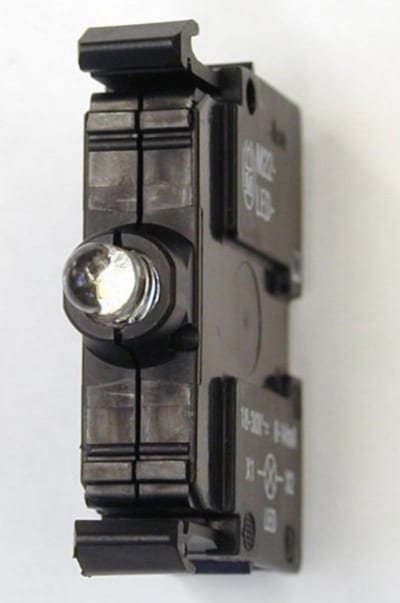

LED element, RMQ, Blue
M22-CLED230-B
Eaton

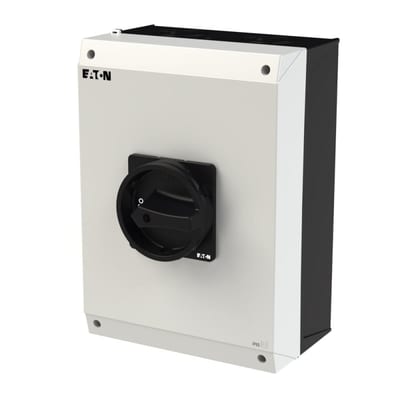

P3 Main switch, 80 A,4 pole, Form I5/SVB (1414091)
Eaton

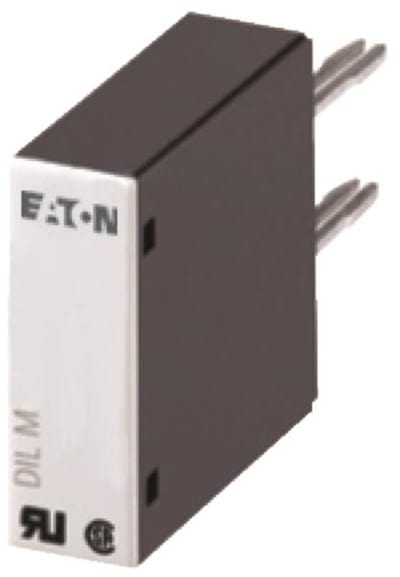

Varistor Attenuator DILM32-XSPV240
Eaton

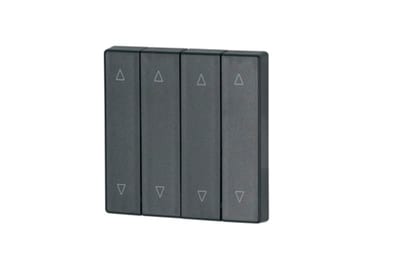

Eaton 4-Gang Rocker Anthracite 55x55 mm On/Neutral
147624
Eaton

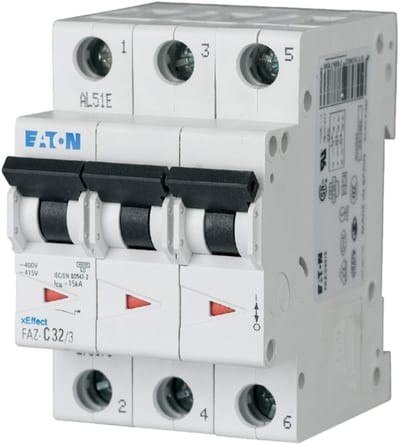

Eaton FAZ-Z1/3 Miniature Circuit Breaker — 3P, Type Z, 1 A, 15 kA
Eaton

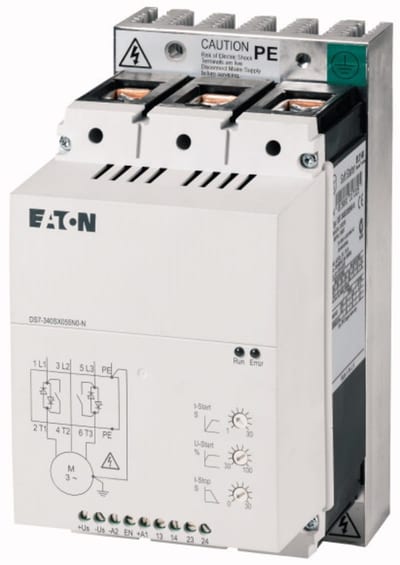

Soft starter DS7,24 VAC/DC,55A
