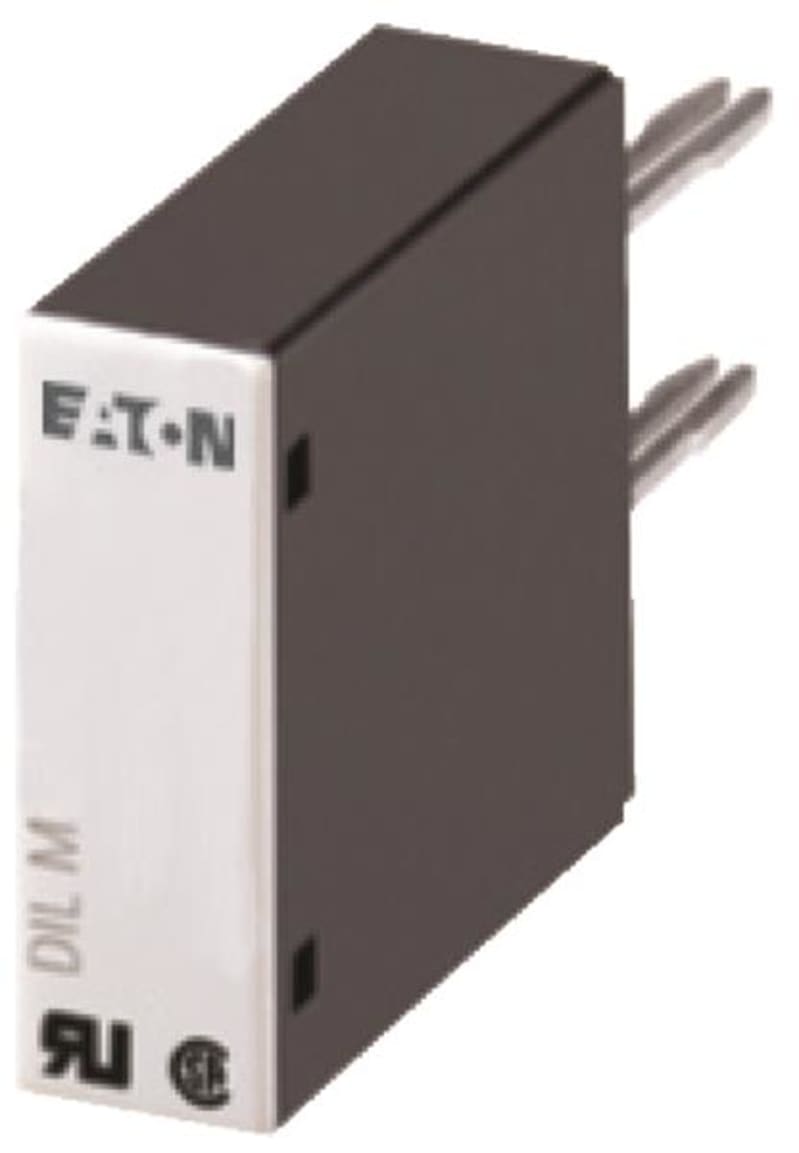

Varistor Attenuator DILM32-XSPV240
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton DILM32-XSPV240 Varistor attenuator, 130 - 240 AC V, Used with: DILM17 - DILM32, DILMP32 - DILMP45.
Technical Specifications
- Manufacturer part number (MPN)
- DILM32-XSPV240
- EAN / GTIN
- 4015082812140
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 281214
- Depth
- 43 mm
- Height
- 25 mm
- Width
- 9 mm
- Weight
- 0.005 kg
- Certifications
- UL File No.: E29184; IEC/EN 60947-4-1; CSA File No.: 256465; UL Category Control No.: NKCR2
- NKCR8; CSA; CSA Class No.
- 3211-07; UL 508; UL Recognized; CE; CSA-C22.2 No. 14-05
- Catalog Notes
- With DC operated contactors and with DILM115 and DILM150 the suppressor is integrated.
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -25 °C
- Functions
- Varistor (voltage-sensitive resistor)
- Product category
- Accessories
- Used with
- DILL… and DILM32-XSPV240
- Voltage type
- AC
- Rated control supply voltage (Us) at AC
- 50 Hz - max
- 240 V
- Rated control supply voltage (Us) at AC
- 50 Hz - min
- 130 V
- Rated control supply voltage (Us) at AC
- 60 Hz - max
- 240 V
- Rated control supply voltage (Us) at AC
- 60 Hz - min
- 130 V
- Rated control supply voltage AC 50 Hz
- 130–240 V
- Rated control supply voltage AC 60 Hz
- 130–240 V
- With LED indication
- No
- Operating voltage AC 50 Hz
- 130–240 V
- Operating voltage AC 60 Hz
- 130–240 V
- Voltage type for actuating
- AC
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082812140
- SAP 1000289184
- Code 896162
Product Documentation
More from Eaton
Eaton
Eaton 4-Gang Rocker Anthracite 55x55 mm On/Neutral
147624
Eaton
Eaton FAZ-Z1/3 Miniature Circuit Breaker — 3P, Type Z, 1 A, 15 kA
Eaton
Soft starter DS7,24 VAC/DC,55A
DS7-340SX055N0-N
Eaton
Eaton Contactor 3-Pole 45 kW, 230 V AC (DILMT95(230V50HZ/240V60HZ))
Eaton

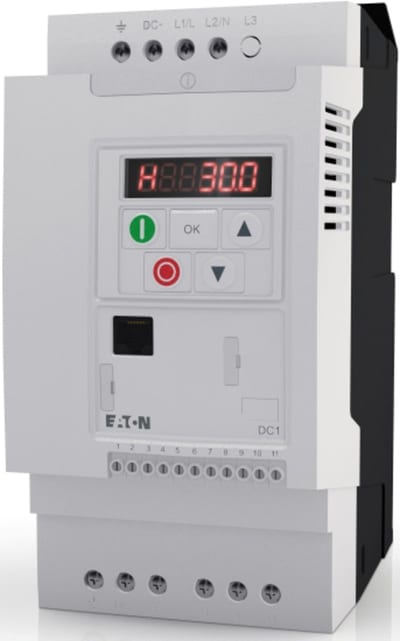

DC1 Variable-frequency drive 2,2kW (DC1-32011NB-A20N)
Eaton

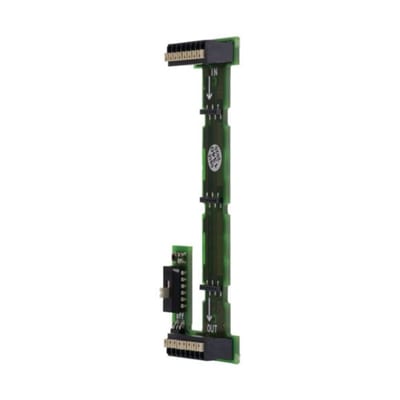

Pr.short Darw for M22-IN 3M.POS
M22-SWD-I3-LP01
Eaton

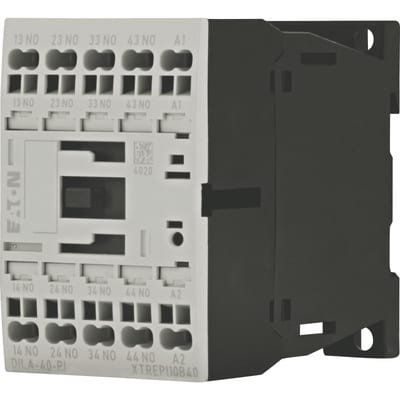

Contactor,DILA-40(24V50/60HZ)-PI
