Eaton

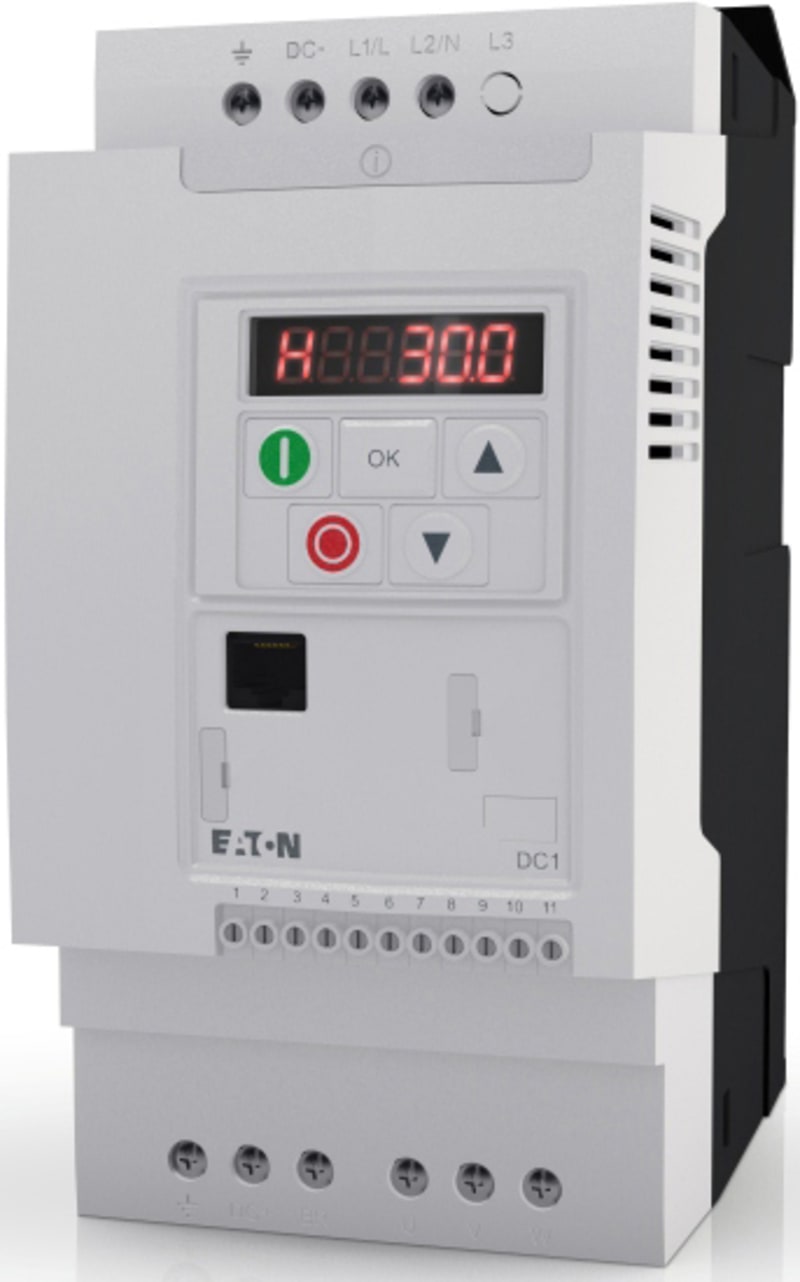

DC1 Variable-frequency drive 2,2kW (DC1-32011NB-A20N)
Part numberDC1-32011NB-A20NEAN / GTIN4015081658893HS code8504.40
Drives & Controllers
Variable Frequency Drives
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton DC1 Variable-frequency drive 2,2kW (DC1-32011NB-A20N) is listed under Drives & Controllers / Variable Frequency Drives. HS code: 8504.40; Sales unit: pcs; Power: 2.2 kW; Width: 107 mm; Height: 231 mm; Depth: 152 mm.
Technical Specifications
- Manufacturer part number (MPN)
- DC1-32011NB-A20N
- EAN / GTIN
- 4015081658893
- HS code
- 8504.40
- Sales unit
- pcs
- Power
- 2.2 kW
- Width
- 107 mm
- Height
- 231 mm
- Depth
- 152 mm
- Power consumption
- 90.2 W
- With control element
- Yes
- Number of digital inputs
- 4
- Number of digital outputs
- 1
- Number of analogue inputs
- 2
- Number of analogue outputs
- 1
- Supporting protocol for LON
- No
- Number of HW-interfaces RS-485
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- Yes
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- Degree of protection (IP)
- IP20
- With PC connection
- Yes
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 200–240 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- Yes
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- Yes
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- Yes
- Max. output frequency
- 500 Hz
- Max. output at linear load at rated output voltage
- 2.2 kW
- Max. output at quadratic load at rated output voltage
- 2.2 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 10 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Max. output voltage
- 250 V
- Nominal output current I2N
- 10.5 A
- Supporting protocol for BACnet
- No
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4015081658893
- SAP 1200123020
- Code 81987465
Product Documentation
Document preview: DC1 Variable-frequency drive 2,2kW (DC1-32011NB-A20N) — Specification sheet
More from Eaton
Eaton
Pr.short Darw for M22-IN 3M.POS
M22-SWD-I3-LP01
Eaton
Contactor,DILA-40(24V50/60HZ)-PI
Eaton
Eaton FAZT-D1/3 Miniature Circuit Breaker — 3P, Type D, 1 A, 25 kA
Eaton

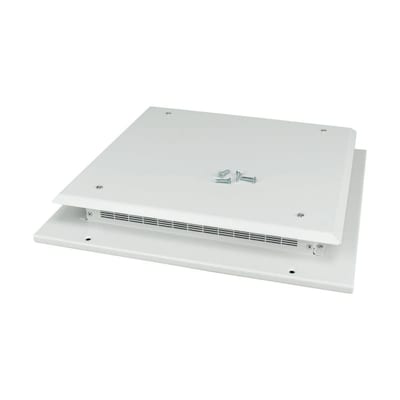

Top plate IP31 xE Light (XLST365)
Eaton

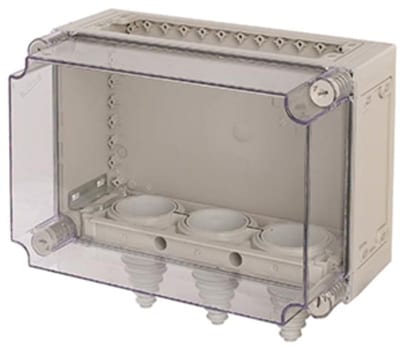

Enclosures H×W×D=250X375X225MM (KST43-200)
Eaton

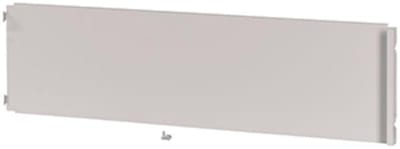

Front plate xE Light (XLMFGC258)
Eaton

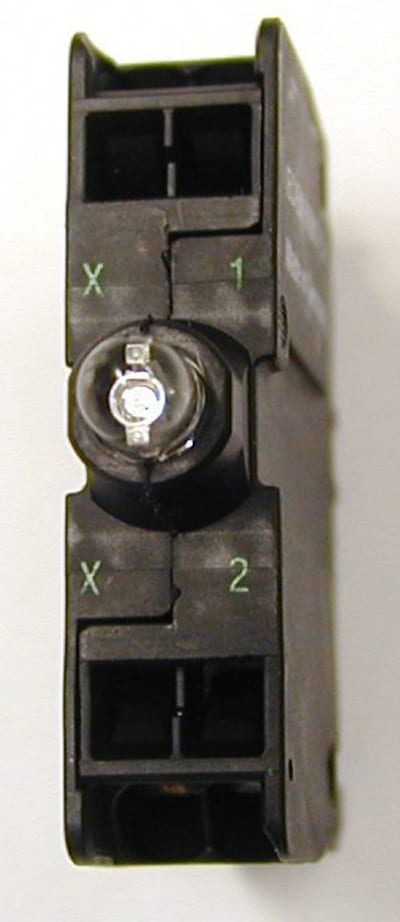

LED-ELEM., 12-30V, Bottom,GREEN
M22-CLEDC-G
Eaton

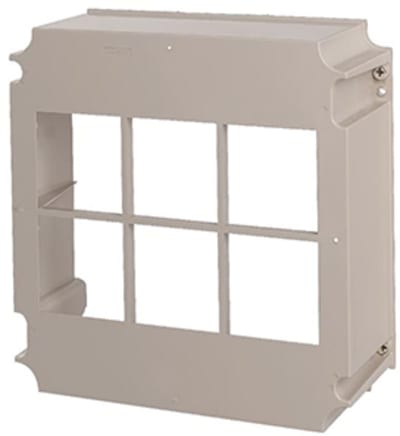

Meter jacket for CI44-200
