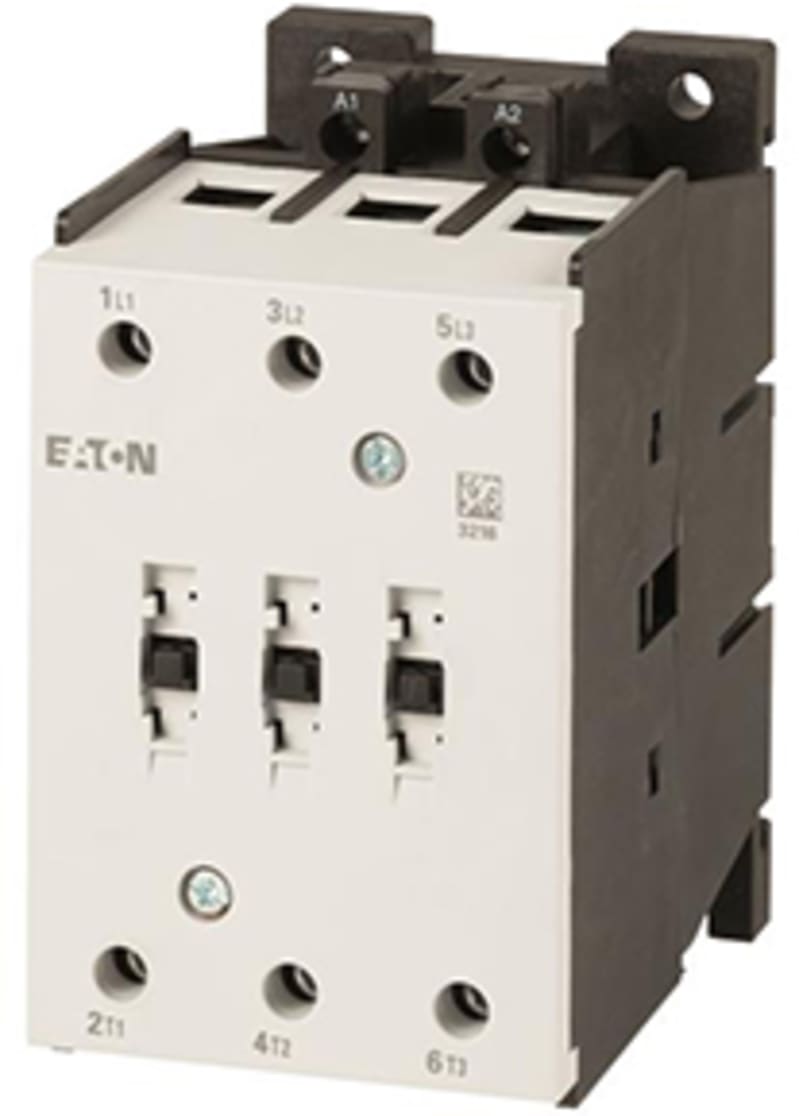

Eaton Contactor 3-Pole 45 kW, 230 V AC (DILMT95(230V50HZ/240V60HZ))

Eaton DILMT95(230V50HZ/240V60HZ) contactor, 3-pole, 380 V 400 V: 45 kW, 230 V 50 Hz, 240 V 60 Hz, AC operated, screw terminals.

Manufacturer part number (MPN)

DILMT95(230V50HZ/240V60HZ)

EAN / GTIN

4015081911899

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

190966

Depth

124.5 mm

Height

111.5 mm

Width

72 mm

Weight

1.26 kg

Certifications

EN 60335-1; GB14048; IEC/EN 60947

Catalog Notes

Not suitable for motors with efficiency class IE3.

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Rated breaking capacity at 380/400 V

760 A

Rated insulation voltage (Ui)

690 V

Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V

120 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

95 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

95 A

Rated operational power at AC-3, 380/400 V, 50 Hz

45 kW

Rated operational power at AC-3, 690 V, 50 Hz

45 kW

Rated operational voltage (Ue) at AC - max

690 V

Number of poles

Three-pole

Application

Contactors for Motors

Connection to SmartWire-DT

No

Degree of protection

IP20

Frame size

FS4

Lifespan, mechanical

5,000,000 Operations (AC operated)

Operating frequency

3600 mechanical Operations/h (AC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Rated impulse withstand voltage (Uimp)

6000 V AC

Used with

DILMT95-XHI11-SR and DILT-XHI01(10)

Utilization category

AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-4: Normal AC induction motors: starting, plugging, reversing, inching

Voltage type

AC

Pick-up voltage

0.85 - 1.1 V AC x Uc

Power consumption, pick-up, 50 Hz

0 VA, Dual-frequency coil in a cold state and 1.0 x Us; 350 VA, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, pick-up, 60 Hz

0 VA, Dual-frequency coil in a cold state and 1.0 x Us; 350 VA, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, sealing, 50 Hz

22 W, Dual-frequency coil in a cold state and 1.0 x Us; 9 VA, Coil in a cold state and 1.0 x Us; 0 W, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, sealing, 60 Hz

0 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz; 8 W, Dual-frequency coil in a cold state and 1.0 x Us; 26 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz; 0 W, Dual-frequency coil in a cold state and 1.0 x Us

Rated control supply voltage (Us) at AC, 50 Hz - max

230 V

Rated control supply voltage (Us) at AC, 50 Hz - min

230 V

Rated control supply voltage (Us) at AC, 60 Hz - max

240 V

Rated control supply voltage (Us) at AC, 60 Hz - min

240 V

Screw size

M8, Terminal screw; M3.5, Terminal screw; 4 mm AF, Hexagon socket-head spanner, Terminal screw

Screwdriver size

2, Terminal screw, Pozidriv screwdriver

Stripping length (main cable)

16 mm

Terminal capacity (solid)

2 x (0.75 - 2.5) mm²; 1 x (0.75 - 2.5) mm²; 1 x (6 - 50) mm², Main cables; 2 x (6 - 25) mm², Main cables

Terminal capacity (stranded)

1 x (6 - 50) mm²; 2 x (6 - 25) mm², Main cables

Tightening torque

1.2 Nm, Screw terminals; 6 Nm, Screw terminals

HS Code

8536.90
