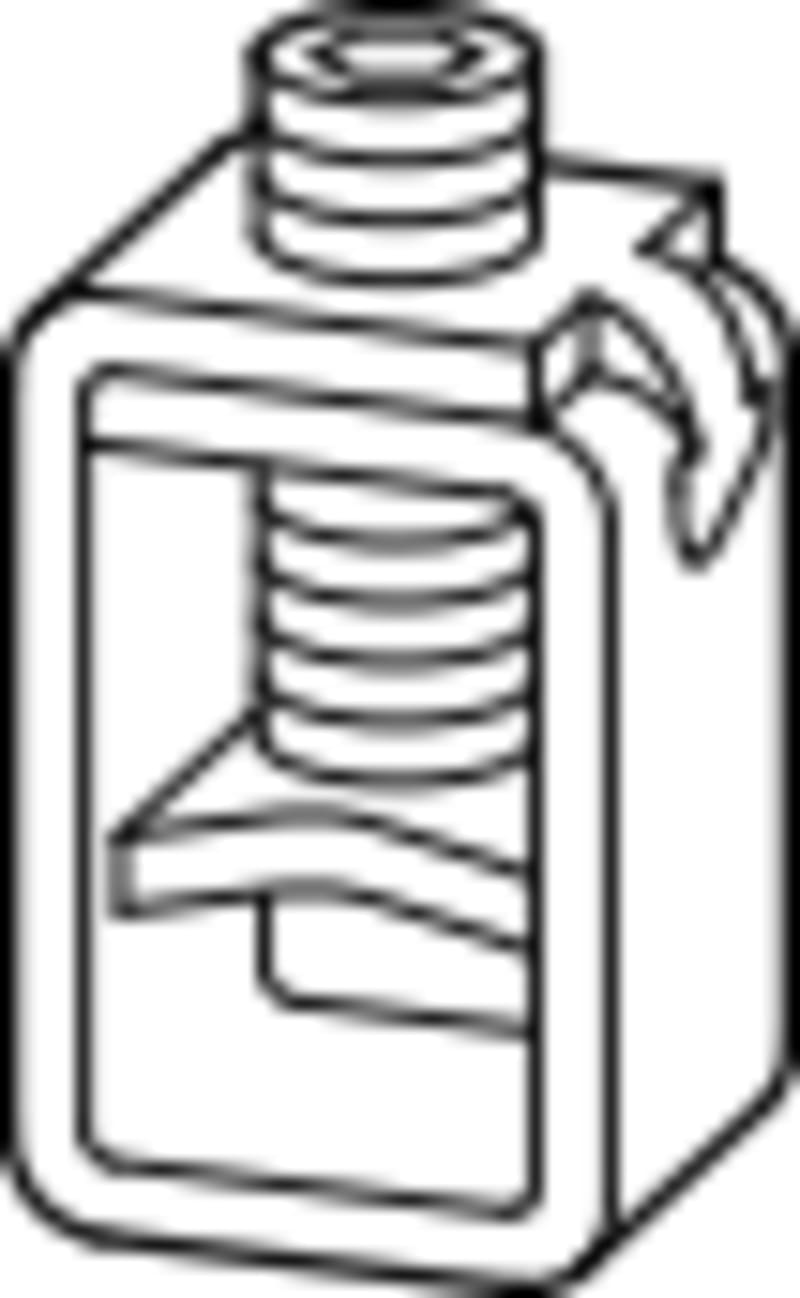

Box Terminal SET A 3 PCS.

Eaton NZM3-XKC Box Terminal Set A 3 Pcs.

Manufacturer part number (MPN)

NZM3-XKC

EAN / GTIN

4015082600426

Sales unit

pcs

Eaton catalogue number

260042

Depth

120.5 mm

Height

275 mm

Width

140 mm

Weight

0.41 kg

Compliances

IEC; UL/CSA; RoHS conform

Certifications

CSA (File No. 22086); UL (Category Control Number DIHS); CSA (Class No. 1432-01); UL489; CSA-C22.2 No. 5-09; CSA certified; IEC60947; UL listed; UL (File No. E31593); CE marking

Model

Other

Amperage Rating

≦ 630 A

Frame

NZM3

Number of poles

Three-pole

Suitable for

Copper cable; Three-pole

Type

Accessory Box terminal

Used with

NZM3(-4), PN3(-4), N(S)3(-4)

Terminal capacity (copper strip)

Max. 500 A: 6 segments of 16 mm x 0.8 mm - 10 segments of 24 mm x 1 mm or 11 segments of 21 mm x 1 mm; 630 A: 10 segments of 24 mm x 1 mm + 5 segments of 24 mm x 1 mm or 8 segments of 24 mm x 1 mm (2x)

Terminal capacity (stranded cable)

35 mm² - 240 mm² (1x); 2 - 500 AWG/kcmil (1x); 25 mm² - 120 mm² (2x); 4 - 250 AWG/kcmil (2x)

Suitable for number of poles

3

Country of origin

Romania

HS Code

8538.90

• EAN 4015082600426
• SAP 1000064565
• Code 8902526
