Eaton

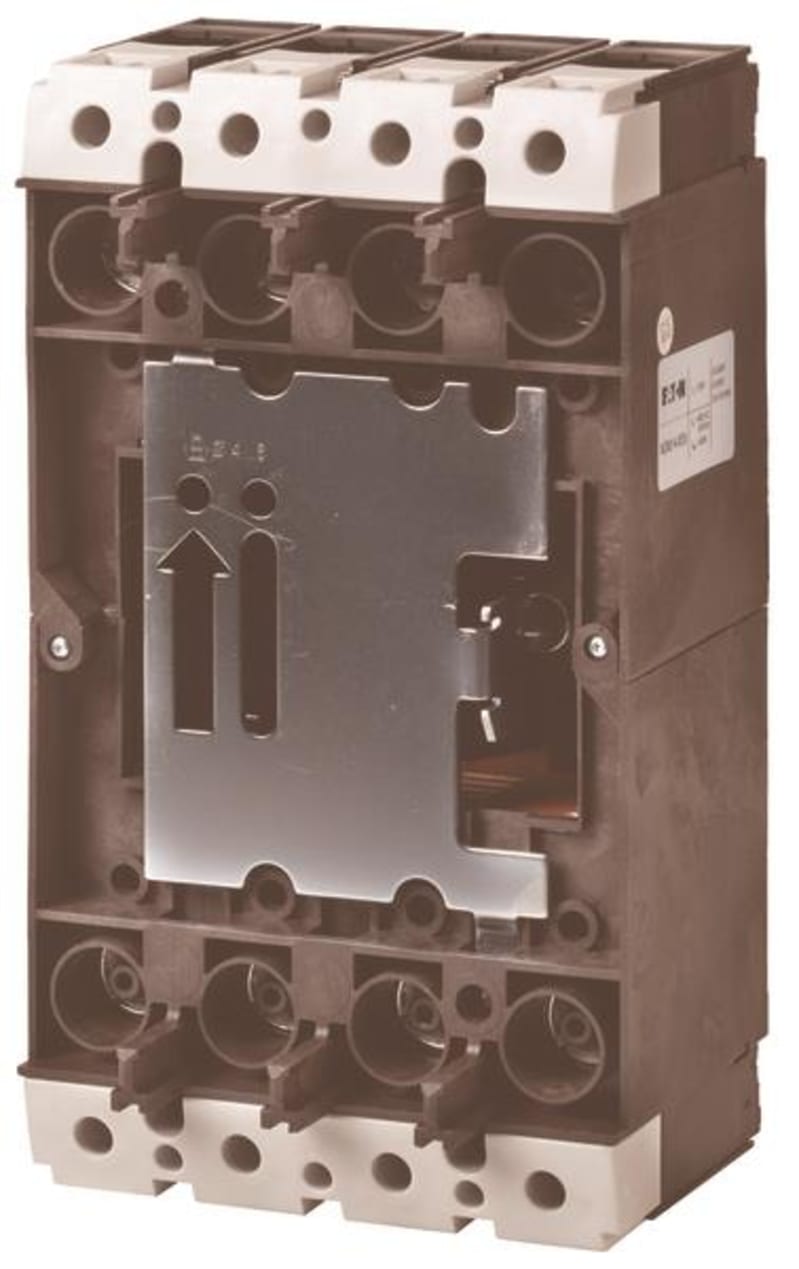

Eaton Plinth for pluggable NZM3 4-Pole
Part numberNZM3-4-XSVSEAN / GTIN4015081649549HS code8538.90
Electrical Components
Circuit Breaker Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZM3-4-XSVS Plinth for pluggable NZM3 4-pole.
Technical Specifications
- Manufacturer part number (MPN)
- NZM3-4-XSVS
- EAN / GTIN
- 4015081649549
- Sales unit
- pcs
- Eaton catalogue number
- 168473
- Depth
- 345 mm
- Height
- 132 mm
- Width
- 185 mm
- Weight
- 3.66 kg
- Compliances
- IEC; RoHS conform
- Certifications
- IEC/EN 60947
- Features
- Version as built-in device
- Frame
- NZM3
- Nominal current
- 500 A
- Number of poles
- Four-pole
- Type
- Plug-in socket for basic unit
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Equipment heat dissipation, current-dependent
- 83.35 W
- Direction of incoming supply
- As required
- Electrical connection type of main circuit
- Screw connection
- Isolation
- 500 V AC (between auxiliary contacts and main contacts); 300 V AC (between the auxiliary contacts)
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Degree of protection
- IP2X (in the area of the plug-in area)
- Mounting Method
- Plug-in unit
- Mounting position
- Vertical and 90° right/left
- Protection against direct contact
- Finger and back-of-hand proof to VDE 0106 part 100
- Shock resistance
- 20 g (half-sinusoidal shock 20 ms)
- Terminal equipment included
- Screw connection
- Rated current In
- 500 A
- Version as busbar adaptor
- No
- Version as built-in device
- Yes
- Type of electrical connection of main circuit
- Screw connection
- Country of origin
- China
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081649549
- SAP 1200601006
- Code 82989566
Product Documentation
Document preview: Eaton Plinth for pluggable NZM3 4-pole — Specification Data Sheet (OEM)
