Eaton

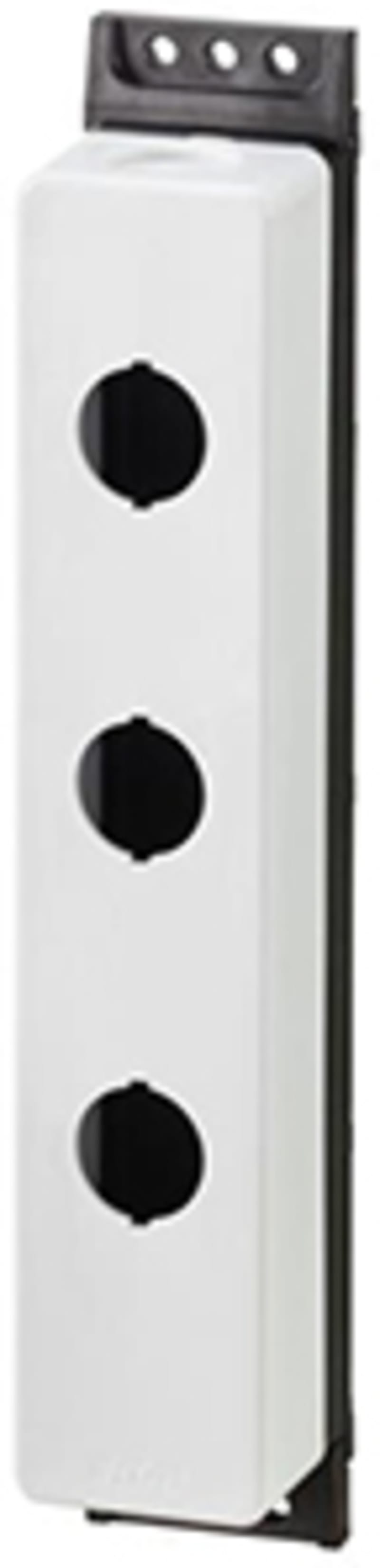

Enclosure M22-FI3
Part numberM22-FI3EAN / GTIN4015080893042HS code8538.90
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-FI3 Enclosure, flat, 3 hole for monterings, M22.
Technical Specifications
- Manufacturer part number (MPN)
- M22-FI3
- EAN / GTIN
- 4015080893042
- Sales unit
- pcs
- Eaton catalogue number
- 197233
- Depth
- 223 mm
- Height
- 44 mm
- Width
- 43 mm
- Weight
- 0.166 kg
- Certifications
- CSA Class No.: 3211-03; CSA file No. 012528; IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE marking; UL Category Control No.: NKCR; UL File No.: E29184; UL Listed; CSA certified
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Connection to SmartWire-DT
- No
- Enclosure color
- Gray
- Enclosure material
- Plastic
- Enclosure type
- Surface mounting housing
- Fitted with
- High-grade steel screws
- Knockouts
- 1 x M20 (cable entry knockouts at the rear); 2 x M20 (cable entry knockout at the side, 1 x each side)
- Number of command positions
- 3
- Number of locations
- 3
- RAL-number
- 7035
- Degree of protection
- NEMA 4X; IP67/IP69K
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Product category
- RMQ-Titan
- Diameter openings
- 22.5 mm
- Colour housing cover
- Grey
- Housing material
- Plastic
- Construction type housing
- Surface mounted housing
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015080893042
- SAP 1200519923
- Code 82667666
Product Documentation
Document preview: Enclosure, — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eaton Plinth for pluggable NZM3 4-Pole
NZM3-4-XSVS
Eaton
Of/On-switch,P1-40/I2H
Eaton
Eaton FAZ-C20/1N Miniature Circuit Breaker — 1P+N, Type C, 20 A, 15 kA
Eaton
Cover NZM1 4P xE Light
XLPTN14
Eaton

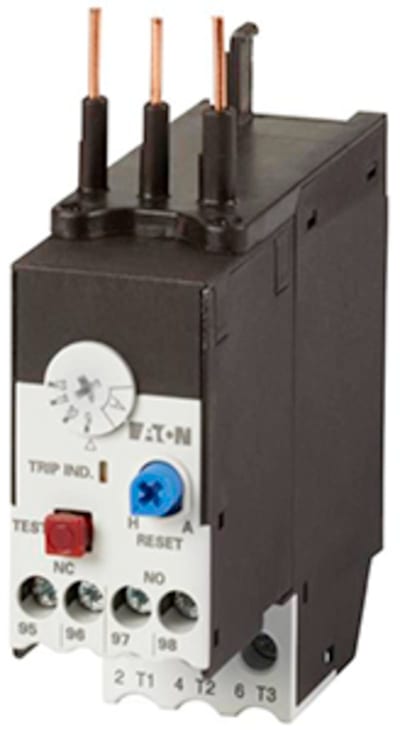

Overload relay ZBT32-24
Eaton

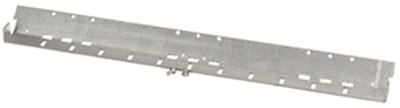

Rail terminal support B=1000mm
