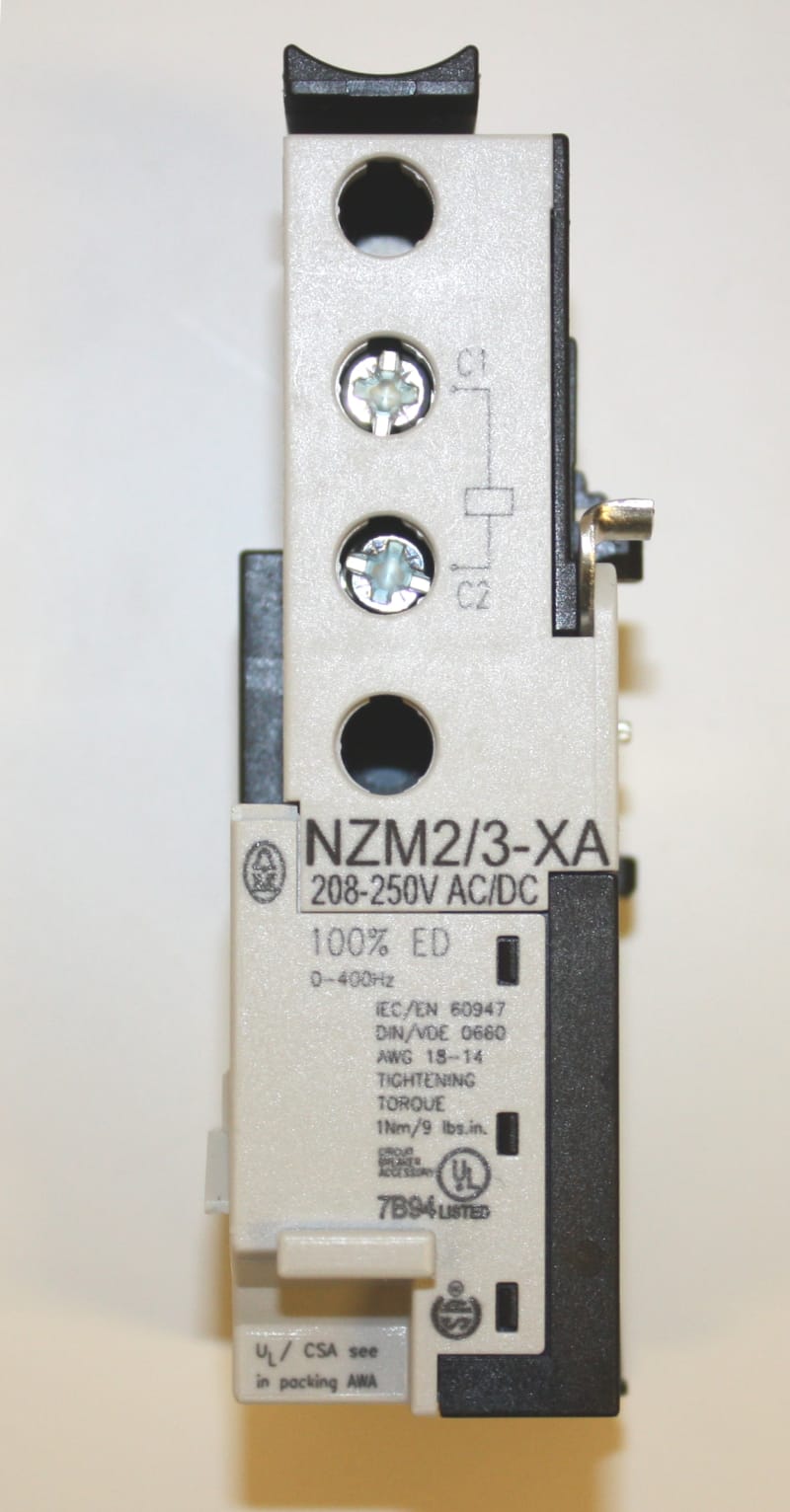

Eaton NZM2/3-XA208-250AC/DC Shunt Release 208-250 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Shunt trip release accessory for Eaton NZM2 and NZM3 moulded-case circuit breakers, providing remote tripping via a control signal. Rated control supply 208-250 V AC/DC across 50/60/200/400 Hz and DC, with a 20 ms reaction time and pick-up power consumption of 2.5 VA/W. Screw-connection terminals mount inside the breaker frame; UL 489, CSA and IEC 60947 listed.
Technical Specifications
- Manufacturer part number (MPN)
- NZM2/3-XA208-250AC/DC EAN / GTIN: 4015082597634 Sales unit: pcs Eaton catalogue number: 259763 Depth: 42 mm Height: 90 mm Width: 30 mm Weight: 0.097 kg Compliances: UL/CSA; IEC; RoHS conform Certifications: UL489; CSA certified; CSA (File No. 22086); UL (Category Control Number DIHS); CSA-C22.2 No. 5-09; UL listed; IEC60947; CSA (Class No. 1437-01); CE marking; UL (File No. E140305) Frame: NZM2/3 Suitable for: Off-load switch Type: Accessory Shunt release Used with: NZM3(-4), N(S)3(-4); NZM2(-4), N(S)2(-4) Electric connection type: Screw connection Frequency rating: 50 Hz / 60 Hz / 200 Hz / 400 Hz, DC (shunt release) minimum command time - max: 15 ms minimum command time - min: 10 ms Pick-up power consumption (shunt release): 2.5 VA/W Rated control supply voltage: 208 - 250 V AC/DC Rated control supply voltage (Us) at AC, 50 Hz - max: 250 V Rated control supply voltage (Us) at AC, 50 Hz - min: 208 V Rated control supply voltage (Us) at AC, 60 Hz - max: 250 V Rated control supply voltage (Us) at AC, 60 Hz - min: 208 V Rated control supply voltage (Us) at DC - max: 250 V Rated control supply voltage (Us) at DC - min: 208 V Rated control voltage (relay contacts): 250 V DC; 208 V DC; 208 V AC; 250 V AC Reaction time: 20 ms Time on duty - max: ∞ Voltage rating: 0.7 - 1.1 x Us Voltage rating at AC (x Us) - max: 1.1 Voltage rating at AC (x Us) - min: 0.7 Voltage type: AC/DC Connection type: With bolt connection Number of contacts (change-over contacts): 0 Number of contacts (normally closed contacts): 0 Number of contacts (normally open contacts): 0 Suitable for off-load switch: Yes Suitable for overload relay: No Type of electric connection: Screw connection Rated control supply voltage AC 50 Hz: 208–250 V Rated control supply voltage AC 60 Hz: 208–250 V Rated control supply voltage DC: 208–250 V Suitable for motor safety switch: No Suitable for power circuit breaker: No Voltage type for actuating: AC Country of origin: Romania
