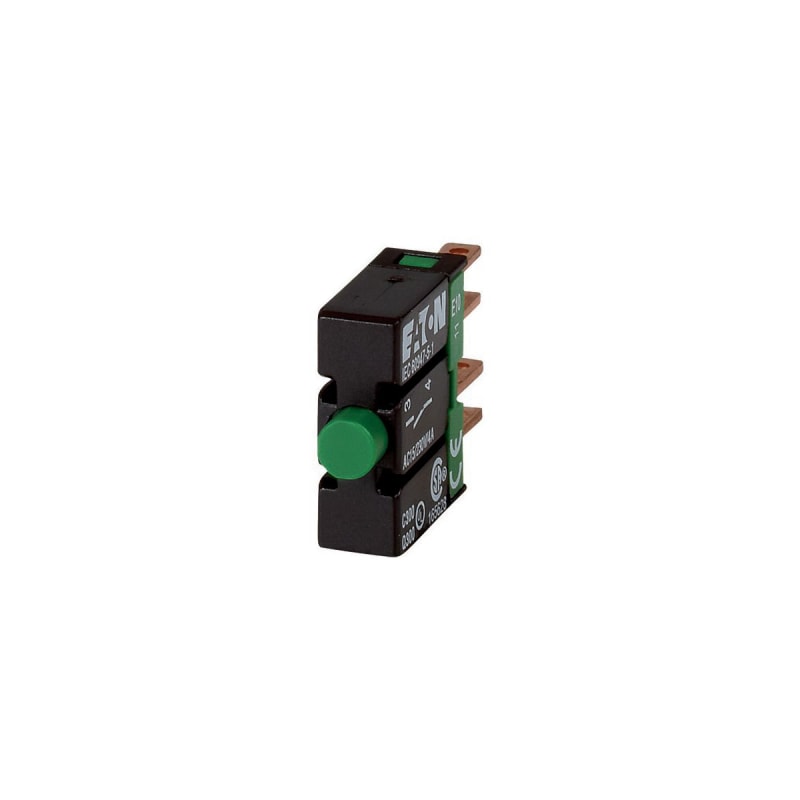

Contact element 1S RMQ 16

Eaton E10 Contact Element, 1N/O, screw connection.

Manufacturer part number (MPN)

E10

EAN / GTIN

4015080903512

Sales unit

pcs

Package quantity

50 pcs

Eaton catalogue number

090351

Depth

6 mm

Height

29 mm

Width

18 mm

Weight

0.003 kg

Certifications

CE; UL Category Control No.: NKCR; UL; CSA-C22.2 No. 14-05; IEC/EN 60947; UL 508; UL File No.: E29184; CSA; CSA Class No.: 3211-03; CSA File No.: 46552; IEC/EN 60947-5

Electric connection type

Screw connection

Operating frequency

3600 Operations/h

Pollution degree

3

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Actuating force - max

3 N

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Heat dissipation per pole, current-dependent Pvid

0.1 W

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

1

Number of switches (fault signal)

0

Connection to SmartWire-DT

No

Rated impulse withstand voltage (Uimp)

4000 V AC

Terminal capacity

0.5 - 1.0 mm²

Mounting position

As required

Terminal size

2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors; 2.8 x 0.8 mm to DIN 46244, Blade terminal

Rated conditional short-circuit current (Iq)

1 kA

Connection type

Blade terminal

Mounting method

Front fastening

Overvoltage category

III

Control circuit reliability

1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA); 1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA)

Degree of protection

IP20, with Insulated ferrule ISH2,8

Model

Top mounting

Lamp holder

None

Rated operational current (Ie)

4 A at AC-15, 110 V; 4 A at AC-15, 48 V

Lifespan, mechanical

100,000,000 Operations

Short-circuit protection

FAZ-B6/1, Fuseless

Product category

Accessories

Short-circuit protection rating

Max. 10 A gG/gL, Fuse, Contacts

Rated insulation voltage (Ui)

250 V

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

6 A

Rated operational current (Ie) at AC-15, 24 V

4 A

Rated operational current (Ie) at DC-13, 110 V

0.5 A

Rated operational current (Ie) at DC-13, 220 V, 230 V

0.2 A

Rated operational current (Ie) at DC-13, 24 V

1.5 A

Rated operational current (Ie) at DC-13, 42 V

1 A

Rated operational current (Ie) at DC-13, 60 V

0.8 A

Rated operational current for specified heat dissipation (In)

4 A

Rated operational voltage (Ue) at AC - max

250 V

Shock resistance

40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27

Country of origin

China

HS Code

8536.50
