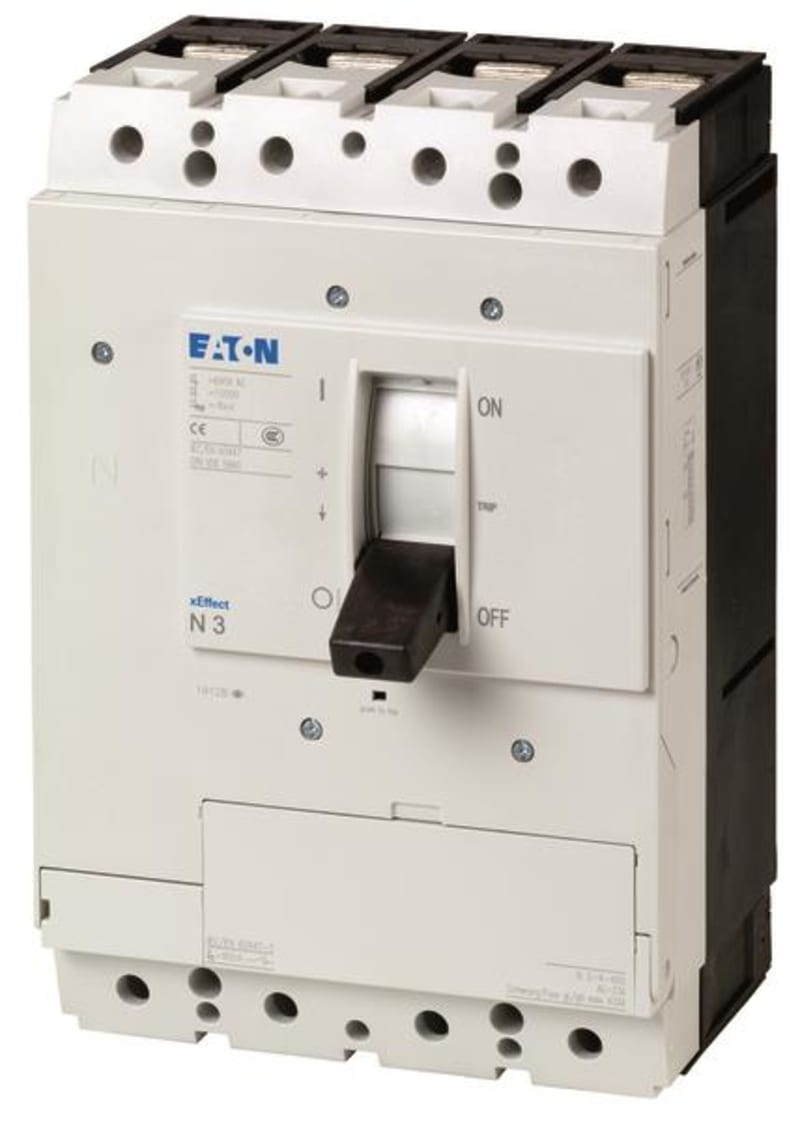

Eaton N3-4-500-S1-DC

Eaton N3-4-500-S1-DC is listed under Switchgear & Protection / Disconnect Switches. Sales unit: pcs; Eaton catalogue number: 142268; Depth: 166 mm; Height: 275 mm; Width: 185 mm; Weight: 7.3 kg.

Manufacturer part number (MPN)

N3-4-500-S1-DC

EAN / GTIN

4015081389988

Sales unit

pcs

Eaton catalogue number

142268

Depth

166 mm

Height

275 mm

Width

185 mm

Weight

7.3 kg

Compliances

RoHS conform

Certifications

IEC

Functions

Voltage release optional; Interlockable; Photovoltaic applications; Disconnectors/main switches

Amperage Rating

500 A

Application

Open areas Utility buildings

Circuit breaker frame type

N3

Features

Version as maintenance-/service switch; Motor drive optional; Version as emergency stop installation; Remote operation with shunt releases / remote operator; Version as main switch

Number of poles

Four-pole

Type

DC switch-disconnector

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

150 W

Rated operational current for specified heat dissipation (In)

500 A

Current rating (Iu) at 40°C with terminal jumpers

500 A

Current rating (Iu) at 65°C with terminal jumpers

500 A

Electrical connection type of main circuit

Screw connection

Handle type

Rocker lever

Number of operations per hour - max

60

Overvoltage category

III

Pollution degree

3

Rated conditional short-circuit current with back-up fuse

15 kA at 1000 V; 2 x 250 AgR

Rated insulation voltage (Ui)

1250 V

Rated operational current

500 A (DC 22-A)

Rated short-time withstand current (Icw)

6.6 kA

Rated short-time withstand current (t = 1 s)

6.6 kA

Short-circuit protective device fuses - max

2 x 250 A gR

Utilization category

DC-22 A

Voltage rating

1000 V - 1000 V

Degree of protection

Other

Degree of protection (IP), front side

IP20

Handle color

Black

Lifespan, mechanical

15000 operations

Mounting Method

Fixed; Built-in device fixed built-in technique; Distribution board installation; Ground mounting; Intermediate mounting

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Number of switches

1

Switch positions

I, +, 0

Standard terminals

Screw terminal

Terminal capacity (aluminum solid conductor/cable)

16 mm² (1x) at tunnel terminal

Terminal capacity (aluminum stranded conductor/cable)

25 mm² - 185 mm² (1x) at tunnel terminal

Terminal capacity (copper busbar)

Max. 30 mm x 10 mm + 30 mm x 5 mm direct at switch rear-side connection; M10 at rear-side screw connection; Max. 10 mm x 50 mm (2x) at rear-side width extension; Min. 20 mm x 5 mm direct at switch rear-side connection

Terminal capacity (copper solid conductor/cable)

16 mm² (2x) direct at switch rear-side connection; 16 mm² (2x) at box terminal; 16 mm² (1x) direct at switch rear-side connection

Country of origin

Romania

HS Code

8536.20
