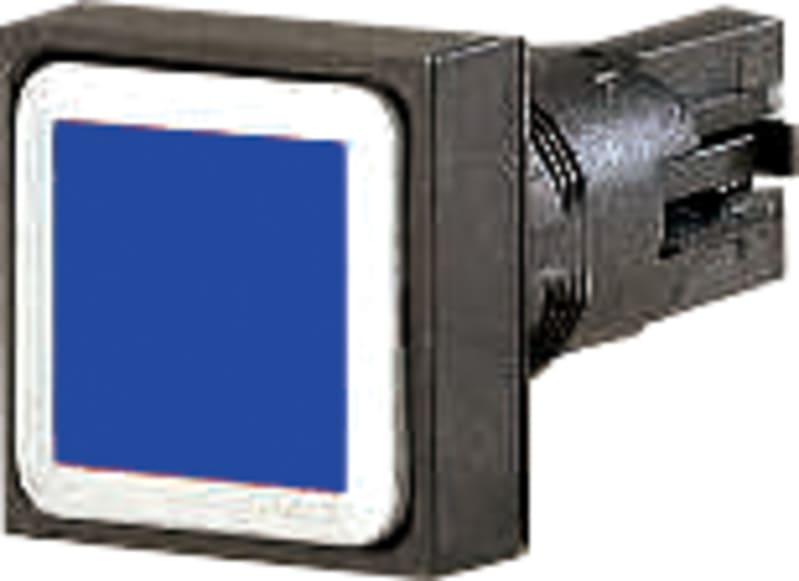

Push-button with light, RMQ (Q18LT-BL)

Eaton Q18LT-BL Illuminated Push Button, impulse, blue.

Manufacturer part number (MPN)

Q18LT-BL

EAN / GTIN

4015080887645

Sales unit

pcs

Package quantity

10 pcs

Eaton catalogue number

088764

Depth

59 mm

Height

18 mm

Width

18 mm

Weight

0.009 kg

Certifications

UL File No.: E29184; UL Category Control No.: NKCR; CSA Class No.: 3211-03; IEC/EN 60947; CSA-C22.2 No. 14-05; IEC/EN 60947-5; CE; CSA; CSA File No.: 46552; UL 508; UL

Catalog Notes

Filament bulb or LED needs to be ordered separately

Type

Illuminated pushbutton actuator

Actuator color

Blue

Actuator function

Momentary; Spring-return

Operating frequency

3600 Operations/h

Pollution degree

3

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

No

Actuating force

4 N

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

25 °C

Number of command positions

1

Opening diameter

16 mm

Rated insulation voltage (Ui)

250 V

Rated operational voltage (Ue) at AC - max

24 V

Rated impulse withstand voltage (Uimp)

800 V AC

Bezel color

Black

Shock resistance

40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27

Bezel material

Plastic

Design

Flat

Mounting position

As required

Terminal size

2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors; 2.8 x 0.8 mm to DIN 46244, Blade terminal

Overvoltage category

III

Control circuit reliability

1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA); 1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA)

Degree of protection

NEMA 1; IP65

Degree of protection (front side)

IP65; NEMA 1

Inscription

Blank

Front element type

Flat

Lens type

Square

Lifespan, mechanical

3,000,000 Operations

Product category

RMQ16

Size

Front dimensions: 18 x 18 mm

Suitable for

Illumination

Hole diameter

16 mm

Colour button

Blue

Suitable for lighting

Yes

Spring-return

Yes

Labelled

No

Type of button

Flat

Colour front ring

Black

Degree of protection (IP), front side

IP65

Height opening

6 mm

With protective cover

No

Material front ring

Plastic

With front ring

Yes

Construction type lens

Square

Switching function latching

No

Country of origin

China

Width opening

16 mm

HS Code

8531.80

• EAN 4015080887645
• SAP 1000078714
• Code 8812943
