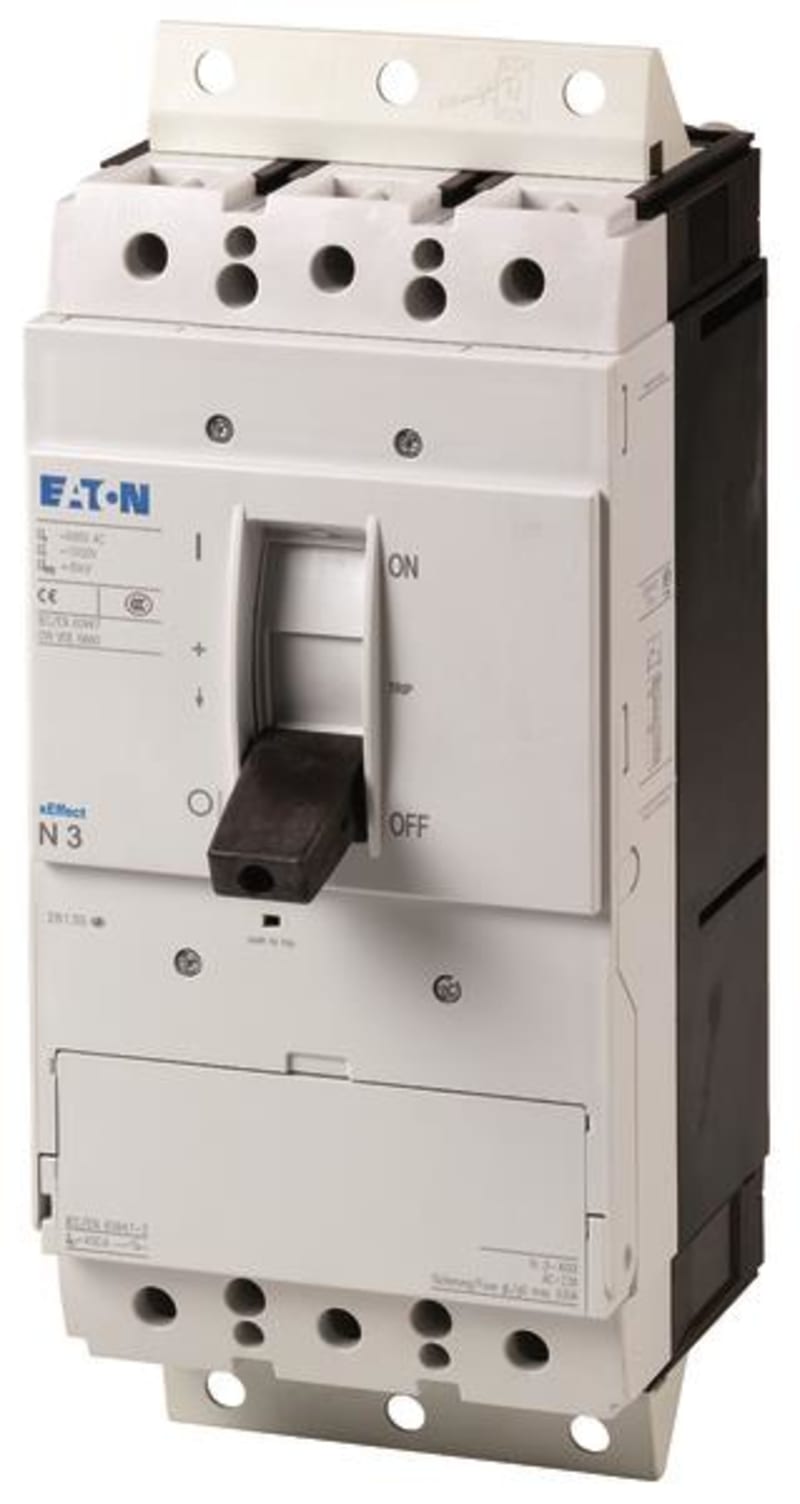

Eaton N3-630-SVE
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton N3-630-SVE is listed under Switchgear & Protection / Disconnect Switches. Sales unit: pcs; Eaton catalogue number: 168545; Depth: 335 mm; Height: 215.2 mm; Width: 140 mm; Weight: 5.42 kg.
Technical Specifications
- Manufacturer part number (MPN)
- N3-630-SVE
- EAN / GTIN
- 4015081650200
- Sales unit
- pcs
- Eaton catalogue number
- 168545
- Depth
- 335 mm
- Height
- 215.2 mm
- Width
- 140 mm
- Weight
- 5.42 kg
- Compliances
- RoHS conform
- Certifications
- IEC 60947-3
- Functions
- Voltage release optional; Interlockable
- Amperage Rating
- 630 A
- Features
- Version as maintenance-/service switch; Motor drive optional; Version as emergency stop installation; Version as main switch
- Number of poles
- Three-pole
- Special features
- Main switch characteristics including positive drive to IEC/EN 60204 and VDE 0113. Busbar tag shroud to VDE 0160 Part 100. Rated current = rated uninterrupted current: 630 A
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Equipment heat dissipation, current-dependent
- 107.16 W
- Electrical connection type of main circuit
- Screw connection
- Handle type
- Rocker lever
- Rated operating power at AC-23, 400 V
- 315 kW
- Rated operating voltage (Ue) at AC - max
- 690 V
- Rated operational current
- 630 A (415 V AC-22A, making and breaking capacity); 500 A (415 V AC-23A, making and breaking capacity); 630 A (690 V AC-22A, making and breaking capacity); 500 A (690 V AC-23A, making and breaking capacity)
- Rated short-time withstand current (Icw)
- 12 kA
- Short-circuit protective device fuses - max
- 630 A gL
- Voltage rating
- 690 V - 690 V
- Degree of protection
- IP20
- Degree of protection (IP), front side
- IP20
- Handle color
- Black
- Mounting Method
- Ground mounting; Distribution board installation; Intermediate mounting; Built-in device plug-in technique
- Number of auxiliary contacts (change-over contacts)
- 0
- Number of auxiliary contacts (normally closed contacts)
- 0
- Number of auxiliary contacts (normally open contacts)
- 0
- Number of switches
- 1
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 4015081650200
- SAP 1200296851
- Code 82268329
Product Documentation
More from Eaton
Eaton
Front plate with plastic sealed H500 B600 xEB
EP-502245
Eaton
Soft starter DS7, 9 A
171742
Eaton
Rear panel (XVTL-R-8/18)
Eaton
Eaton Direct Online Starter (DOL), PKE, Screw Connection (MSC-DE-12-M12(230V50HZ))
Eaton
Eaton FAZ-D3/1 Miniature Circuit Breaker — 1P, Type D, 3 A, 15 kA
Eaton
Cover H×W×D=250X375X100MM (D200-CI43-NA)
Eaton
Eaton Pluggable circuit breaker 450A/3P NZMN3-ME450-SVE
Eaton
Door xE Light (XLSD5S2065)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy N3-630-SVE?
- N3-630-SVE can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is N3-630-SVE.
- What is the HS code for N3-630-SVE?
- The customs tariff (HS) code for N3-630-SVE is 8536.20.
- Who manufactures N3-630-SVE?
- N3-630-SVE is a Eaton product in the Switchgear & Protection range.
- Is a datasheet available for N3-630-SVE?
- Yes — the N3-630-SVE datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for N3-630-SVE?
- The minimum order quantity is 1.
- Is N3-630-SVE available?
- Yes — N3-630-SVE is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
