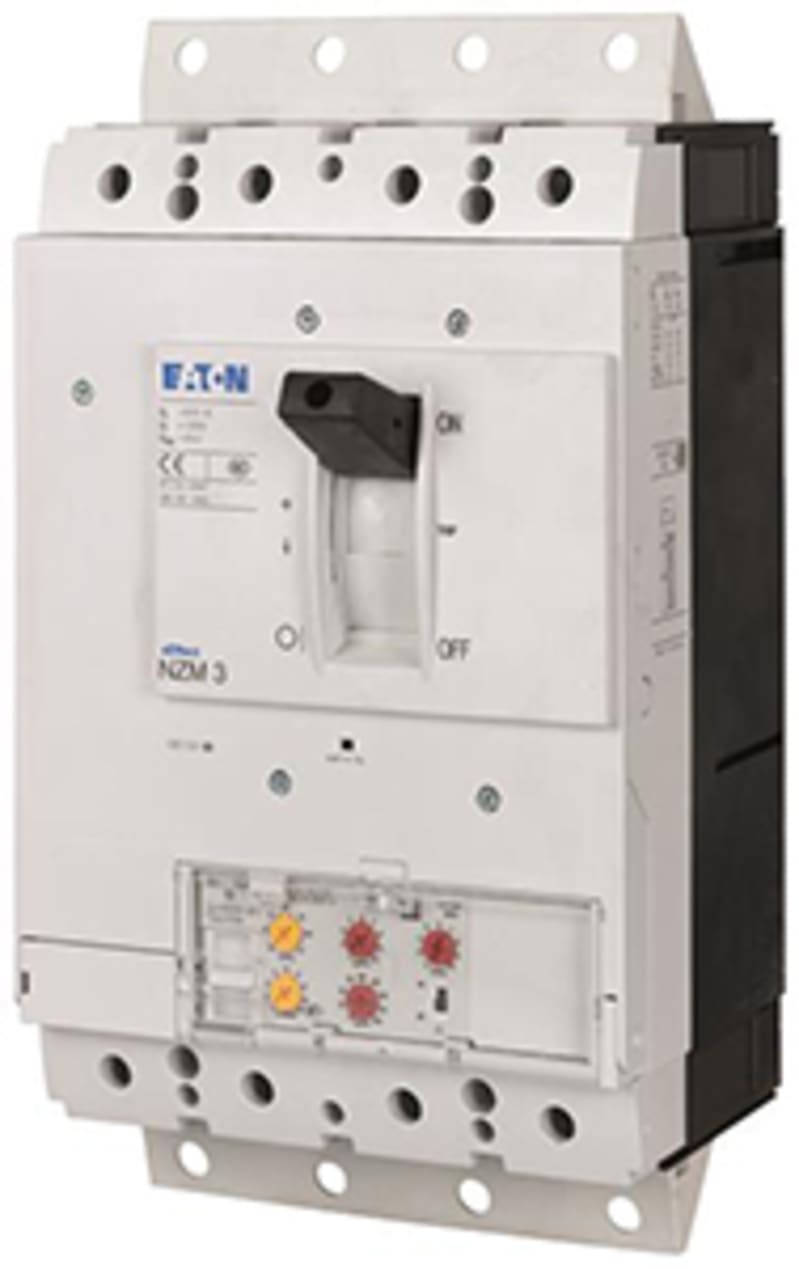

Eaton Pluggable circuit breaker 630A/4P
Part numberNZMS3-4-VE630-SVEEAN / GTIN4015081650149HS code8536.90
Electrical Components
Moulded Case Circuit Breakers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZMS3-4-VE630-SVE Pluggable circuit breaker 630A/4p.
Technical Specifications
- Manufacturer part number (MPN)
- NZMS3-4-VE630-SVE
- EAN / GTIN
- 4015081650149
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 168538
- Depth
- 335 mm
- Height
- 215.2 mm
- Width
- 185 mm
- Weight
- 10.04 kg
- Compliances
- RoHS conform
- Amperage Rating
- 630 A
- Circuit breaker frame type
- NZM3
- Features
- Motor drive optional; Protection unit
- Number of poles
- Four-pole
- Type
- Circuit breaker
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Equipment heat dissipation, current-dependent
- 178.61 W
- Electrical connection type of main circuit
- Screw connection
- Handle type
- Rocker lever
- Instantaneous current setting (Ii) - max
- 7560 A
- Instantaneous current setting (Ii) - min
- 1260 A
- Overload current setting (Ir) - max
- 630 A
- Overload current setting (Ir) - min
- 315 A
- Short delay current setting (Isd) - max
- 6300 A
- Short delay current setting (Isd) - min
- 630 A
- Voltage rating
- 690 V - 690 V
- Degree of protection
- IP20
- Mounting Method
- Built-in device plug-in technique
- Number of auxiliary contacts (change-over contacts)
- 0
- Number of auxiliary contacts (normally closed contacts)
- 0
- Number of auxiliary contacts (normally open contacts)
- 0
- Position of connection for main current circuit
- Back side
- Standard terminals
- Screw terminal
- Document Name
- Description Action
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081650149
- SAP 1200601041
- Code 82989428
Product Documentation
Document preview: Eaton Pluggable circuit breaker 630A/4p — Specification Data Sheet (OEM)
More from Eaton
Eaton

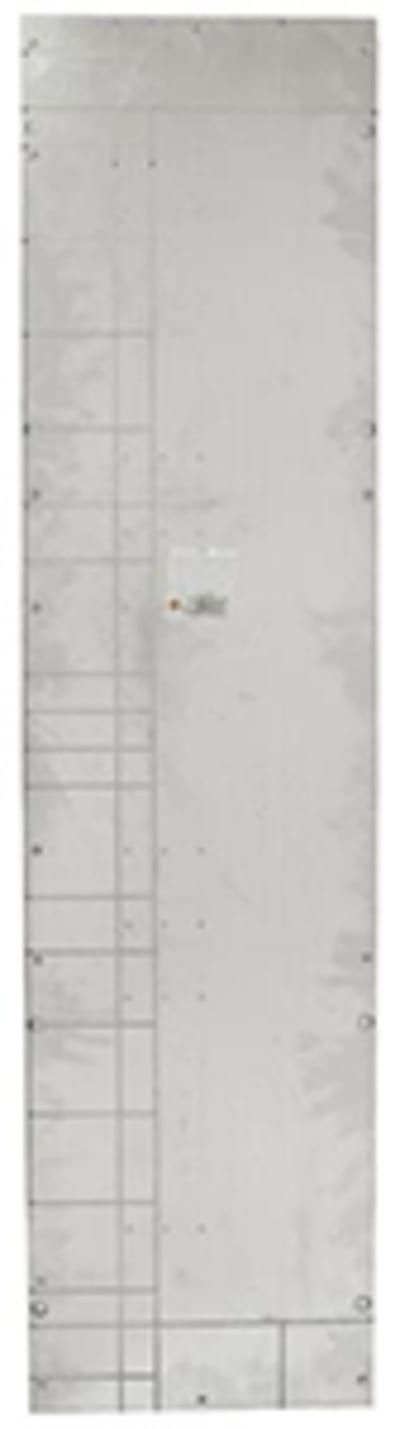

Partition xE Light (XLSPP143)
