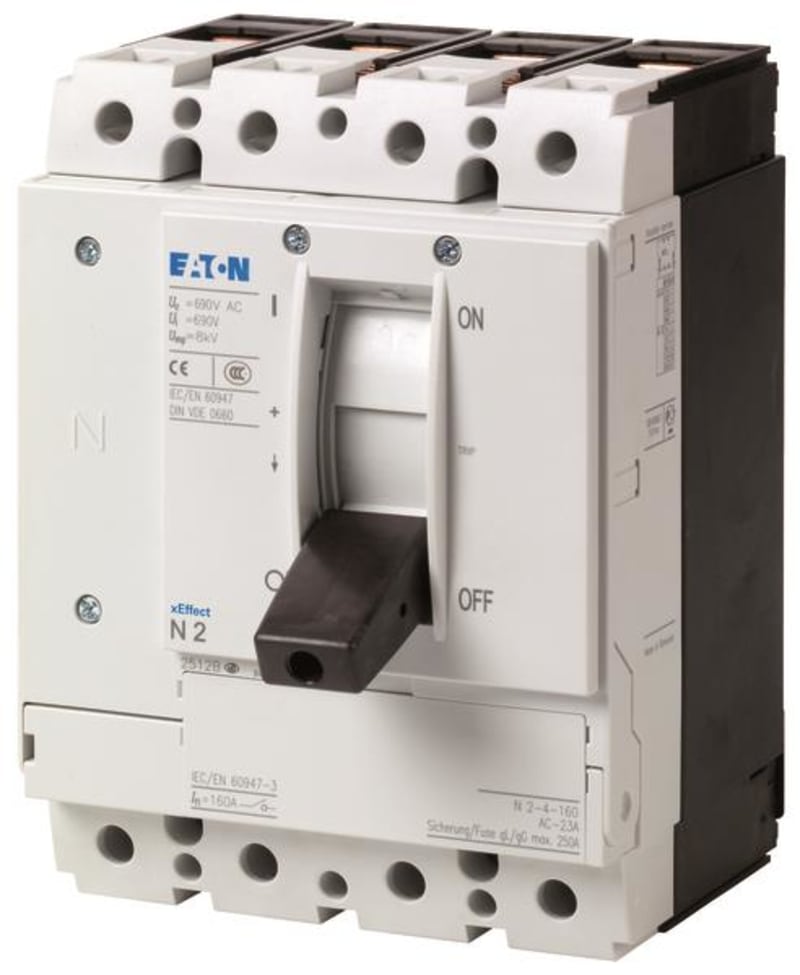

Eaton N2-4-160-S1-DC

Eaton N2-4-160-S1-DC is listed under Switchgear & Protection / Disconnect Switches. Sales unit: pcs; Eaton catalogue number: 127732; Depth: 149 mm; Height: 184 mm; Width: 140 mm; Weight: 2.87 kg.

Manufacturer part number (MPN)

N2-4-160-S1-DC

EAN / GTIN

4015081251421

Sales unit

pcs

Eaton catalogue number

127732

Depth

149 mm

Height

184 mm

Width

140 mm

Weight

2.87 kg

Compliances

RoHS conform

Certifications

IEC

Functions

Interlockable; Photovoltaic applications; Voltage release optional; Disconnectors/main switches

Amperage Rating

160 A

Application

Open areas Utility buildings

Circuit breaker frame type

N2

Features

Version as maintenance-/service switch; Version as main switch; Remote operation with shunt releases / remote operator; Version as emergency stop installation; Motor drive optional

Number of poles

Four-pole

Type

DC switch-disconnector

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

27 W

Rated operational current for specified heat dissipation (In)

160 A

Current rating (Iu) at 40°C with terminal jumpers

160 A

Current rating (Iu) at 65°C with terminal jumpers

160 A

Electrical connection type of main circuit

Screw connection

Handle type

Rocker lever

Number of operations per hour - max

120

Overvoltage category

III

Pollution degree

3

Rated conditional short-circuit current with back-up fuse

15 kA at 1000 V; 200 AgR

Rated insulation voltage (Ui)

1250 V

Rated operational current

160 A (DC 22-A)

Rated short-time withstand current (Icw)

3.6 kA

Rated short-time withstand current (t = 1 s)

3.6 kA

Short-circuit protective device fuses - max

200 A gR

Utilization category

DC-22 A

Voltage rating

1000 V - 1000 V

Degree of protection

Other

Degree of protection (IP), front side

IP20

Handle color

Black

Lifespan, mechanical

20000 operations

Mounting Method

Distribution board installation; Built-in device fixed built-in technique; Intermediate mounting; Ground mounting; Fixed

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Number of switches

1

Switch positions

I, +, 0

Standard terminals

Screw terminal

Terminal capacity (aluminum solid conductor/cable)

16 mm² (1x) at tunnel terminal

Terminal capacity (aluminum stranded conductor/cable)

25 mm² - 185 mm² (1x) at tunnel terminal

Terminal capacity (copper busbar)

Min. 16 mm x 5 mm direct at switch rear-side connection; M8 at rear-side screw connection; Max. 24 mm x 8 mm direct at switch rear-side connection

Terminal capacity (copper solid conductor/cable)

10 mm² - 16 mm² (1x) direct at switch rear-side connection; 4 mm² - 16 mm² (2x) direct at switch rear-side connection; 4 mm² - 16 mm² (2x) at box terminal; 4 mm² - 16 mm² (1x) at box terminal; 16 mm² (1x) at tunnel terminal

Terminal capacity (copper stranded conductor/cable)

25 mm² - 185 mm² (1x) at tunnel terminal; 25 mm² - 185 mm² (1x) at box terminal; 25 mm² - 70 mm² (2x) at box terminal; 25 mm² - 185 mm² (1x) direct at switch rear-side connection; 25 mm² - 70 mm² (2x) direct at switch rear-side connection

Terminal capacity (copper strip)

Min. 2 segements of 16 mm x 0.8 mm at rear-side connection (punched); Max. 10 segments of 16 mm x 0.8 mm at box terminal; Max. 10 segments of 24 mm x 0.8 mm at rear-side connection (punched); Min. 2 segments of 9 mm x 0.8 mm at box terminal; Max. 8 segments of 15.5 mm x 0.8 mm (2x) at box terminal

Document Name

Description Action

Country of origin

Romania

HS Code

8536.20
