Eaton

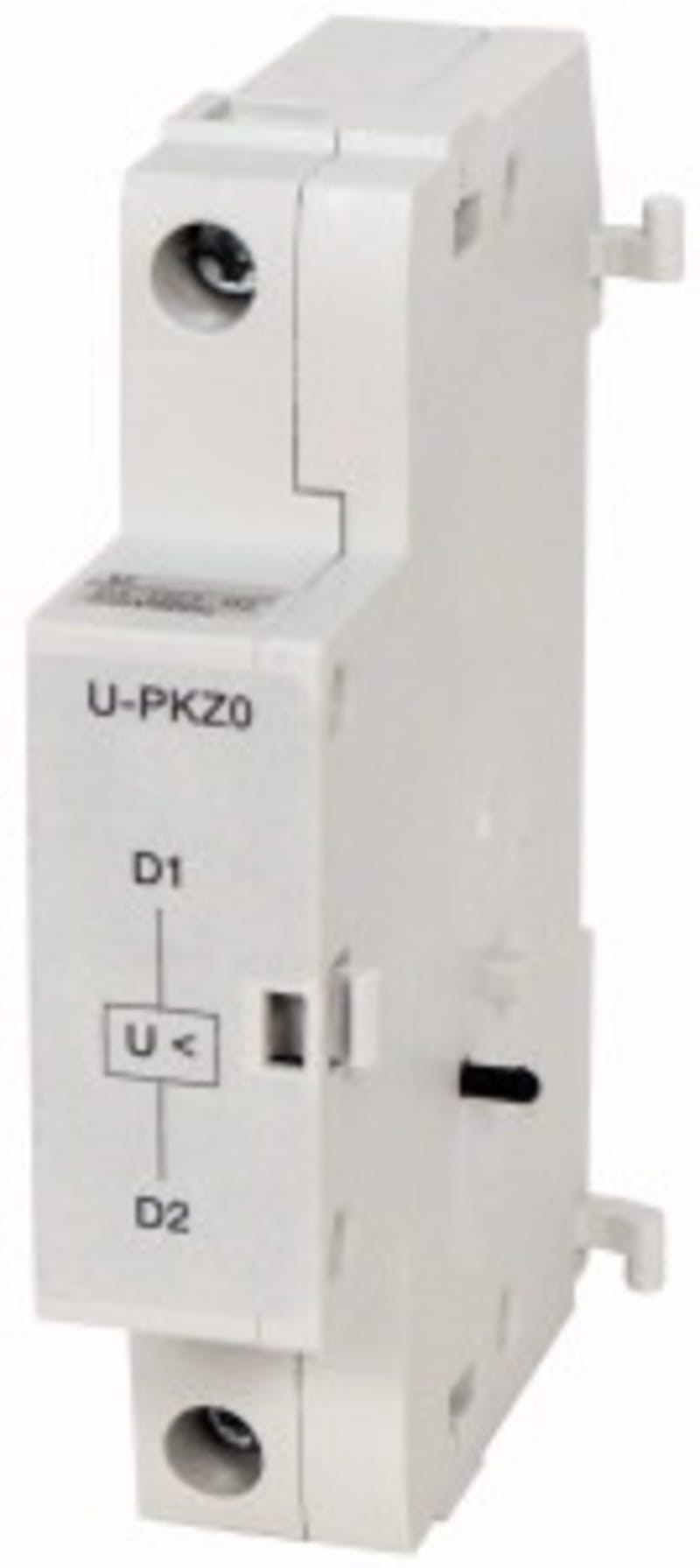

Undervoltagestrigger 230V50HZ (U-PKZ0(230V50HZ))

Name: Undervoltagestrigger 230V50HZ (U-PKZ0(230V50HZ))
Brand: Eaton
SKU: U-PKZ0(230V50HZ)

Part numberU-PKZ0(230V50HZ)EAN / GTIN4015080731351HS code8538.90

Electrical Components

Circuit Breaker Accessories

MOQ:1

Pricing

Request a quote

We reply within 24 hours

Request Quote

Email Datasheet

Product Description

Eaton U-PKZ0(230V50HZ) Undervoltage release 230V50Hz.

Technical Specifications

Manufacturer part number (MPN): U-PKZ0(230V50HZ)
EAN / GTIN: 4015080731351
Sales unit: pcs
Package quantity: 2 pcs
Eaton catalogue number: 073135
Depth: 68 mm
Height: 90 mm
Width: 24 mm
Weight: 0.129 kg
Certifications: CSA-C22.2 No. 14; CE; IEC/EN 60947-4-1; UL 508; CSA Class No.: 3211-05; CSA; CSA File No.: 165628; UL Category Control No.: NLRV; UL; UL File No.: E36332
Ambient operating temperature - max: 55 °C
Ambient operating temperature - min: -25 °C
Number of contacts (change-over contacts): 0
Number of contacts (normally closed contacts): 0
Number of contacts (normally open contacts): 0
Static heat dissipation, non-current-dependent Pvs: 0.5 W
Rated operational voltage (Ue) at AC - max: 480 V
Rated operational voltage (Ue) at AC - min: 42 V
Rated operational voltage (Ue) at DC - max: 250 V
Rated operational voltage (Ue) at DC - min: 24 V
Electric connection type: Screw connection
Mounting position: Can be fitted to left side of the motor protection switch
Product category: Accessories
Suitable as: EMERGENCY STOP or EMERGENCY switching-off device in accordance with IEC/EN 60204 when combined with circuit breaker
Suitable for: Motor safety switch
Used with: Motor protective circuit-breaker
Voltage type: AC
Drop-out voltage: 0,7- 0,35 x Uc
Pick-up voltage: 0.85 - 1.1 V x Uc
Rated control supply voltage (Us) at AC, 50 Hz - max: 230 V
Rated control supply voltage (Us) at AC, 50 Hz - min: 230 V
Power consumption, pick-up, 50 Hz: 5 VA, Pull-in power, Coil in a cold state and 1.0 x Us
Power consumption, pick-up, 60 Hz: 5 VA, Pull-in power, Coil in a cold state and 1.0 x Us
Power consumption, sealing, 50 Hz: 3 VA, Coil in a cold state and 1.0 x Us
Power consumption, sealing, 60 Hz: 3 VA, Coil in a cold state and 1.0 x Us
Terminal capacity (solid/flexible with ferrule): 1 x (0.75 - 2.5) mm²; 2 x (0.75 - 2.5) mm²
Terminal capacity (solid/stranded AWG): 1 x (18 - 14); 2 x (18 - 14)
Delayed: No
Suitable for off-load switch: No
Suitable for overload relay: No
Type of electric connection: Screw connection
Rated control supply voltage AC 50 Hz: 230 V
Suitable for motor safety switch: Yes
Suitable for power circuit breaker: No
Voltage type for actuating: AC
Country of origin: Germany

Standards & Compliance

HS Code: 8538.90

Cross References

EAN 4015080731351
SAP 1000005643
Code 832924

Product Documentation

UNDERVOLTAGESTRIGGER 230V50HZ (U-PKZ0(230V50HZ)) — Specification Data Sheet (OEM)Download

Undervoltagestrigger 230V50HZ (U-PKZ0(230V50HZ)) — Specification sheet Download

Document preview: UNDERVOLTAGESTRIGGER 230V50HZ (U-PKZ0(230V50HZ)) — Specification Data Sheet (OEM)
