KONTAKTEL. NO, Bottom, SPRING.KL.

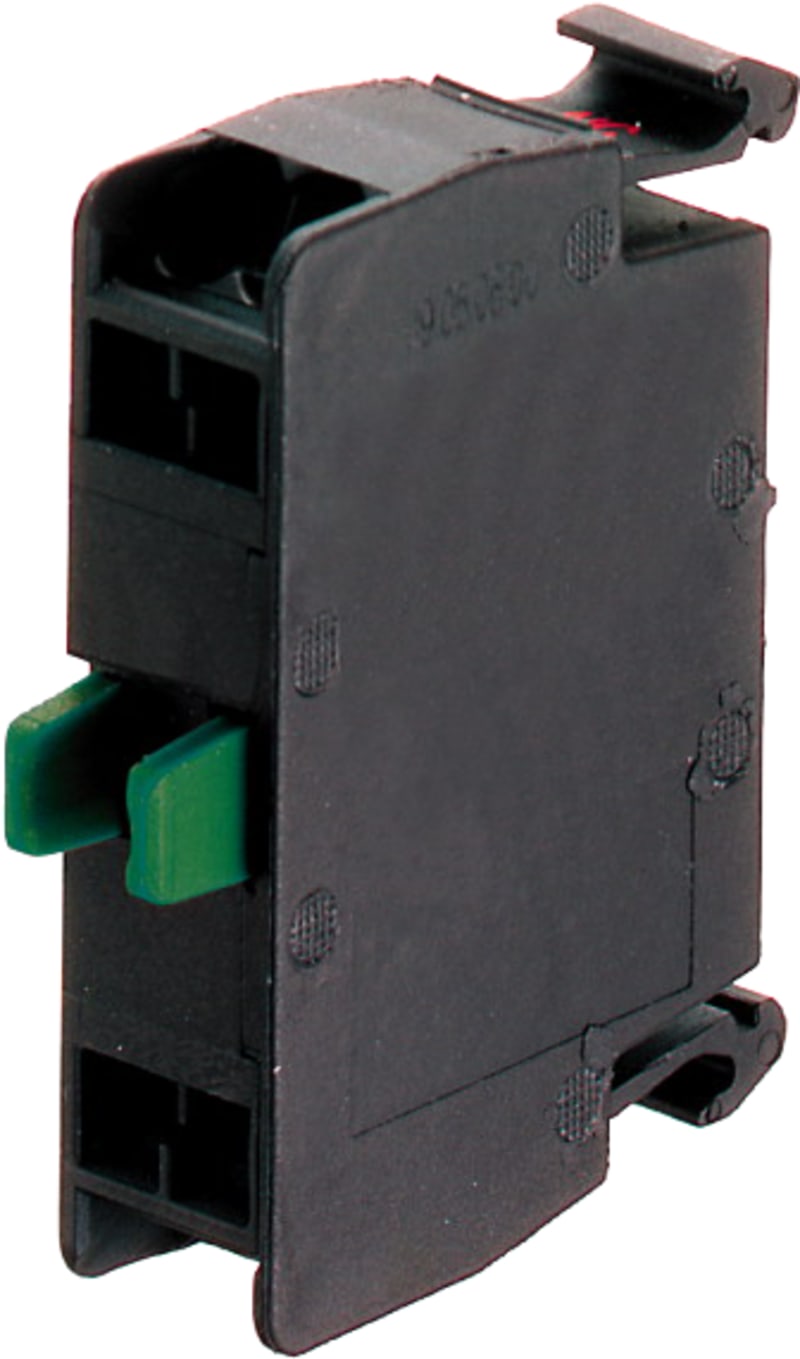

Eaton M22-CKC10 Contact Element, 1 N/O, spring terminalconnection.

Manufacturer part number (MPN)

M22-CKC10

EAN / GTIN

4015082163860

Sales unit

pcs

Package quantity

20 pcs

Eaton catalogue number

216386

Depth

38 mm

Height

10 mm

Width

32 mm

Weight

0.01 kg

Compliances

CE Marked

Certifications

CSA Std. C22.2 No. 14-05; EN 60947-5; IEC 60947-5; CSA Std. C22.2 No. 94-91; UL 508; CE; CSA File No.: 012528; CSA-C22.2 No. 94-91; UL File No.: E29184; CSA Class No.: 3211-03; UL; IEC 60947-5-1; CSA-C22.2 No. 14-05; UL Category Control No.: NKCR; CSA; IEC/EN 60947-5

Actuating force - max

5 N

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Connection to SmartWire-DT

No

Control circuit reliability

1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA); 1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA)

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

1

Heat dissipation per pole, current-dependent Pvid

0.11 W

Rated operational current for specified heat dissipation (In)

6 A

Rated insulation voltage (Ui)

500 V

Rated operational current (Ie) at AC-15, 115 V

6 A

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

6 A

Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V

4 A

Rated operational current (Ie) at AC-15, 500 V

2 A

Rated operational current (Ie) at DC-13, 110 V

0.6 A

Rated operational current (Ie) at DC-13, 220 V, 230 V

0.3 A

Rated operational current (Ie) at DC-13, 24 V

3 A

Rated operational current (Ie) at DC-13, 42 V

1.7 A

Rated operational current (Ie) at DC-13, 500 V

0.1 A

Rated operational current (Ie) at DC-13, 60 V

1.2 A

Color

Green

Electric connection type

Spring clamp connection

Degree of protection

IP20

Lifespan, electrical

1,000,000 Operations (at 230 V, AC-15, 1 A); 1,600,000 Operations (at 230 V, 0.5 A); 1,200,000 Operations (at 12 V, DC-13, 2.8 A); 700,000 Operations (at 230 V, AC-15, 3 A)

Lifespan, mechanical

5,000,000 Operations

Model

Top mounting

Operating frequency

3600 Operations/h

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp)

6000 V AC

Connection type

Base fixing; Single contact; Cage Clamp

Mounting method

Base

Short-circuit protection

PKZM0-10/FAZ-B6/1, Contacts, Max. short-circuit protective device, Fuseless

Short-circuit protection rating

Max. 10 A gG/gL, Fuse, Contacts

Terminal capacity (flexible with ferrule)

0.5 - 1.5 mm²

Terminal capacity (solid)

0.75 - 2.5 mm²

Terminal capacity (stranded)

0.5 - 2.5 mm²

Country of origin

Germany

HS Code

8538.90
