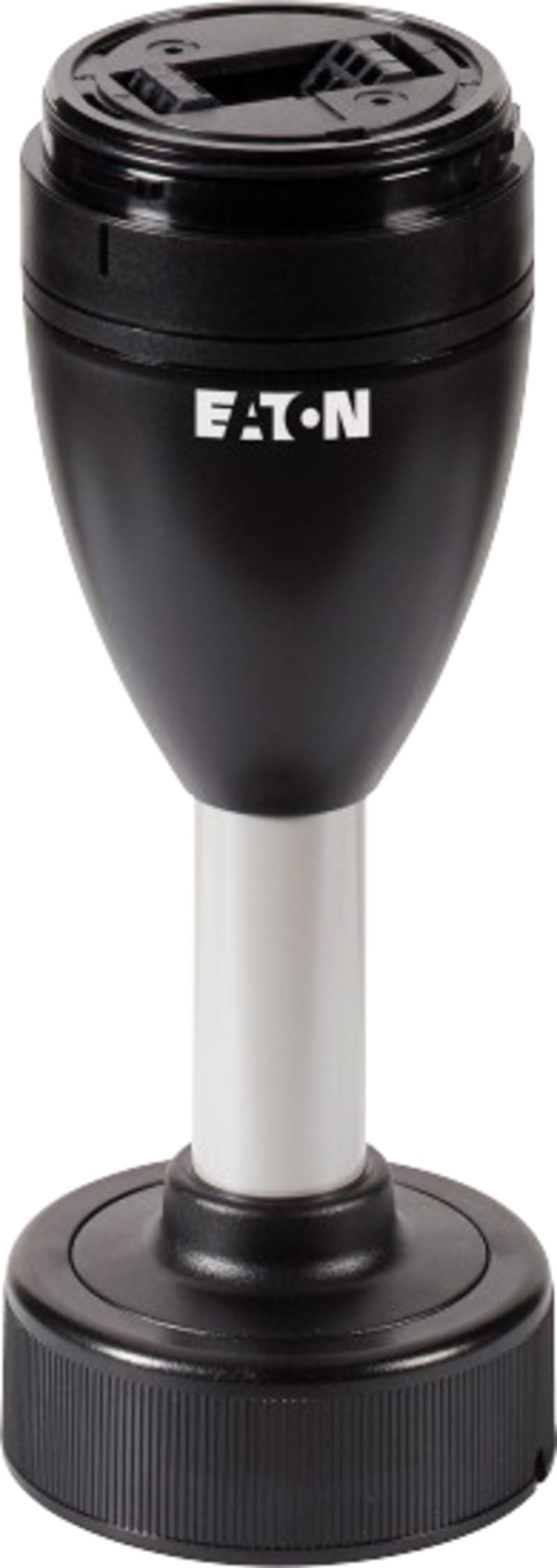

Base, Quick.Inst, 100mm Aluminium Tube (SL7-FMS-100)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Base, Quick.Inst, 100mm Aluminium Tube (SL7-FMS-100) is listed under Metals & Profiles / Bars, Plates & Profiles. Sales unit: pcs; Eaton catalogue number: 171456; Depth: 81 mm; Height: 202 mm; Width: 81 mm; Weight: 0.231 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL7-FMS-100
- EAN / GTIN
- 4015081677856
- Sales unit
- pcs
- Eaton catalogue number
- 171456
- Depth
- 81 mm
- Height
- 202 mm
- Width
- 81 mm
- Weight
- 0.231 kg
- Certifications
- IEC/EN 60529; Certified by UL for use in Canada; UL report applies to both US and Canada; CSA-C22.2 No. 14-10; UL File No.: E29184; CSA Class No.: NKCR7; CE; UL 508; UL Category Control No.: NKCR; CSA-C22.2 No. 94-91; UL; IEC/EN 60947-5-1
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage
- 110/120 V AC ± 10 %; 230/240 V AC ± 10 %; 24 V AC/DC ± 10 %
- Color
- Other
- Fitted with
- Cover; Base adapter for slipping onto place (rapid mounting and wiring system)
- Number of modules
- Max. 5; Max. 5 (with standard base); Max. 10 (with base for mounting on both sides)
- Connection to SmartWire-DT
- No
- Degree of protection
- NEMA 4X; NEMA 4; NEMA 13; IP66
- Mounting Method
- Floor; Horizontal; Bracket
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- Mechanical, According to IEC/EN 60068-2-27; 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
- Tube length
- 100 mm
- Type
- Base module
- Terminal capacity (AWG)
- 24 - 14
- Terminal capacity (flexible with ferrule and plastic collar)
- 0.25 - 1.5 mm²
- Terminal capacity (solid/flexible)
- 0.13 - 2.5 mm²
- Suitable for tube mounting
- No
- Suitable for angle mounting
- Yes
- Suitable for AS interface
- No
- Connection type auxiliary circuit
- Screw connection
- Suitable for M12 connector
- No
- Suitable for IO link
- No
- Suitable for floor mounting
- Yes
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.90
Cross References
- EAN 4015081677856
- SAP 1000492334
- Code 8951853
Product Documentation
More from Eaton
Eaton
Eaton FAZT-C15/2 Miniature Circuit Breaker — 2P, Type C, 15 A, 25 kA
Eaton
Changeover switch HAND-0-AUTO 2P
T0-2-15432/Z
Eaton
Shield clamp 1200A 3/4-POLE xE Main (XDSF12)
Eaton
N rail for fuse enclosure (N43RS33)
Eaton
Base Module (XN-B6T-SBBSBB)
Eaton
LED Steady light, Green, 24V, HP
SL7-L24-G-HP
Eaton

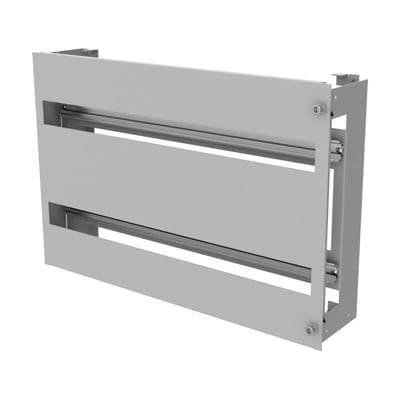

DIN-sk meter panel 3M MSW H425 B1200 xEB
2457643
Eaton

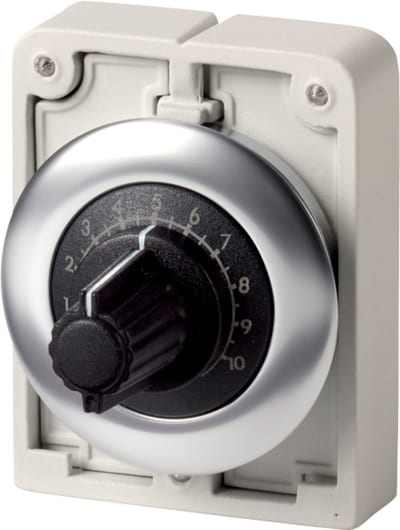

Potentiometer, Flat Front (M30C-FR22K)
