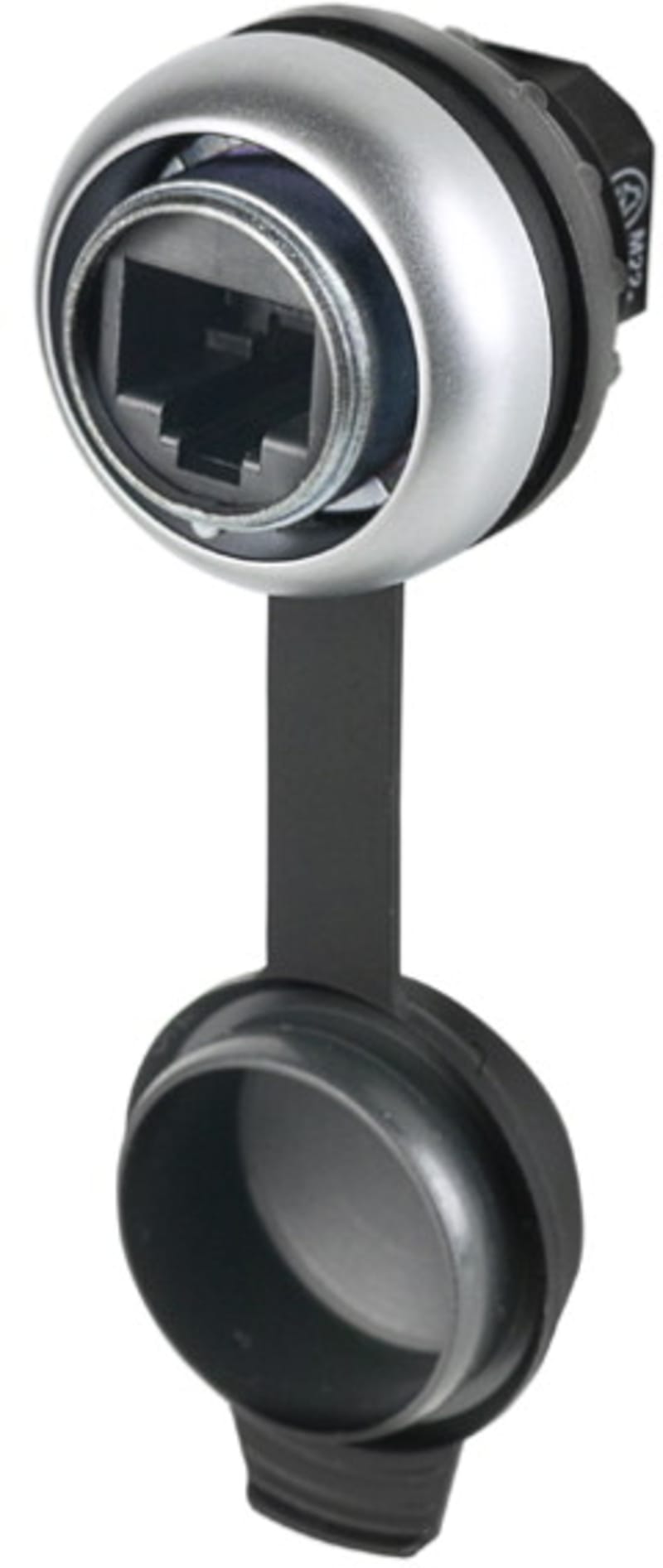

RJ45 Plinth (M22-RJ45-SA)

Eaton RJ45 Plinth (M22-RJ45-SA) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 107413; Depth: 30 mm; Height: 30 mm; Width: 30 mm; Weight: 0.014 kg.

Manufacturer part number (MPN)

M22-RJ45-SA

EAN / GTIN

4015081071517

Sales unit

pcs

Eaton catalogue number

107413

Depth

30 mm

Height

30 mm

Width

30 mm

Weight

0.014 kg

Compliances

CE Marked

Certifications

UL 508; CSA Std. C22.2 No. 142; IEC 6113-2; UL report applies to both US and Canada; Certified by UL for use in Canada; IEC/EN 6113-2; UL File No.: E330994; UL; CSA Class No.: none; CSA-C22.2 No. 142; UL Category Control No.: DUXR, DUXR7; CE

Catalog Notes

RJ45 socket, 8/8, cat. 5e

Bezel color

Titanium

Design

RJ45

Material

Titanium front ring

Number of poles

Eight-pole

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-25 °C

Connection to SmartWire-DT

No

Insulation resistance

≥ 100 MΩ

Nominal current

1500 A

Nominal voltage - max

50 V

Rated operational voltage

24 V AC

Resistance

< 30 mΩ (volume resistance)

Accessory/spare part type

Accessory

Degree of protection

IP65 (with closed cover); IP20 (with plug connected); NEMA 12 (with closed cover)

Lifespan, mechanical

750 insertion cycles

Mounting depth

70 mm

Opening diameter

22.5 mm

Accessory

Yes

Spare part

No

Country of origin

Czechia

HS Code

8536.69

• EAN 4015081071517
• SAP 1000059674
• Code 8865382
