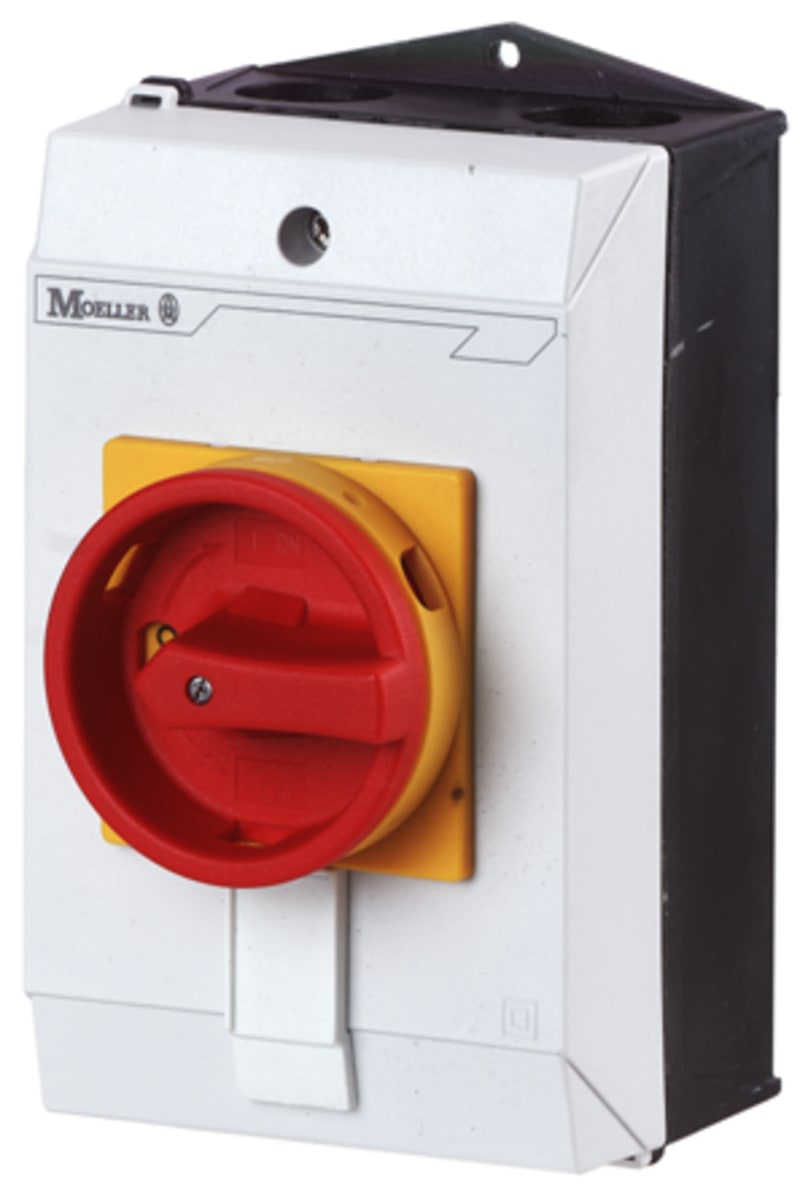

Safety Switch (P1-25/I2/SVB/N)

Eaton Safety Switch (P1-25/I2/SVB/N) is listed under Switchgear & Protection / Safety Switches. Sales unit: pcs; Eaton catalogue number: 207298; Depth: 115 mm; Height: 180 mm; Width: 100 mm; Weight: 0.485 kg.

Manufacturer part number (MPN)

P1-25/I2/SVB/N

EAN / GTIN

4015082072988

Sales unit

pcs

Eaton catalogue number

207298

Depth

115 mm

Height

180 mm

Width

100 mm

Weight

0.485 kg

Compliances

CE Marked

Certifications

IEC 60947; UL 508; CSA Std. C22.2 No. 14-05; EN 60947-3; VDE; CSA; CSA Class No.: 3211-05; CSA File No.: 012528; IEC/EN 60204; IEC/EN 60947; UL 60947-4-1; UL Category Control No.: NLRV; UL File No.: E36332; VDE 0660; CSA-C22.2 No. 60947-4-1-14; CSA-C22.2 No. 94; CE; IEC/EN 60947-3; UL

Catalog Notes

Rated Short-time Withstand Current (Icw) for a time of 1 second

Actuator color

Red

Actuator type

Door coupling rotary drive

Ambient operating temperature - max

40 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Control circuit reliability

1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA)

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Equipment heat dissipation, current-dependent Pvid

1.1 W

Heat dissipation per pole, current-dependent Pvid

1.1 W

Rated operational current for specified heat dissipation (In)

25 A

Rated breaking capacity at 220/230 V (cos phi to IEC 60947-3)

190 A

Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3)

150 A

Rated breaking capacity at 500 V (cos phi to IEC 60947-3)

170 A

Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3)

150 A

Rated operational current (Ie) at AC-21, 440 V

25 A

Rated operational current (Ie) at AC-23A, 230 V

25 A

Rated operational current (Ie) at AC-23A, 400 V, 415 V

25 A

Rated operational current (Ie) at AC-23A, 500 V

17.4 A

Rated operational current (Ie) at AC-23A, 690 V

12.6 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

19.6 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

15.2 A

Rated operational current (Ie) at AC-3, 500 V

12.1 A

Rated operational current (Ie) at AC-3, 660 V, 690 V

8.8 A

Rated operational current (Ie) at DC-23A, 120 V

12 A

Rated operational current (Ie) at DC-23A, 24 V

25 A

Rated operational current (Ie) at DC-23A, 48 V

25 A

Rated operational current (Ie) at DC-23A, 60 V

25 A

Rated operational power at AC-23A, 220/230 V, 50 Hz

5.5 kW

Rated operational power at AC-23A, 400 V, 50 Hz

13 kW

Rated operational power at AC-23A, 500 V, 50 Hz

11 kW

Rated operational power at AC-23A, 690 V, 50 Hz

11 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

7.5 kW

Rated operational power at AC-3, 415 V, 50 Hz

7.5 kW

Rated operational power at AC-3, 500 V, 50 Hz

7.5 kW

Rated operational power at AC-3, 690 V, 50 Hz

7.5 kW

Rated operational voltage (Ue) at AC - max

690 V

Rated uninterrupted current (Iu)

25 A

Uninterrupted current

Rated uninterrupted current Iu is specified for max. cross-section.

Features

Version as main switch; Version as maintenance-/service switch; Version as emergency stop installation

Fitted with

Red rotary handle and yellow locking ring

Functions

Interlockable; Emergency switching off function

Locking facility

Lockable in the 0 (Off) position

Number of poles

4

Accessories

Auxiliary contact fitted by user.

Degree of protection

NEMA 12

Degree of protection (front side)

IP65

Lifespan, mechanical

300,000 Operations

Mounting method

Surface mounting

Mounting position

As required

Operating frequency

1200 Operations/h

Overvoltage category

III

Pollution degree

3

Product Category

Main switch

Rated impulse withstand voltage (Uimp)

6000 V AC

Safe isolation

440 V AC, Between the contacts, According to EN 61140

Safety parameter (EN ISO 13849-1)

B10d values as per EN ISO 13849-1, table C.1

Shock resistance

15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms

Suitable for

Branch circuits, suitable as motor disconnect, (UL/CSA); Ground mounting

Switching angle

90 °

Rated conditional short-circuit current (Iq)

80 kA

Rated short-time withstand current (Icw)

640 A, Contacts, 1 second; 0.64 kA

Short-circuit protection rating

25 A gG/gL, Fuse, Contacts

Load rating

1.3 x Iₑ (with intermittent operation class 12, 60 % duty factor); 1.6 x Iₑ (with intermittent operation class 12, 40 % duty factor); 2 x Iₑ (with intermittent operation class 12, 25 % duty factor)

Number of contacts in series at DC-23A, 120 V

3

Number of contacts in series at DC-23A, 24 V

1

Number of contacts in series at DC-23A, 48 V

2

Number of contacts in series at DC-23A, 60 V

2

Rated making capacity up to 690 V (cos phi to IEC/EN 60947-3)

240 A

Voltage per contact pair in series

60 V

Screw size

M4, Terminal screw

Terminal capacity

1 x (1 - 4) mm², flexible with ferrules to DIN 46228; 2 x (1 - 4) mm², flexible with ferrules to DIN 46228; 1 x (1.5 - 6) mm², solid or stranded; 2 x (1.5 - 6) mm², solid or stranded

Tightening torque

14.1 lb-in, Screw terminals; 1.6 Nm, Screw terminals

Country of origin

United Kingdom

HS Code

8536.50
