Eaton

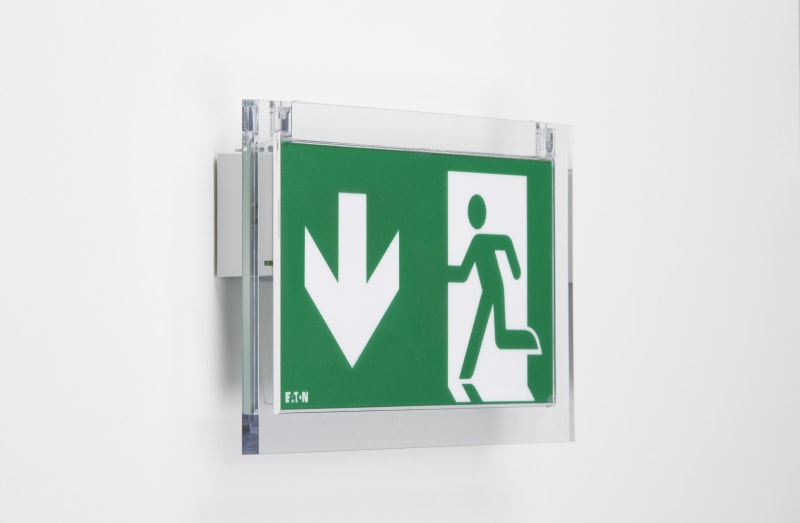

Crystal Way ML 20M ST/CGLine+
Part numberLUM17122EAN / GTIN7022241012904HS code8507.60
Lighting & Electrical Accessories
Emergency Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton LUM17122 Crystal Way ML 20m ST/CGLine+.
Technical Specifications
- Manufacturer part number (MPN)
- LUM17122
- EAN / GTIN
- 7022241012904
- Sales unit
- pcs
- Length
- 20 m
- Suitable for continuous circuit
- No
- Suitable for standby switching
- No
- Mounting method
- Wall surface mounting/ceiling surface mounting
- Function
- Escape route signage
- Suitable for labelling type
- Insert sheet/plate
- Type of indicator
- Single/double-sided
- With pictogram
- Yes
- Monitoring equipment
- Safety module for monitoring (central feeded system)
- Wiring system
- Continuous circuit/emergency circuit
- With remote switch connection
- No
- With remote control
- No
- Power supply system
- Peripheral (individual battery)
- Battery technology
- Lithium-ion
- Lamp type
- LED not exchangeable
- With light source
- No
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Number of lighting heads
- 24
- Housing material
- Plastic
- Housing colour
- White
- Material cover
- Plastic, transparent
- Nominal current
- 3–11 mA
- Voltage type
- AC
- Nominal voltage
- 220–240 V
- Type of control gear
- LED operating device current-controlled
- Exchangeable control gear
- No
- Light distributor
- Diffuser lens/optic/panel
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Rated lifetime L70/B50 at 25 °C
- 100000 h
- Constant light output (CLO)
- No
- Degree of protection (IP)
- IP42
- Impact strength
- IK04
- Protection class according to IEC 61140
- II
- Rated ambient temperature according to IEC 62722-2-1
- 5–40 °C
- Max. system power
- 2.5 W
- Rated luminous flux according to IEC 62722-2-1
- 60 lm
- Luminous flux in standby mode
- 3 lm
- Colour temperature
- 5053–6500 K
- Power factor
- 0.7
- Recognition distance
- 20 m
- Nominal operation time
- 1–8 h
- Width
- 37 mm
- Height/depth
- 133 mm
- Built-in width
- 47 mm
- Built-in height/depth
- 155 mm
- Built-in length
- 202 mm
- Type of wiring
- Loop-through wiring included
- Number of poles
- 2
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- RAL-number housing
- 9003
- Connectable conductor cross section
- 0.5–2.5 mm²
- Emergency power supply system
- Peripheral (individual battery)
- Power consumption in emergency mode
- 2.3 W
- Emergency function monitoring system
- Automatic self test
- With heating element for battery
- No
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8507.60
Cross References
- EAN 7022241012904
- SAP 1200610622
- Code 83013523
Product Documentation
Document preview: Crystal Way ML 20M ST/CGLine+ (LUM17122) — Specification sheet
More from Eaton
Eaton

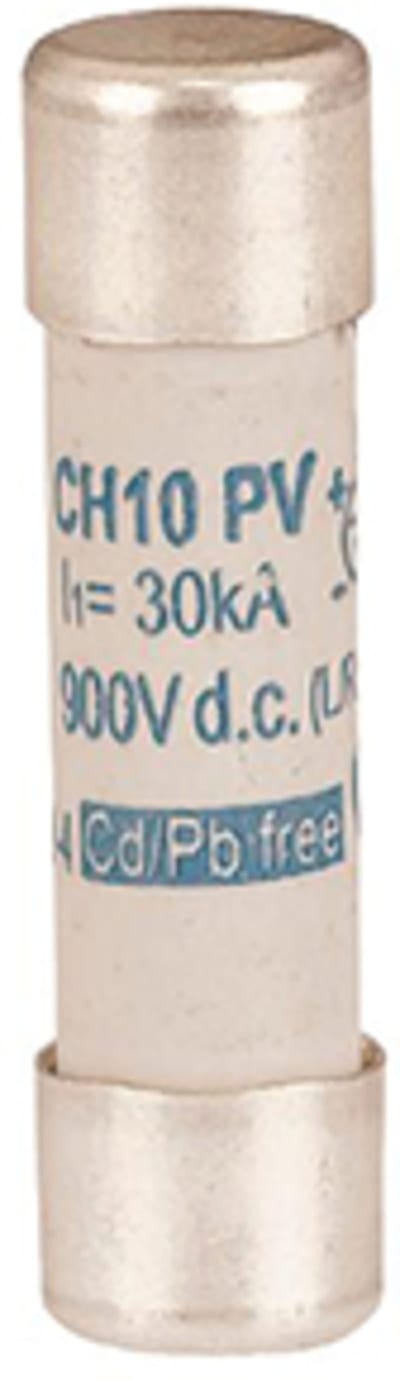

Fuse Link (ASFLC10-20A-GSOLCELLE-SOL)
ASFLC10-20A-Gsolcelle-SOL
Eaton

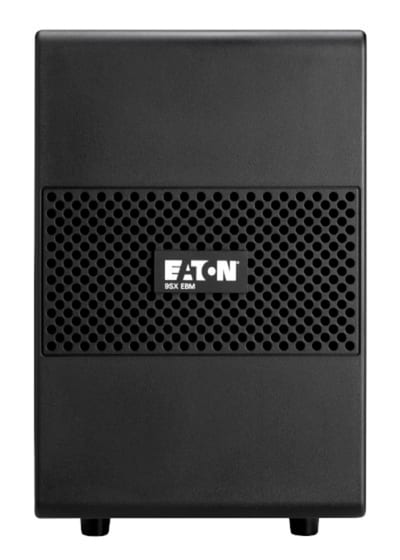

BatteriMod for 9SX 5/6KVA UPS
9SXEBM240T
Eaton
Selector switch Impulse HAND-O-AUTO (207071)
Eaton

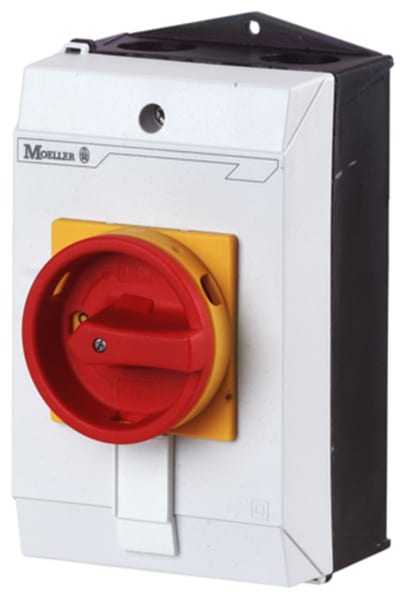

Safety Switch (P1-25/I2/SVB/N)
Eaton

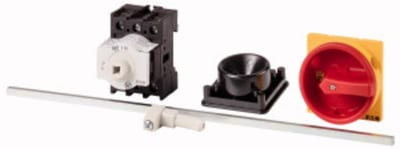

Safety Switch (P1-25/M4/SVB)
Eaton

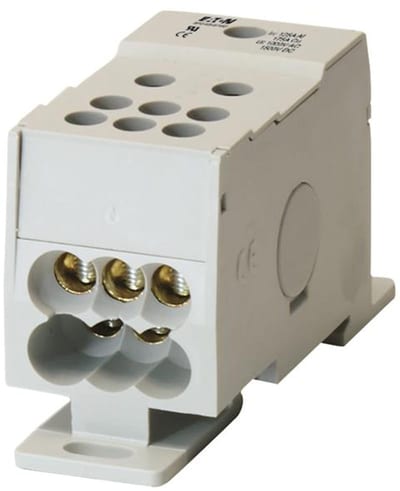

Terminal Block 1P. 160A 6 output
BPZ-KB-6/160
Eaton

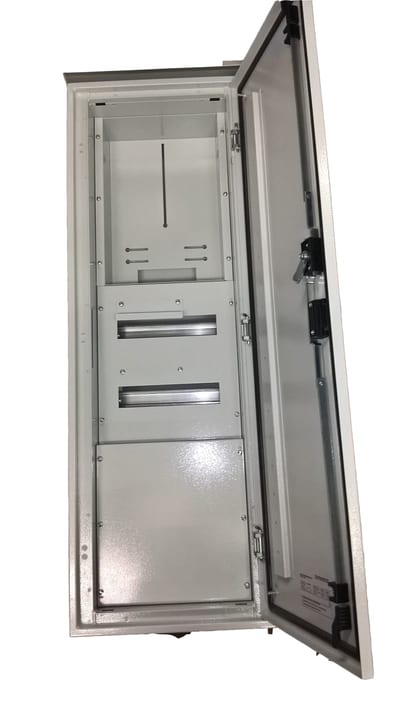

Connection Enclosure B400 ALUMINIUM empty grey
Y7-187899
Eaton

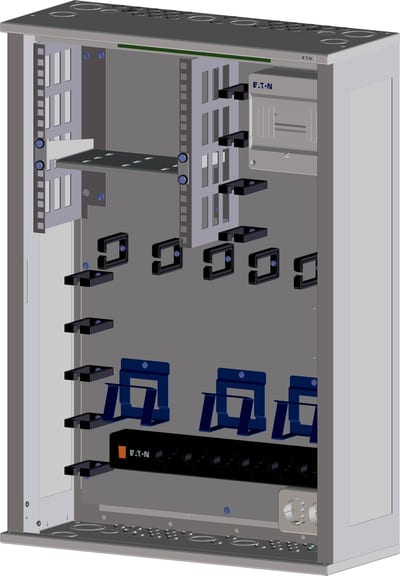

BI Multimedia cabinet
