Eaton

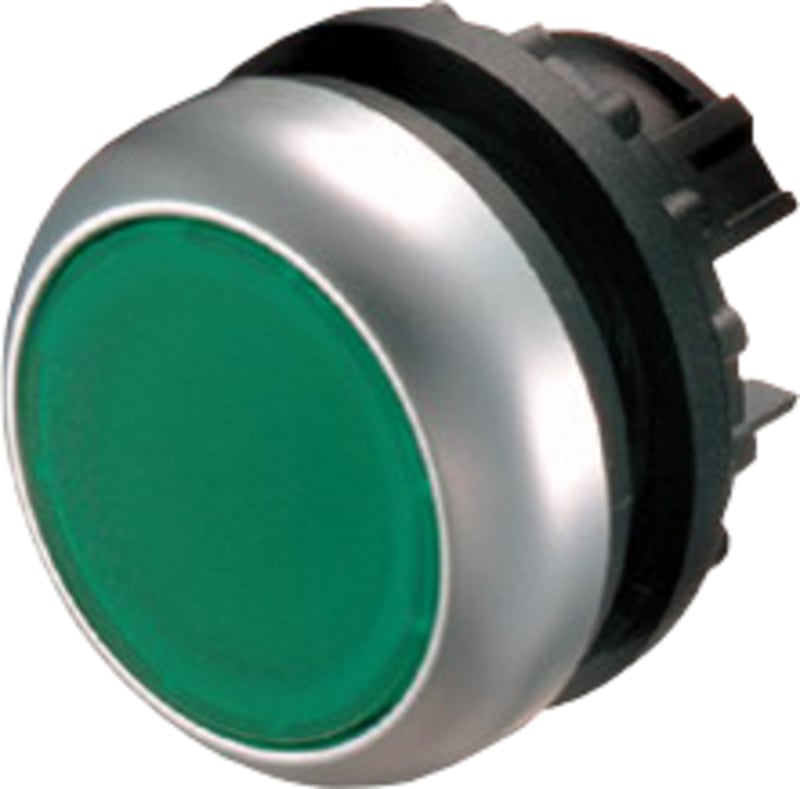

Illuminated Push Button Green Pressure/Pressure
Part numberM22-DRL-GEAN / GTIN4015082169480HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-DRL-G Illuminated Push Button Green Pressure/Pressure.
Technical Specifications
- Manufacturer part number (MPN)
- M22-DRL-G
- EAN / GTIN
- 4015082169480
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216948
- Depth
- 30 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.012 kg
- Compliances
- CE Marked
- Certifications
- CSA Std. C22.2 No. 14-05; EN 60947-5; UL 508; IEC 60947-5; CSA Std. C22.2 No. 94-91; VDE; CSA File No.: 012528; CSA; CSA-C22.2 No. 14-05; UL; UL Category Control No.: NKCR; IEC/EN 60947; VDE 0660; CSA Class No.: 3211-03; CSA-C22.2 No. 94-91; IEC/EN 60947-5; CE; UL File No.: E29184; DNV; GL; LR
- Actuating force
- 5 N
- Actuator color
- Green
- Actuator function
- Switching function latching; Maintained
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Flush; Classical
- Fitted with
- Front ring
- Functions
- Stay-put/spring-return function can be changed on device
- Inscription
- Blank
- Lens type
- Round
- Number of command positions
- 1
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Degree of protection
- NEMA 3R; NEMA 13; IP66; IP69K; NEMA 4X; NEMA 12; IP67
- Degree of protection (front side)
- NEMA 4X; IP67/IP69K
- Lifespan, mechanical
- 1,000,000 Operations (AC operated)
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 1800 Operations/h
- Product category
- RMQ-Titan
- Size
- Front diameter: 29.7 mm
- Suitable for
- Illumination
- Type
- Illuminated pushbutton actuator
- Hole diameter
- 22 mm
- Colour button
- Green
- Suitable for lighting
- Yes
- Spring-return
- Yes
- Labelled
- No
- Type of button
- Flat
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP67/IP69K
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082169480
- SAP 1000026039
- Code 8500637
Product Documentation
Document preview: ILLUMINATED PUSH BUTTON GREEN TRYKK/TRYKK (M22-DRL-G) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eaton 9PX ModularEasy 11000I
9PXMEZ11Ki
Eaton
LED Steady light, Blue, 24V, HP
SL7-L24-B-HP
Eaton
Door double G2 SbS 6-Row 106 - 150 mm
EP-501150
Eaton
Front plate xE Light (XLMFGC358)
Eaton
Front plate modular screw H150 B400 xE B
BPZ-FP-S-400/150-45
Eaton
Eaton IZMX-MIL32C-W40-1
Eaton
Variable-frequency drive 690V 110 kW
SPX125A1-5A4N1
Eaton

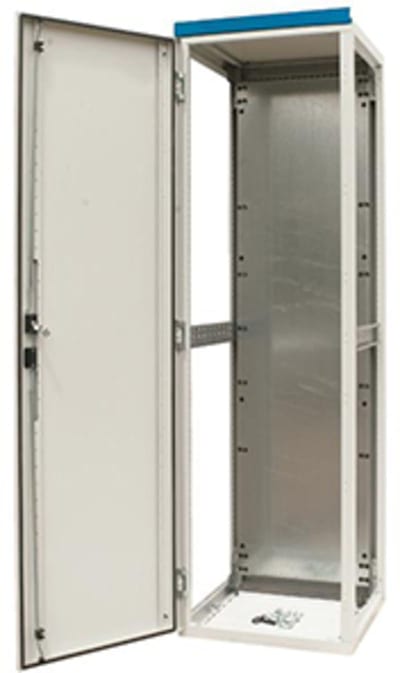

Cabinet H×W×D=1800X1000X500MM (XVTL-MP/BX/IC-10/5/18)
