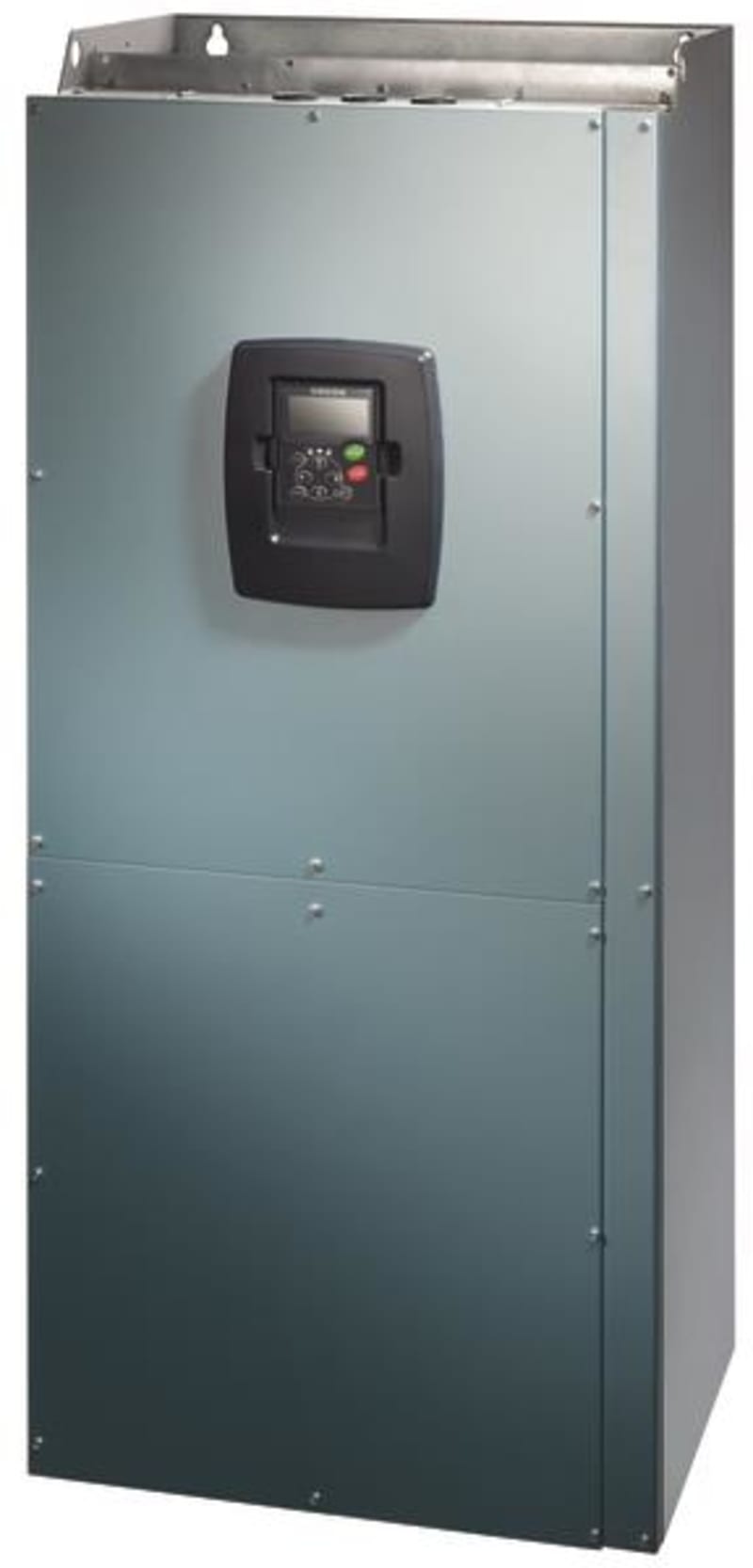

Variable-frequency drive 690V 110 kW

Eaton Variable-frequency drive 690V 110 kW (part number SPX125A1-5A4N1) is listed under Drives & Controllers / Variable Frequency Drives. HS code: 8504.40; Sales unit: pcs; Eaton catalogue number: 125375; Depth: 362 mm; Height: 1150 mm; Width: 480 mm.

Manufacturer part number (MPN)

SPX125A1-5A4N1

EAN / GTIN

4015081229819

HS code

8504.40

Sales unit

pcs

Eaton catalogue number

125375

Depth

362 mm

Height

1150 mm

Width

480 mm

Weight

146 kg

Altitude

Max. 3000 m; Max. 1000 m; Above 1000 m with 1 % performance reduction per 100 m

Ambient operating temperature - max

50 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-10 °C

Ambient operating temperature at 150% overload - max

50 °C

Ambient operating temperature at 150% overload - min

-10 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

< 95 % relative humidity, no condensation, no corrosion, no dripping water

Communication interface

DeviceNet, optional; PROFIBUS-DP; Modbus-TCP, optional; BACnet/IP, optional; CANopen®, optional; LonWorks, optional; BACnet MS/TP, optional; EtherCAT, optional; Ethernet IP, optional; Modbus-RTU, optional; PROFINET, optional

Connection to SmartWire-DT

No

Number of inputs (analog)

2 (parameterizable, 0 - 10 V DC, 0/4 - 20 mA)

Number of inputs (digital)

6 (parameterizable, max. 30 V DC)

Number of outputs (analog)

1

Number of outputs (digital)

1 (parameterizable, 48 V DC/50 mA)

Number of relay outputs

2 (parameterizable, N/O, 8 A (24 V DC) / 8 A (250 V AC) / 0,4 A (125 V DC))

Rated control voltage (Uc)

24 V DC (external, max. 250 mA)

Equipment heat dissipation, current-dependent Pvid

2750 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation details

Operation (with 150 % overload)

Heat dissipation per pole, current-dependent Pvid

0 W

Rated operational current for specified heat dissipation (In)

125 A

Static heat dissipation, non-current-dependent Pvs

0 W

Degree of protection

IP21; NEMA Other

Electromagnetic compatibility

1st and 2nd environments (according to EN 61800-3)

Fitted with

OLED display; DC link choke; IGBT inverter; Internal DC link; Radio interference suppression filter

Frame size

FR9

Mounting position

Vertical

Product Category

Variable frequency drives

Protection

Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)

Radio interference class

C2

C3

depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.

Suitable for

Branch circuits, (UL/CSA)

Mains voltage - max

690 V

Mains voltage - min

525 V

Operating mode

U/f control; Optional: Vector control with feedback (CLV); Sensorless vector control (SLV)

Output frequency - max

320 Hz

Output frequency - min

0 Hz

Output voltage (U2)

600 V AC, 3-phase; 690 V AC, 3-phase

Rated control supply voltage

10 V DC (Us, max. 10 mA)

Rated frequency - max

66 Hz

Rated frequency - min

45 Hz

Rated operational current (Ie) at 110% overload

144 A

Rated operational current (Ie) at 150% overload

125 A

Rated operational power at 690 V

50 Hz

110 kW

Rated operational power at 690 V, 50 Hz

110% overload

132 kW

Rated operational voltage

600 V AC, 3-phase; 690 V AC, 3-phase

Resolution

0.01 Hz (Frequency resolution, setpoint value)

Supply frequency

50/60 Hz

Switching frequency

1.5 kHz, 1 - 6 kHz adjustable, fPWM, Power section, Main circuit

System configuration type

AC supply systems with earthed center point

Voltage rating - max

690 VAC

Assigned motor current IM at 690 V, 50 Hz

110% overload

134 A

Assigned motor current IM at 690 V, 50 Hz

150% overload

114 A

Assigned motor current IM at 690 V, 60 Hz

110% overload

125 A

Assigned motor current IM at 690 V, 60 Hz

150% overload

109 A

Assigned motor power at 690 V

60 Hz

125 HP

Assigned motor power at 690 V, 60 Hz

110% overload

150 HP

HS Code

8504.40

• EAN 4015081229819
• SAP 1200132345
• Code 81994534
