Eaton

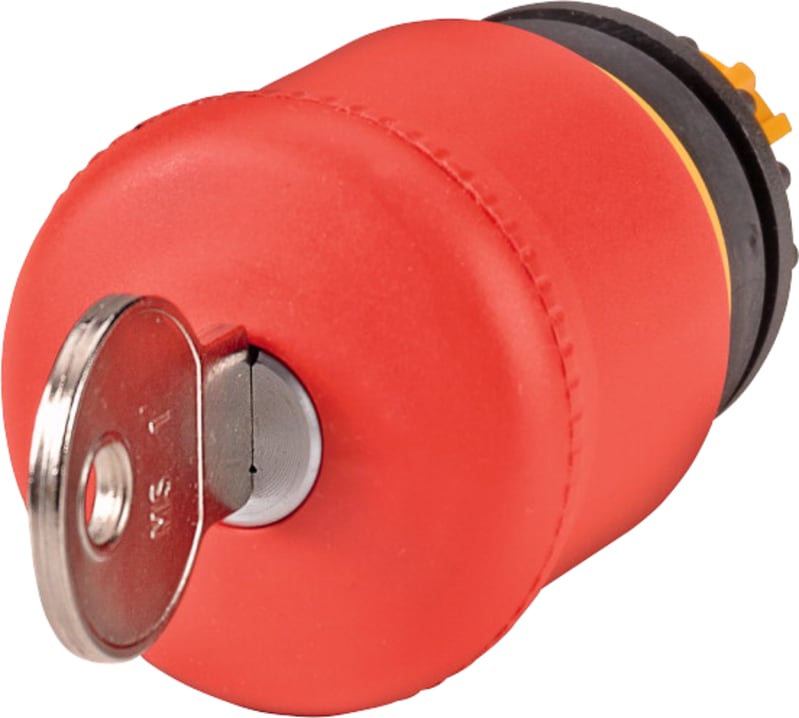

Emergency Stop Button Lockable with Wrench
Part numberM22-PVSEAN / GTIN4015082168797HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-PVS Emergency stop button Lockable with Key.
Technical Specifications
- Manufacturer part number (MPN)
- M22-PVS
- EAN / GTIN
- 4015082168797
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216879
- Depth
- 93 mm
- Height
- 38 mm
- Width
- 38 mm
- Weight
- 0.06 kg
- Compliances
- CE Marked
- Certifications
- EN 60947-5; IEC 60947-5; CSA Std. C22.2 No. 94-91; CSA Std. C22.2 No. 14-05; UL 508; VDE; CSA File No.: 012528; CSA-C22.2 No. 94-91; VDE 0660; UL; CE; IEC/EN 60947; UL File No.: E29184; CSA Class No.: 3211-03; IEC/EN 60947-5; UL Category Control No.: NKCR; CSA; CSA-C22.2 No. 14-05; DNV; GL; LR
- Catalog Notes
- Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11
- Actuating force
- 50 N
- Actuator color
- Red
- Actuator diameter
- 38 mm
- Actuator function
- Key-release; Switching function latching
- Color
- Red
- Design
- Mushroom-shaped; Classical
- Illumination
- Non-illuminated
- Unlocking method
- Key-release
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- No
- Base color
- Yellow
- Bezel color
- Other
- Bezel material
- Other
- Features
- Tamper-proof (according to ISO 13850, EN 418)
- RAL-number
- 3000
- Accessories
- 1 key included with supplied equipment.
- Degree of protection
- IP67/IP69K; NEMA 4X, 13
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 600 Operations/h
- Product category
- RMQ-Titan
- Size
- Front dimensions: 35 mm
- Suitable for
- Emergency stop
- Type
- Controlled stop pushbutton/emergency-stop button
- Hole diameter
- 22 mm
- Colour button
- Red
- Suitable for lighting
- No
- Spring-return
- No
- Diameter cap
- 38 mm
- Suitable for emergency stop
- Yes
- Type of button
- Flat
- Colour front ring
- Chrome
- With lighting
- No
- Material front ring
- Plastic
- With front ring
- No
- Construction type lens
- Round
- Switching function latching
- Yes
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082168797
- SAP 1000023563
- Code 8186583
Product Documentation
Document preview: Emergency Stop Button Lockable M/Wrench (M22-PVS) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Cable duct TKS B600 dark
195385
Eaton
SOL30X6-Safety-MC4-U(230V50HZ) (168104)
Eaton
Motor Protection Relay 6-10A (ZB12-10)
Eaton
Fan with filter 171 m³/h 223X223
Y7-167290
Eaton
Eaton NH000 Knife-Blade Fuse 40 A AC 690 V 120 kA gL/gG
40NHG000BI-690
Eaton
Residual current circuit breaker with overcurrent 16A 3P C 100MAA (PKPM3-16/3/C/01-LI/A)
PKPM3-16/3/C/01-Li/A
Eaton

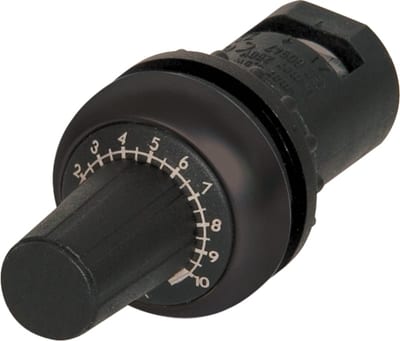

Potentiometer 100 KOHM, Black
