Eaton

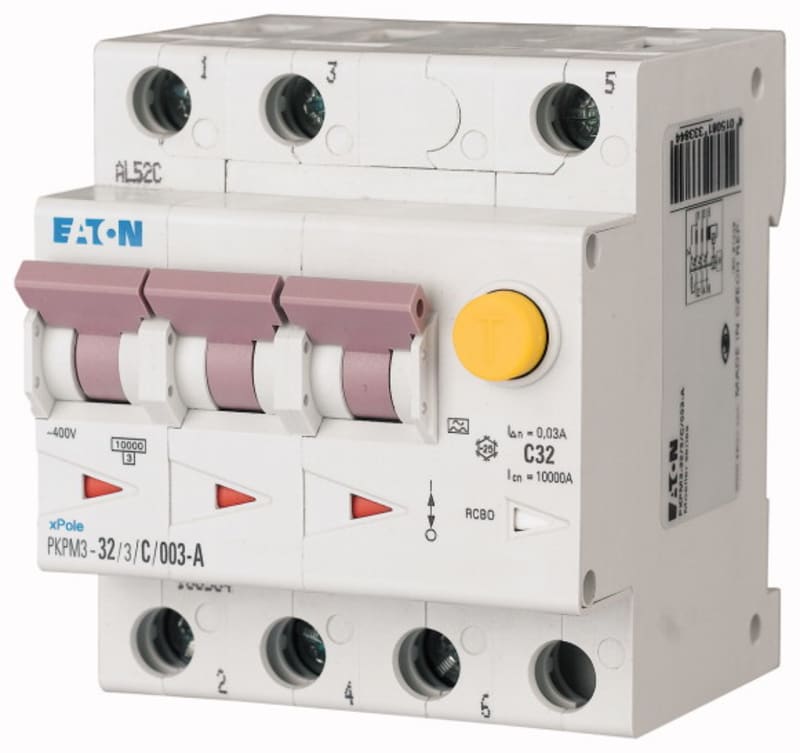

Residual current circuit breaker with overcurrent 16A 3P C 100MAA (PKPM3-16/3/C/01-LI/A)
Part numberPKPM3-16/3/C/01-Li/AEAN / GTIN9010238800311HS code8536.90
Electrical Components
RCDs & RCBOs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton PKPM3-16/3/C/01-Li/A PKPM3-16/3/C/01-Li/A.
Technical Specifications
- Manufacturer part number (MPN)
- PKPM3-16/3/C/01-Li/A
- EAN / GTIN
- 9010238800311
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 196661
- Depth
- 86 mm
- Height
- 75 mm
- Width
- 73 mm
- Weight
- 0.39 kg
- Compliances
- CE Marked; RoHS conform
- Certifications
- CE
- Amperage Rating
- 16 A
- Voltage rating
- 230 V
- Surge current capacity
- 0.25 kA
- Voltage type
- AC
- Width in number of modular spacings
- 4
- Features
- Anti-nuisance tripping version
- Device height
- 80 mm
- Mounting style
- Tri-stable slide catch - enables removal from existing busbar combination
- Operating ambient temperature - max
- 40 °C
- Operating ambient temperature - min
- -25 °C
- Product application
- Switchgear for residential and commercial applications
- Product range
- PKPM3
- Rated current
- 16 A
- Rated fault currents of product range
- 10, 30, 100 MilliAmpere
- Rated switching capacity (IEC/EN 61009)
- 10000 kA
- Tripping characteristic
- C
- Built-in depth
- 69.5 mm
- Current limiting class
- 3
- Rated short-circuit breaking capacity (EN 60947-2)
- 0 kA
- Frame
- 45 mm
- Terminal protection
- Finger and hand touch safe, DGUV VS3, EN 50274
- Terminals (top and bottom)
- Twin-purpose
- Ambient operating temperature - max
- 40 °C
- Ambient operating temperature - min
- -25 °C
- Fault current rating
- 0.1 A
- Number of poles (protected)
- 3
- Number of poles (total)
- 3
- Rated operational voltage (Ue) - max
- 400 V
- Rated switching capacity
- 10 kA
- Basic function
- Combined RCD/MCB devices
- Mounting Method
- DIN rail
- Climatic proofing
- IEC/EN 61009
- Equipment heat dissipation, current-dependent
- 8.6 W
- Rated impulse withstand voltage (Uimp)
- 4 kV
- Degree of protection (built in)
- IP20, IP40 when fitted
- Degree of protection
- IP20, IP40 when fitted; IP20
- Tripping
- Non-delayed
- Overvoltage category
- III
- Built-in width
- 70 mm
- Pollution degree
- 2
- Material thickness
- 2 mm
- Rated non-tripping current
- 0.5 A
- Leakage current type
- A
- Release characteristic
- C
- Sensitivity type
- Type A, pulse-current sensitive
- Frequency rating
- 50 Hz
- Rated insulation voltage (Ui)
- 500 V
- Connectable conductor cross section (solid-core) - min
- 1 mm²
- Connectable conductor cross section (solid-core) - max
- 25 mm²
- Connectable conductor cross section (multi-wired) - min
- 1 mm²
- Connectable conductor cross section (multi-wired) - max
- 25 mm²
- Rated short-circuit breaking capacity (EN 61009)
- 10 kA
- Rated short-circuit breaking capacity (EN 61009-1)
- 10 kA
- Voltage rating at AC
- 230 V
- Number of poles
- Three-pole
- Disconnection characteristic
- Short-time delayed
- Lifespan, electrical
- 2000 operations
- Lifespan, mechanical
- 10000 operations
- Type
- RCBO
- Application
- xPole - Switchgear for residential and commercial applications
- Selectivity class
- 3
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 9010238800311
- SAP 1200183288
- Code 82116553
Product Documentation
Document preview: Residual current circuit breaker with overcurrent 16A 3p C 100mAA (PKPM3-16/3/C/01-Li/A) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Potentiometer 100 KOHM, Black
M22S-R100K
Eaton
Eaton SL7 Bulb-Change Tool for Signal Tower Incandescent Lamp
SL7/4-BET
Eaton
Eaton FAZT-D20/3 Miniature Circuit Breaker — 3P, Type D, 20 A, 25 kA
Eaton

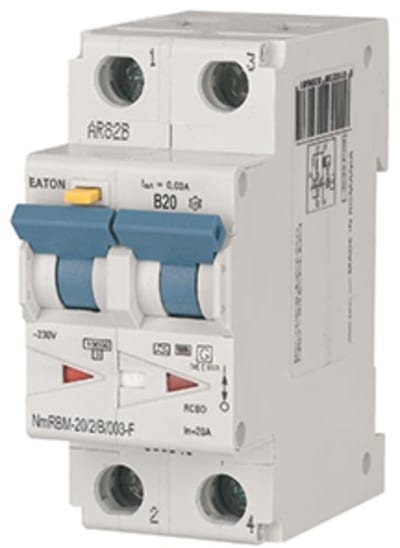

Residual current circuit breaker with overcurrent 20A B Type-F
MB-300119
Eaton
Eaton FAZT-B16/4 Miniature Circuit Breaker — 4P, Type B, 16 A, 25 kA
Eaton

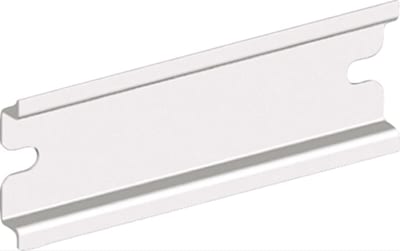

MIV-15 Snapprail (MIV15)
Eaton

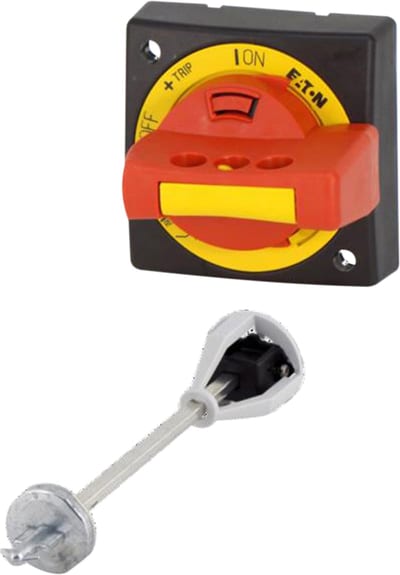

Doorgrep motor protection (PKE-XRH)
