Eaton

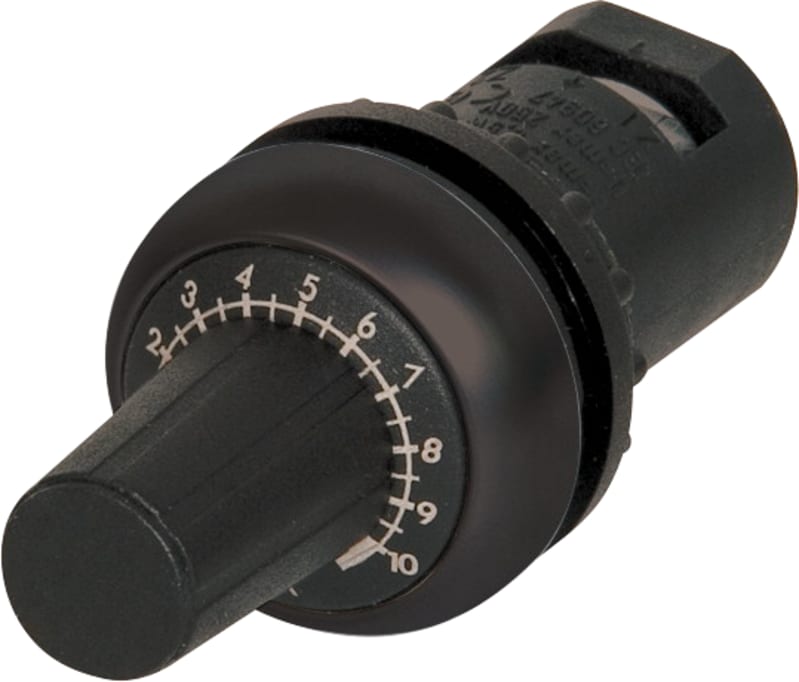

Potentiometer 100 KOHM, Black
Part numberM22S-R100KEAN / GTIN4015082322359HS code8533.29
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22S-R100K Potentiometer, 100k, front.
Technical Specifications
- Manufacturer part number (MPN)
- M22S-R100K
- EAN / GTIN
- 4015082322359
- Sales unit
- pcs
- Eaton catalogue number
- 232235
- Depth
- 70 mm
- Height
- 29 mm
- Width
- 29 mm
- Weight
- 0.034 kg
- Certifications
- UL File No.: E29184; IEC/EN 60947-5; CSA File No.: 012528; UL Category Control No.: NKCR; CSA-C22.2 No. 14-05; VDE 0660; CSA; CE; UL 508; UL; CSA Class No.: 3211-03; CSA-C22.2 No. 94-91; IEC/EN 60947
- Bezel color
- Black
- Design
- Classical
- Electric connection type
- Screw connection
- Fitted with
- 3 individual screw terminals
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- No
- Static heat dissipation, non-current-dependent Pvs
- 0.5 W
- Power consumption
- 0.5 W
- Rated insulation voltage (Ui)
- 250 V
- Rated power
- 0.5 VA
- Resistance
- 100000 Ohm
- Degree of protection
- IP66; NEMA Other
- Lifespan, mechanical
- 25,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Overvoltage category
- III
- Pollution degree
- 3
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Type
- Potentiometer
- Terminal capacity (solid)
- 0.5 - 1.5 mm²
- Terminal capacity (stranded)
- 0.5 - 1.5 mm²
- Tightening torque
- 0.5 Nm, Screw terminals
- Hole diameter
- 22 mm
- Type of electric connection
- Screw connection
- Number of revolutions
- 1
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 8533.29
Cross References
- EAN 4015082322359
- SAP 1000071123
- Code 8561535
Product Documentation
Document preview: POTENSIOMETER 100 KOHM, BLACK (M22S-R100K) — Specification Data Sheet (OEM)
