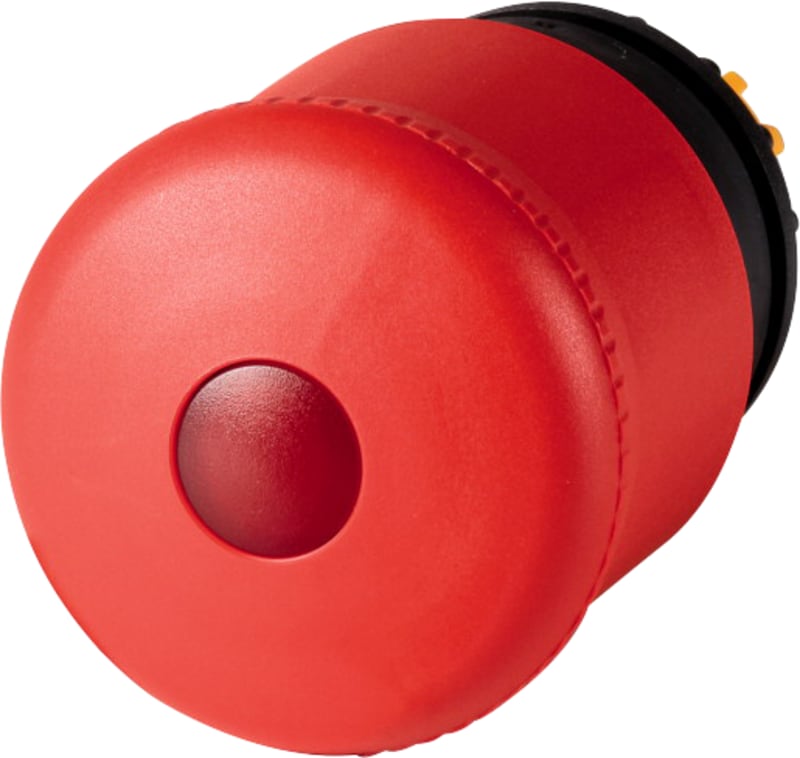

Eaton M22-PVL Illuminated Emergency-Stop Push-Pull Actuator

Eaton M22-PVL illuminated emergency-stop actuator with 38 mm mushroom head and LED illumination. The push-pull latching function meets ISO 13850 / EN 418 tamper-proof requirements and is rated IP66 and IP69K for wash-down environments. Ambient operating range is -25 degC to +70 degC with a mechanical life of 100,000 operations.

Manufacturer part number (MPN)

M22-PVL EAN / GTIN: 4015082168780 Sales unit: pcs Package quantity: 5 pcs Eaton catalogue number: 216878 Depth: 38 mm Height: 70 mm Width: 38 mm Weight: 0.039 kg Compliances: CE Marked Certifications: CSA Std. C22.2 No. 14-05; UL 508; CSA Std. C22.2 No. 94-91; EN 60947-5; IEC 60947-5; VDE; UL; IEC/EN 60947; UL Category Control No.: NKCR; CSA; IEC/EN 60947-5; UL File No.: E29184; CSA Class No.: 3211-03; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; VDE 0660; CE; CSA File No.: 012528; DNV; GL; LR Catalog Notes: Max. Configuration: 4 x M22-(C)K01, …10 or 2 x M22-(C)K02, …20, …11 and 1 x M22-(F)LED... - When using M22-PVL… with 1 x M22-K01SMC10 (single channel), article M22-XSMC (order no.: 173030) is required. Order this item separately. Actuating force: 50 N Actuator color: Red Actuator diameter: 38 mm Actuator function: Switching function latching; Pull-to-release Color: Red Design: Mushroom-shaped; Classical Illumination: Illuminated with LED element Unlocking method: Pull-release Ambient operating temperature - max: 70 °C Ambient storage temperature - max: 80 °C Ambient operating temperature - min: -25 °C Climatic proofing: Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78 Connection to SmartWire-DT: No Base color: Yellow Bezel color: Other Bezel material: Other Features: Tamper-proof (according to ISO 13850, EN 418) RAL-number: 3000 Degree of protection: IP66; NEMA 4X, 13 Lifespan, mechanical: 100,000 Operations Mounting position: As required Opening diameter: 22.5 mm Operating frequency: 600 Operations/h Product category: RMQ-Titan Size: Front dimensions: 35 mm Suitable for: Emergency stop; Illumination Type: Controlled stop pushbutton/emergency-stop button Hole diameter: 22 mm Colour button: Red Suitable for lighting: Yes Spring-return: No Diameter cap: 38 mm Suitable for emergency stop: Yes Type of button: Flat Colour front ring: Chrome With lighting: No material front ring: Plastic With front ring: No Construction type lens: Round Switching function latching: Yes Country of origin: Germany

HS Code

8536.50

• EAN 4015082168780
• SAP 1000040040
• Code 8746512
