Emergency Stop Button Pressure/pull

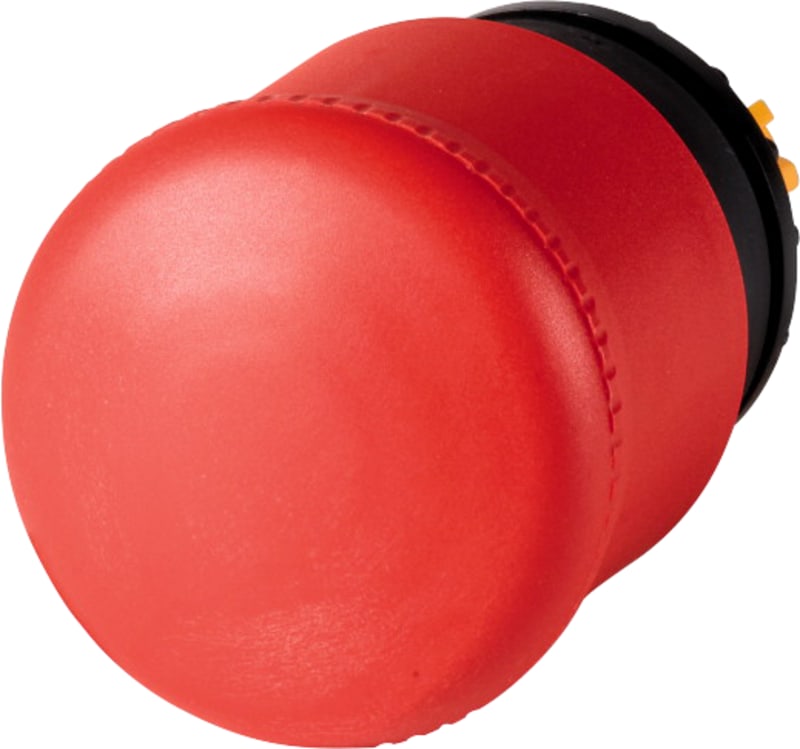

Eaton M22-PV Emergency stop button Pressure/pull.

Manufacturer part number (MPN)

M22-PV EAN / GTIN: 4015082168766 Sales unit: pcs Package quantity: 5 pcs Eaton catalogue number: 216876 Depth: 38 mm Height: 70 mm Width: 38 mm Weight: 0.039 kg Compliances: CE Marked Certifications: EN 60947-5; CSA Std. C22.2 No. 94-91; IEC 60947-5; UL 508; CSA Std. C22.2 No. 14-05; VDE; UL; CE; CSA File No.: 012528; IEC/EN 60947-5; CSA; IEC/EN 60947; UL File No.: E29184; CSA Class No.: 3211-03; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; VDE 0660; UL Category Control No.: NKCR; DNV; GL; LR Catalog Notes: Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11 Actuating force: 50 N Actuator color: Red Actuator diameter: 38 mm Actuator function: Pull-to-release; Switching function latching Color: Red Design: Mushroom-shaped; Classical Illumination: Non-illuminated Unlocking method: Pull-release Ambient operating temperature - max: 70 °C Ambient operating temperature - min: -25 °C Climatic proofing: Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30 Connection to SmartWire-DT: No Base color: Yellow Bezel color: Other Bezel material: Other Features: Tamper-proof (according to ISO 13850, EN 418) RAL-number: 3000 Degree of protection: IP66; NEMA 4X, 13 Lifespan, mechanical: 100,000 Operations Mounting position: As required Opening diameter: 22.5 mm Operating frequency: 600 Operations/h Product category: RMQ-Titan Size: Front dimensions: 35 mm Suitable for: Emergency stop Type: Controlled stop pushbutton/emergency-stop button Hole diameter: 22 mm Colour button: Red Suitable for lighting: No Spring-return: No Diameter cap: 38 mm Suitable for emergency stop: Yes Type of button: Flat With lighting: No With front ring: No Construction type lens: Round Switching function latching: Yes Country of origin: Germany

HS Code

8538.90

• EAN 4015082168766
• SAP 1000061156
• Code 8919188
