Eaton M22 Rotary Switch with Grip 2 Fixed Positions

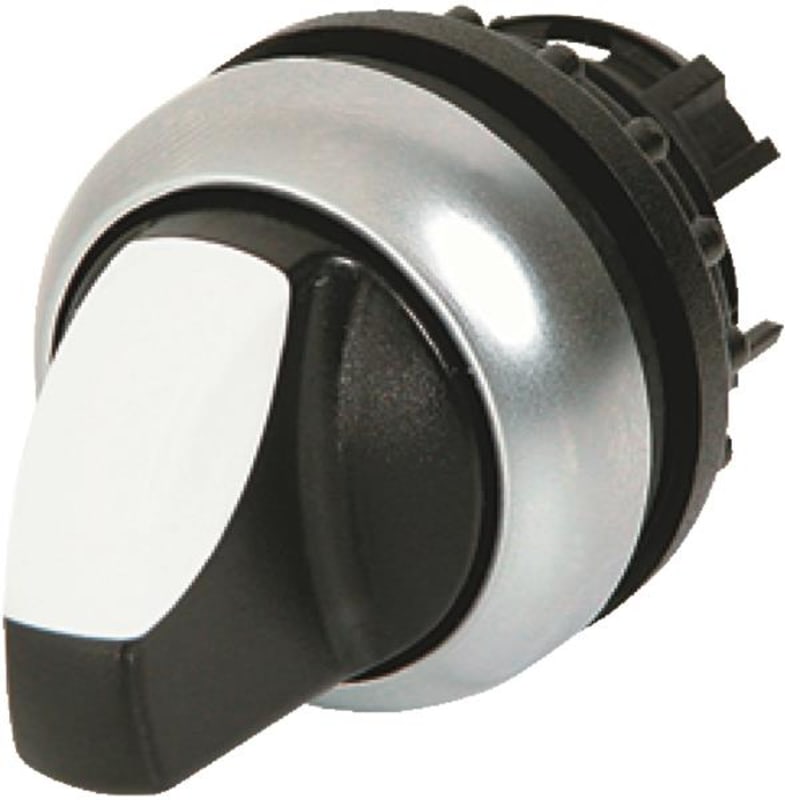

Eaton M22-WRK rotary switch with thumb-grip and 2 fixed (latching) positions. Part of the RMQ-Titan series with 22.5 mm mounting and IP66 protection, featuring a black actuator on a titanium bezel. Rated for 100,000 mechanical operations.

Manufacturer part number (MPN)

M22-WRK

EAN / GTIN

4015082168674

Sales unit

pcs

Package quantity

10 pcs

Eaton catalogue number

216867

Depth

46 mm

Height

30 mm

Width

30 mm

Weight

0.013 kg

Compliances

CE Marked

Certifications

IEC 60947-5; CSA Std. C22.2 No. 94-91; CSA Std. C22.2 No. 14-05; EN 60947-5; UL 508; VDE; CSA Class No.: 3211-03; UL Category Control No.: NKCR; CSA-C22.2 No. 94-91; IEC/EN 60947; CE; UL; CSA; UL File No.: E29184; CSA File No.: 012528; CSA-C22.2 No. 14-05; IEC/EN 60947-5; VDE 0660; DNV; GL; LR

Actuator color

Black

Actuator function

Maintained; Switching function latching

Actuator type

Toggle

Bezel color

Titanium

Bezel material

Plastic

Design

With thumb-grip; Classical

Fitted with

Front ring

Functions

Stay-put/spring-return function, can be changed with coding parts M22-XC-Y

Indicator color

Other

Lens type

Round

Number of switch positions

2

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Connection to SmartWire-DT

With SWD-RMQ connections; Yes

Degree of protection

NEMA 4X, 13

Degree of protection (front side)

IP66

Lifespan, mechanical

100,000 Operations

Mounting position

As required

Opening diameter

22.5 mm

Operating frequency

2000 Operations/h

Operating torque

0.3 Nm

Overvoltage category

III

Pollution degree

3

Product category

RMQ-Titan

Size

Front diameter: 29.7 mm

Switching angle

60 °

Type

Selector switch actuator

Hole diameter

22.5 mm

Suitable for lighting

No

Spring-return

No

Degree of protection (IP), front side

IP66

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Type of control element

Wing knob

Colour control element

Black

Switching function latching

Yes

Country of origin

Germany

HS Code

8536.50
