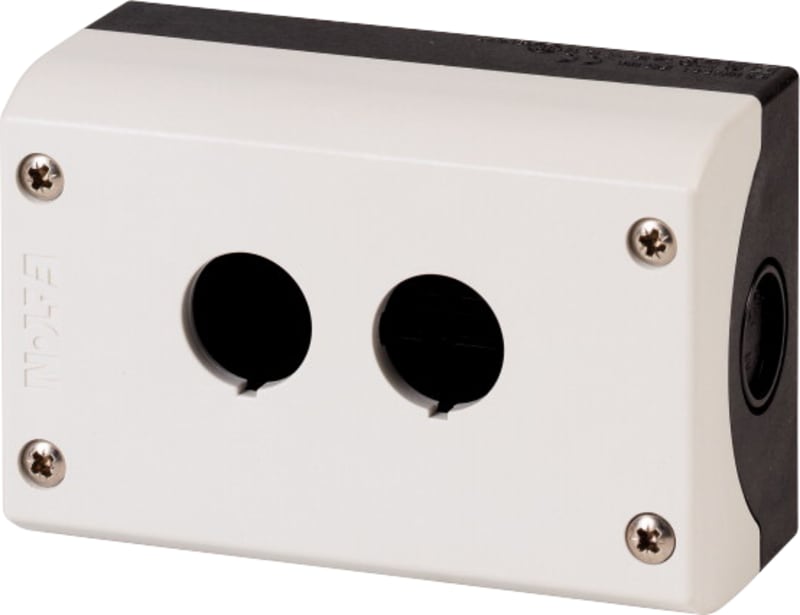

BOX 2 HOLE (M22-I2)

Eaton BOX 2 HOLE (M22-I2) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 216537; Depth: 80 mm; Height: 56 mm; Width: 120 mm; Weight: 0.197 kg.

Manufacturer part number (MPN)

M22-I2

EAN / GTIN

4015082165376

Sales unit

pcs

Eaton catalogue number

216537

Depth

80 mm

Height

56 mm

Width

120 mm

Weight

0.197 kg

Certifications

UL 508; CSA File No.: 012528; CSA; CE; UL Category Control No.: NKCR; CSA-C22.2 No. 94-91; IEC/EN 60947-5; UL; UL File No.: E29184; CSA Class No.: 3211-03; CSA-C22.2 No. 14-05

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Connection to SmartWire-DT

No

Enclosure color

Gray

Enclosure material

Plastic

Enclosure type

Surface mounting housing

Fitted with

High-grade steel screws

Knockouts

1 x M20 (cable entry knockout at the top); 2 x M20/25 (cable entry knockout at the side, 1 x each side); 2 x M20 (cable entry knockouts at the rear)

Number of command positions

2

Number of locations

2

RAL-number

7035

Degree of protection

IP67/IP69K; NEMA 4X

Opening diameter

22.5 mm

Diameter openings

22 mm

Colour housing cover

Grey

Housing material

Plastic

Construction type housing

Surface mounted housing

Country of origin

Germany

HS Code

8538.10

• EAN 4015082165376
• SAP 1000073884
• Code 8564529
