Eaton

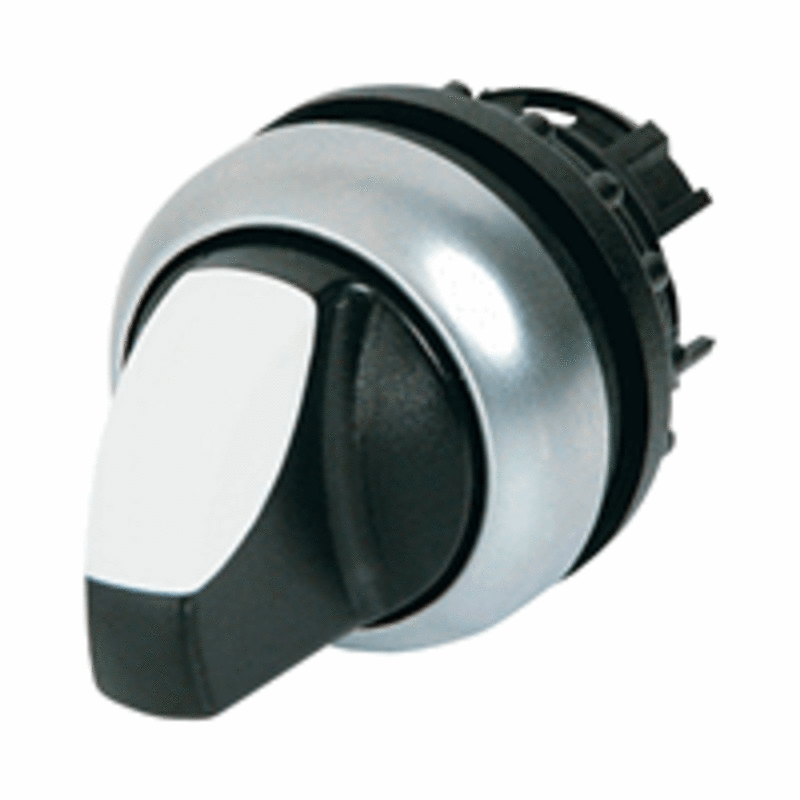

Eaton M22 Rotary Switch with Grip 3 Fixed Positions
Part numberM22-WRK3EAN / GTIN4015082168728HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-WRK3 rotary switch with grip, 3 fixed positions.
Technical Specifications
- Manufacturer part number (MPN)
- M22-WRK3
- EAN / GTIN
- 4015082168728
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216872
- Depth
- 46 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.013 kg
- Compliances
- CE Marked
- Certifications
- EN 60947-5; CSA Std. C22.2 No. 94-91; CSA Std. C22.2 No. 14-05; UL 508; IEC 60947-5; VDE; CSA File No.: 012528; IEC/EN 60947-5; VDE 0660; IEC/EN 60947; CE; CSA; CSA Class No.: 3211-03; CSA-C22.2 No. 14-05; UL; UL Category Control No.: NKCR; CSA-C22.2 No. 94-91; UL File No.: E29184; DNV; GL; LR
- Actuator color
- Black
- Actuator function
- Switching function latching; Maintained
- Actuator type
- Toggle
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- With thumb-grip; Classical
- Fitted with
- Plunger bridge for the middle contact; Front ring
- Functions
- Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
- Indicator color
- Other
- Lens type
- Round
- Number of switch positions
- 3
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- Yes; With SWD-RMQ connections
- Degree of protection
- NEMA 4X, 13
- Degree of protection (front side)
- IP66
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 2000 Operations/h
- Operating torque
- 0.3 Nm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Size
- Front diameter: 29.7 mm
- Switching angle
- 60 °
- Type
- Selector switch actuator
- Hole diameter
- 22.5 mm
- Suitable for lighting
- No
- Spring-return
- No
- Degree of protection (IP), front side
- IP66
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Type of control element
- Wing knob
- Colour control element
- Black
- Switching function latching
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082168728
- SAP 1000081482
- Code 8573148
Product Documentation
Document preview: VRISWITCH M/GREP 3 FASTE STILL (M22-WRK3) — Specification Data Sheet (OEM)
