Eaton
Skrittrele 1NO 230V50
Part numberZ-S230/SEAN / GTIN4015082652623HS code8536.49
Control & Automation
Relays & Timers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

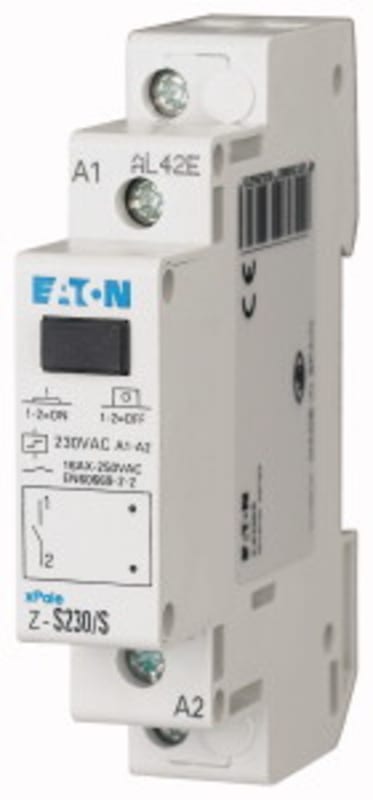

Eaton Z-S230/S SKRITTRELE 1NO 230V50.
Technical Specifications
- Manufacturer part number (MPN)
- Z-S230/S
- EAN / GTIN
- 4015082652623
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Eaton catalogue number
- 265262
- Depth
- 80 mm
- Height
- 70 mm
- Width
- 17.5 mm
- Weight
- 0.131 kg
- Compliances
- RoHS conform
- Certifications
- CE
- Number of poles
- Single-pole
- Mounting method
- DIN rail
- Control voltage 1 type
- AC
- Ambient operating temperature - max
- 45 °C
- Ambient operating temperature - min
- -20 °C
- Control voltage 1 - max
- 230 V
- Control voltage 1 - min
- 230 V
- Frequency control voltage 1 - max
- 50 Hz
- Frequency control voltage 1 - min
- 50 Hz
- Heat dissipation per pole, current-dependent
- 1.5 W
- Incandescent lamp load - max
- 1980 W
- Load fluorescent lamp - max
- 1020 VA
- Load fluorescent lamp (duo circuit) - max
- 1820 VA
- Load fluorescent lamp (parallel compensated) - max
- 1105 VA
- Number of contacts (change-over contacts)
- 0
- Number of contacts (normally closed contacts)
- 0
- Number of contacts (normally open contacts)
- 1
- Rated operational current for specified heat dissipation (In)
- 16 A
- Rated switch current
- 16 A
- Equipment heat dissipation, current-dependent
- 1.5 W
- Supply voltage - max
- 250 V
- Supply voltage - min
- 24 V
- Switching current (cos phi = 0.6) - max
- 24 A
- Width in number of modular spacings
- 1
- Built-in depth
- 60 mm
- Operating mode
- Manual operation possible
- Control voltage 2 type
- AC
- Voltage type
- AC
- Functions
- Mechanical switch
- Contact configuration
- 1 NO
- Control voltage 1
- 230 V
- Type of control voltage 1
- AC
- Type of control voltage 2
- AC
- Frequency control voltage 1
- 50 Hz
- Suitable for manual operation
- Yes
- Supply voltage
- 250 V
- Number of contacts as normally open contact
- 1
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4015082652623
- SAP 1000054690
- Code 8885301
Product Documentation
Document preview: SKRITTRELE 1NO 230V50 (Z-S230/S) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Residual current circuit breaker with overcurrent 10A 3P B 30MAA (PKPM3-10/3/B/003-A)
Eaton
BOX 1 HOLE (M22-I1)
Eaton

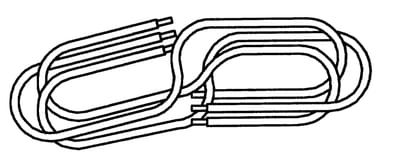

Matte silencer loop 10 MM2 Class 1, 4 poles
MS-10MM2/4P
Eaton

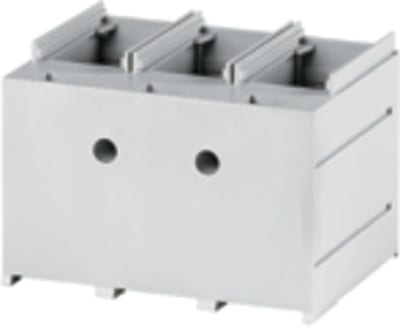

Eaton Terminal Cover IP20 4-Pole (NZM2-4-XKSA)
Eaton
Meterskrue FOR CROSS M5X20 (3 pcs)
PH715063
Eaton
Eaton FAZ-C10/4 Miniature Circuit Breaker — 4P, Type C, 10 A, 15 kA
Eaton

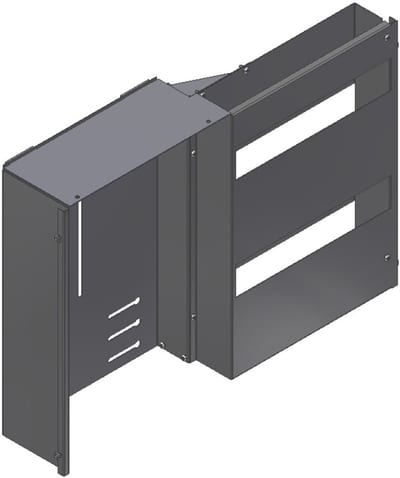

2 Rows Rehab Insert with Meter (2R-M-550)
