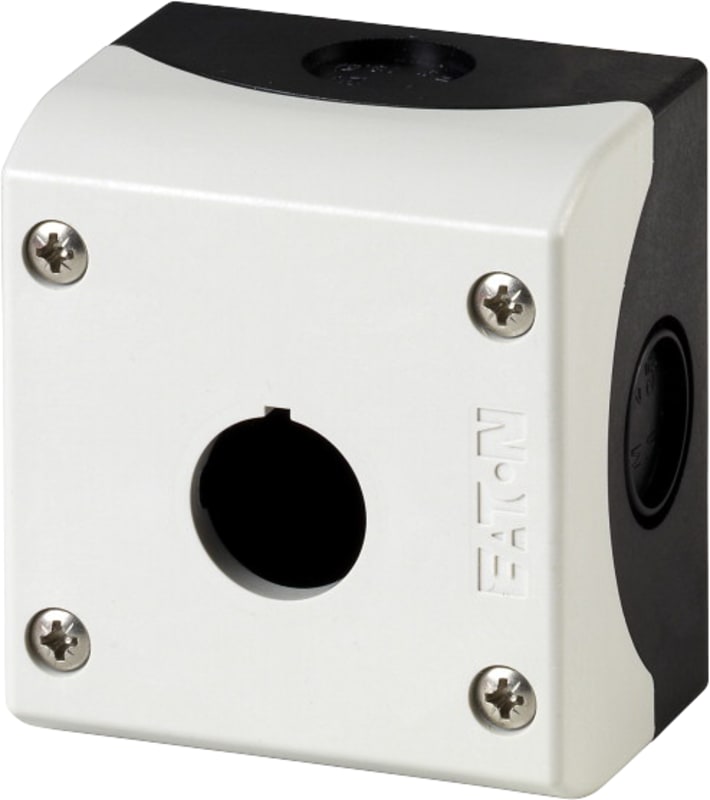

BOX 1 HOLE (M22-I1)

Eaton BOX 1 HOLE (M22-I1) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 2 pcs; Eaton catalogue number: 216535; Depth: 56 mm; Height: 80 mm; Width: 72 mm.

Manufacturer part number (MPN)

M22-I1

EAN / GTIN

4015082165352

Sales unit

pcs

Package quantity

2 pcs

Eaton catalogue number

216535

Depth

56 mm

Height

80 mm

Width

72 mm

Weight

0.134 kg

Certifications

CSA-C22.2 No. 14-05; UL; CSA File No.: 012528; CSA-C22.2 No. 94-91; UL File No.: E29184; CE; IEC/EN 60947-5; CSA; CSA Class No.: 3211-03; UL 508; UL Category Control No.: NKCR

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Connection to SmartWire-DT

No

Enclosure color

Gray

Enclosure material

Plastic

Enclosure type

Surface mounting housing

Fitted with

High-grade steel screws

Knockouts

2 x M16 (cable entry knockouts at the rear); 1 x M20 (cable entry knockout at the top); 2 x M20/25 (cable entry knockout at the side, 1 x each side)

Number of command positions

1

Number of locations

1

RAL-number

7035

Degree of protection

NEMA 12; IP67/IP69K

Opening diameter

22.5 mm

Diameter openings

22 mm

Colour housing cover

Grey

Housing material

Plastic

Construction type housing

Surface mounted housing

Country of origin

Germany

HS Code

8538.10

• EAN 4015082165352
• SAP 1000046414
• Code 8529205
