Eaton

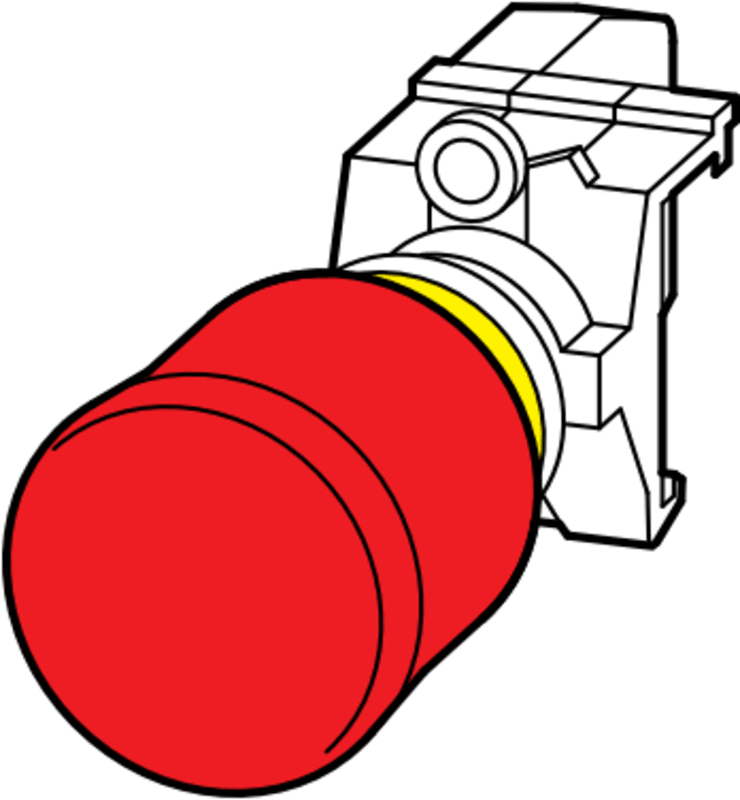

Complete Emergency Stop, Push/Pull, 1 NC
Part numberM22-PV/K01EAN / GTIN4015082165154HS code8538.90
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-PV/K01 complete emergency-stop push button, push-to-stop / pull-to-release, with 1 N/C contact.
Technical Specifications
- Manufacturer part number (MPN)
- M22-PV/K01 EAN / GTIN: 4015082165154 Sales unit: pcs Package quantity: 5 pcs Eaton catalogue number: 216515 Depth: 90 mm Height: 38 mm Width: 38 mm Weight: 0.052 kg Certifications: CE; CSA File No.: 012528; IEC/EN 60947-5; CSA-C22.2 No. 14-05; UL; VDE 0660; CSA-C22.2 No. 94-91; IEC/EN 60947; UL Category Control No.: NKCR; CSA Class No.: 3211-03; UL 508; UL File No.: E29184; CSA; DNV; GL; LR Catalog Notes: Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11 Actuating force: 50 N Actuator color: Red Actuator diameter: 38 mm Actuator function: Pull-to-release Actuator travel and actuation force (DIN EN 60947-5-1): 4.8 mm Design: Mushroom-shaped; Classical Illumination: Non-illuminated Knob travel: 5.7 mm Unlocking method: Pull-release Force for positive opening - min: 15 N Number of contacts (normally closed contacts): 1 Number of contacts (normally open contacts): 0 Ambient operating temperature - max: 70 °C Ambient operating temperature - min: -25 °C Climatic proofing: Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78 Connection to SmartWire-DT: No Heat dissipation per pole, current-dependent Pvid: 0.11 W Rated operational current for specified heat dissipation (In): 6 A Rated operational voltage: 24 V AC/DC (LED) Base color: Yellow Features: Tamper-proof (according to ISO 13850, EN 418) Degree of protection: IP66; NEMA 4X, 13 Lifespan, mechanical: 100,000 Operations Mounting method: Built-in Mounting position: As required Opening diameter: 22.5 mm Operating frequency: 600 Operations/h Overvoltage category: III Pollution degree: 3 Product category: RMQ-Titan Size: Front dimensions: 35 mm Type: Controlled stop pushbutton/emergency-stop button Rated conditional short-circuit current (Iq): 1 kA Number of contacts as normally closed contact: 1 With lighting: No Hole diameter: 22 mm Connection type auxiliary circuit: Screw connection Diameter cap: 38 mm Country of origin: Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082165154
- SAP 1000050248
- Code 8533417
Product Documentation
Document preview: KOMPL. Emergency STOP Trykk/pull 1TO (M22-PV/K01) — Specification Data Sheet (OEM)
More from Eaton
Eaton

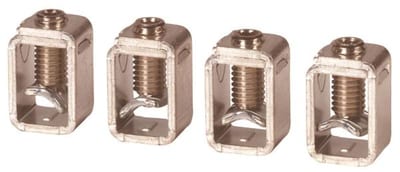

Eaton NZM2-4-250-XKC
Eaton

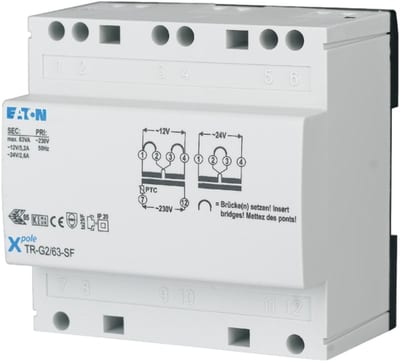

Bell Transformer MOD 230/12-24V50HZ
TR-G2/63-SF
Eaton
Eaton M22 Rotary Switch with Grip 1-0-2 Momentary
M22-WK3
Eaton
Eaton xPole PFIM Residual Current Circuit Breaker (RCCB) — Type A, 4-Pole, 40 A, 300 mA, Instantaneous
PFIM-40/4/03-A-MW
Eaton

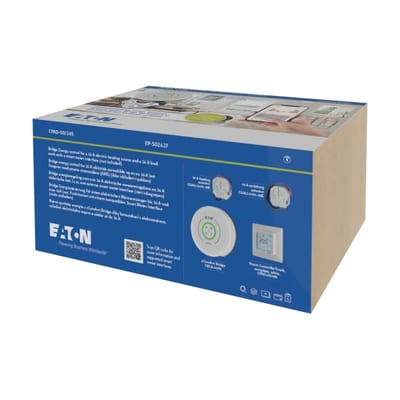

Eaton EP-502627 xComfort Bridge Energy Control for Smart Meter
Eaton

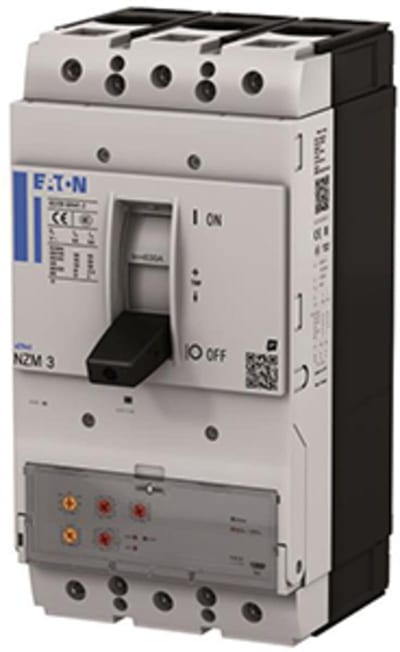

Eaton NZMH3-4-VX400/VAR Molded-Case Circuit Breaker 4-Pole 400A 150KA
