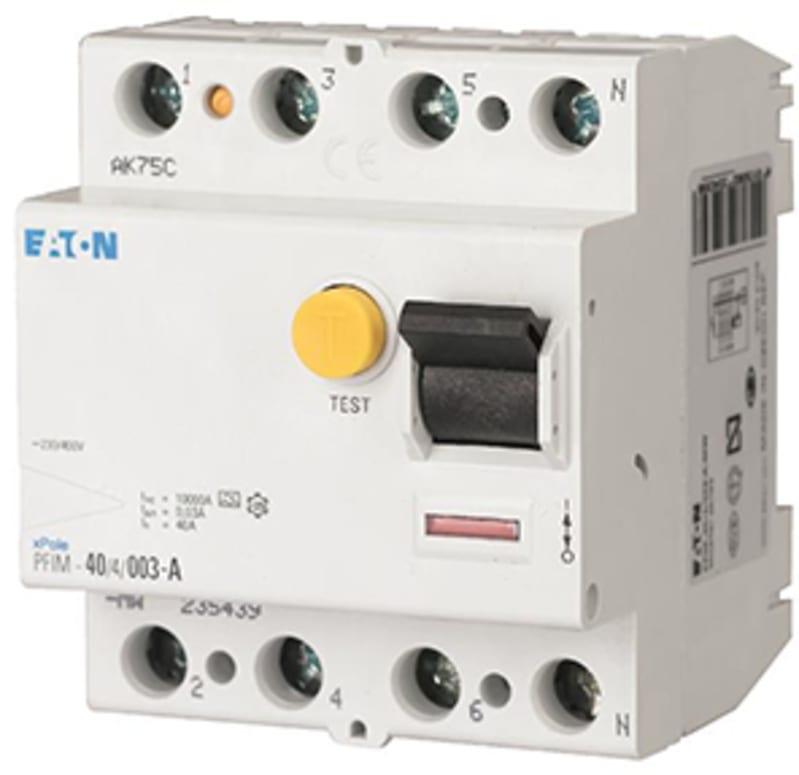

Eaton xPole PFIM Residual Current Circuit Breaker (RCCB) — Type A, 4-Pole, 40 A, 300 mA, Instantaneous

The Eaton PFIM-40/4/03-A-MW is a residual current circuit breaker (RCCB) from the Moeller series xPole PFIM range. It disconnects the circuit when the current flowing out does not match the current returning — the signature of a fault to earth, whether through failed insulation or through a person. It provides no overcurrent protection of its own and is installed together with the circuit's MCB or fuse. This device is 4-pole, rated 40 A, with a rated residual current of 300 mA. Type A responds to sinusoidal AC residual currents and to pulsating DC residual currents. It is the general-purpose type for circuits with ordinary electronic loads. It has an instantaneous tripping characteristic. At 300 mA it is intended for protection against earth-fault fire and for equipment protection, not for protection against direct contact — that requires a 30 mA device. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Manufacturer part number (MPN)

PFIM-40/4/03-A-MW

EAN / GTIN

4015082354411

HS code

8536.90

Sales unit

pcs

Package quantity

3 pcs

Eaton catalogue number

235441

Depth

76 mm

Height

80 mm

Width

70 mm

Weight

0.318 kg

Compliances

RoHS conform

Certifications

IEC/EN 61008

Accessories required

Z-HK 248432

Features

Residual current circuit breaker; Additional equipment possible

Fitted with

Interlocking device

Special features

Maximum operating temperature is 60 °C: Starting at 40 °C, the max. permissible continuous current decreases by 2.5% for every 1 °C Tripping signal contact for subsequent installation Z-NHK 248434

Used with

Residual current circuit breakers; Type A; PFIM; KLV-TC-4 276241 (Compact enclosure); Z-FW/LP 248296 (Remote control and automatic switching device); Z-RC/AK-4MU 101062 (sealing cover set)

Amperage Rating

40 A

Application

Residual current circuit breaker for residential and commercial applications xPole - Switchgear for residential and commercial applications

Fault current rating

300 mA

Impulse withstand current

Partly surge-proof 250 A

Number of poles

Four-pole

Rated short-circuit strength

10 kA

Sensitivity type

Pulse-current sensitive

Tripping time

Non-delayed

Type

PFIM Residual current circuit breakers Type A

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

8.4 W

Heat dissipation capacity

0 W

Heat dissipation per pole, current-dependent

0 W

Rated operational current for specified heat dissipation (In)

40 A

Static heat dissipation, non-current-dependent

0 W

Admissible back-up fuse overload - max

25 A gG/gL

Frequency rating

50 Hz

Leakage current type

A

Lifespan, electrical

4000 operations

Pollution degree

2

Rated fault current - max

0.3 A

Rated fault current - min

0.3 A

Rated impulse withstand voltage (Uimp)

4 kV

Rated insulation voltage (Ui)

440 V

Rated operational voltage (Ue) - max

400 V

Rated residual making and breaking capacity

500 A

Rated short-time withstand current (Icw)

10 kA

Short-circuit rating

63 A (max. admissible back-up fuse)

Surge current capacity

0.25 kA

Test circuit range

196 V AC - 456 V AC

Voltage rating

230 V AC / 400 V AC

Built-in depth

70.5 mm

Built-in width (number of units)

70 mm (4 SU)

Busbar material thickness

0.8 mm - 2 mm

Climatic proofing

25-55 °C / 90-95% relative humidity according to IEC 60068-2

Connectable conductor cross section (multi-wired) - max

16 mm²

Connectable conductor cross section (multi-wired) - min

1.5 mm²

Connectable conductor cross section (solid-core) - max

35 mm²

Connectable conductor cross section (solid-core) - min

1.5 mm²

Degree of protection

IP20; IP20, IP40 with suitable enclosure

Frame

45 mm

Lifespan, mechanical

20000 operations

Mounting Method

DIN rail; Quick attachment with 2 latch positions for DIN-rail IEC/EN 60715

Permitted storage and transport temperature - max

60 °C

Permitted storage and transport temperature - min

-35 °C

Terminal capacity (solid wire)

1.5 mm² - 35 mm²

Terminal capacity (stranded cable)

16 mm² (2x)

Terminal protection

Finger and hand touch safe, DGUV VS3, EN 50274

Terminals (top and bottom)

Open mouthed/lift terminals

Width in number of modular spacings

4

Product family

Eaton Moeller series xPole PFIM RCCB

Device type

Residual current circuit breaker (RCCB), no integral overcurrent protection

Residual current type

Type A

Rated residual current (IΔn)

300 mA

Rated current

40 A

Tripping characteristic

Instantaneous

Selection note

Sinusoidal AC and pulsating DC

Protection purpose

Protection against earth-fault fire / equipment protection

HS Code

8536.90

• EAN 4015082354411
• SAP 1000064614
• Code 8902643
• MPN PFIM-40/4/03-A-MW
• Type A
