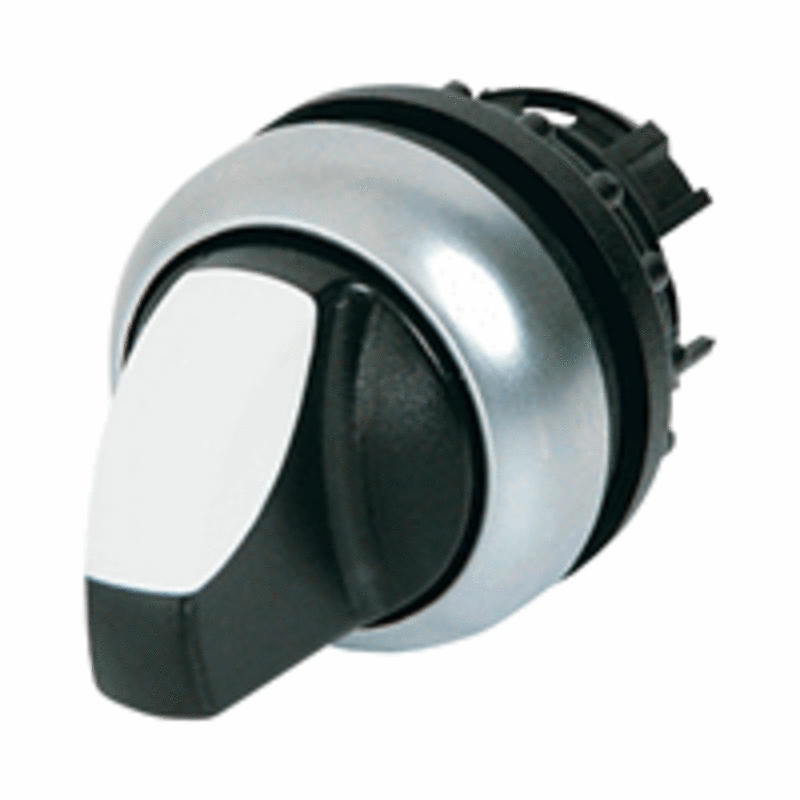

Eaton M22 Rotary Switch with Grip 1-0-2 Momentary
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-WK3 rotary switch with thumb-grip in 1-0-2 spring-return (momentary) configuration. Part of the RMQ-Titan series with 22.5 mm mounting and IP66 protection, featuring three switch positions and a plunger bridge for the middle contact. Rated for 100,000 mechanical operations.
Technical Specifications
- Manufacturer part number (MPN)
- M22-WK3
- EAN / GTIN
- 4015082168704
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216870
- Depth
- 46 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.013 kg
- Compliances
- CE Marked
- Certifications
- UL 508; CSA Std. C22.2 No. 94-91; CSA Std. C22.2 No. 14-05; EN 60947-5; IEC 60947-5; VDE; CSA Class No.: 3211-03; CSA-C22.2 No. 94-91; IEC/EN 60947-5; CSA File No.: 012528; CSA-C22.2 No. 14-05; UL; CSA; UL Category Control No.: NKCR; UL File No.: E29184; CE; IEC/EN 60947; VDE 0660
- Actuator color
- Black
- Actuator function
- Momentary; Spring-return
- Actuator type
- Toggle
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- With thumb-grip
- Fitted with
- Front ring; Plunger bridge for the middle contact
- Functions
- Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
- Indicator color
- Other
- Lens type
- Round
- Number of switch positions
- 3
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Accessories
- Thumb grip
- Degree of protection
- NEMA 4X, 13
- Degree of protection (front side)
- IP66
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 2000 Operations/h
- Operating torque
- 0.3 Nm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Size
- Front diameter: 29.7 mm
- Switching angle
- 40 °
- Type
- Selector switch actuator
- Hole diameter
- 22.5 mm
- Suitable for lighting
- No
- Spring-return
- Yes
- Degree of protection (IP), front side
- IP66
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Type of control element
- Wing knob
- Colour control element
- Black
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082168704
- SAP 1000055132
- Code 8842657
Product Documentation
More from Eaton
Eaton
Eaton xPole PFIM Residual Current Circuit Breaker (RCCB) — Type A, 4-Pole, 40 A, 300 mA, Instantaneous
PFIM-40/4/03-A-MW
Eaton
Eaton EP-502627 xComfort Bridge Energy Control for Smart Meter
Eaton
Eaton NZMH3-4-VX400/VAR Molded-Case Circuit Breaker 4-Pole 400A 150KA
Eaton
Multifunksjonsrele 24-240VACDC (ETR4-69-A)
Eaton
Eaton FAZ-C10/1 Miniature Circuit Breaker — 1P, Type C, 10 A, 15 kA
Eaton

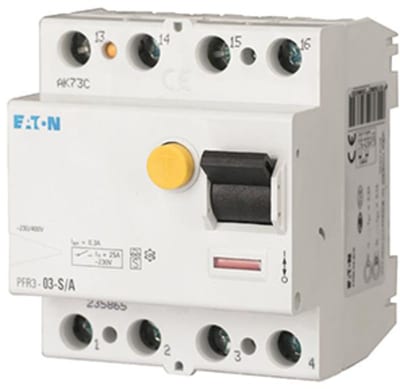

Residual current circuit breaker 63A 4P 300MA S/A
235472
Eaton

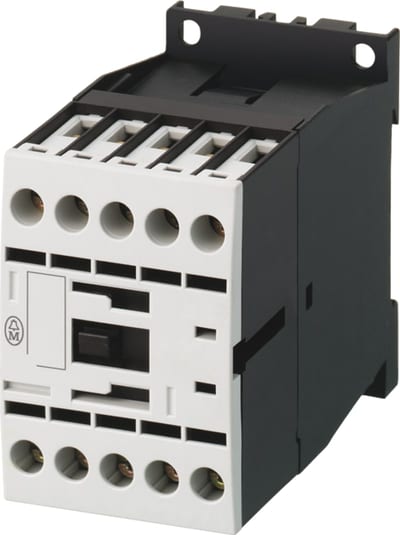

Contactor 4POL 230V50HZ 240V60 (DILMP20(230V50HZ,240V60HZ))
Eaton

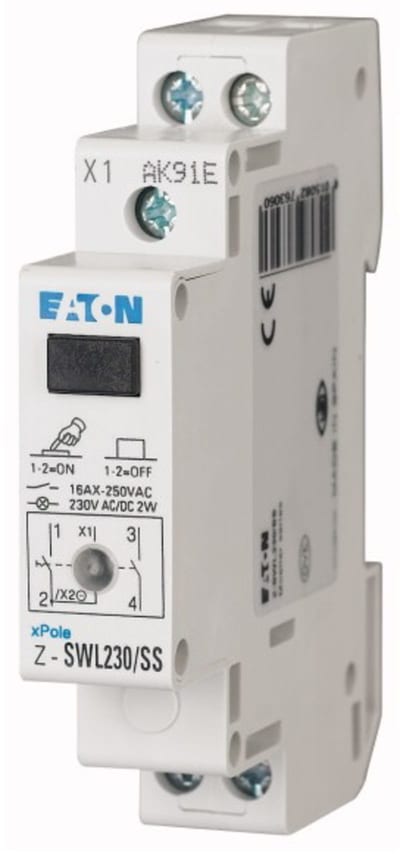

Pressure Switch with LED, 230AC/DC, 2N/O, 16A
