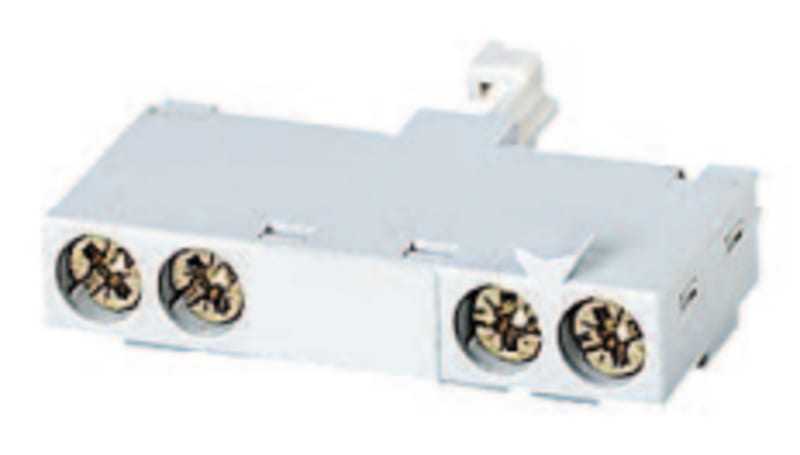

Auxiliary contact FOR BR.1NO 1NC

Eaton NHI-E-11-PKZ0 Auxiliary Contact For Br.1No 1Nc.

Manufacturer part number (MPN)

NHI-E-11-PKZ0

EAN / GTIN

4015080828822

Sales unit

pcs

Package quantity

5 pcs

Eaton catalogue number

082882

Depth

12 mm

Height

35 mm

Width

45 mm

Weight

0.016 kg

Certifications

CE; UL Category Control No.: NLRV; CSA; CSA-C22.2 No. 14; UL File No.: E36332; CSA File No.: 165628; IEC/EN 60947-4-1; UL 508; CSA Class No.: 3211-05; UL

Catalog Notes

Can be fitted to the front. Terminal designation differs to that of an auxiliary contact that can be fitted to the side

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-25 °C

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Rated operational current for specified heat dissipation (In)

1 A

Heat dissipation per pole, current-dependent Pvid

0.01 W

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

1 A

Rated operational current (Ie) at DC-13, 24 V

2 A

Rated operational voltage (Ue) at AC - max

440 V

Rated operational voltage (Ue) at DC - max

250 V

Safe isolation

440 V, Between auxiliary contacts and main contacts, According to EN 61140

Short-circuit protection rating without welding

10 A gG/gL, Fuse, Auxiliary contacts

Electric connection type

Screw connection

Lifespan, electrical

50,000 Operations

Lifespan, mechanical

50,000 operations

Model

Top mounting

Mounting method

Front fastening

Overvoltage category

III

Pollution degree

3

Product category

Accessories

Rated impulse withstand voltage (Uimp)

4000 V AC

Used with

Motor protective circuit-breaker

Switching capacity (auxiliary contacts, general use)

0.5 A, 250 V DC, (UL/CSA)

Switching capacity (auxiliary contacts, pilot duty)

E150, AC operated (UL/CSA)

Terminal capacity (solid/flexible with ferrule)

0.75 - 1.5 mm²

Terminal capacity (solid/stranded AWG)

18 - 16, Screw terminals

Country of origin

Germany

HS Code

8538.90

• EAN 4015080828822
• SAP 1000084826
• Code 8841878
