Eaton
Connectionsstykke (K2X240/4)
Part numberK2X240/4EAN / GTIN4015080487470HS code8538.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

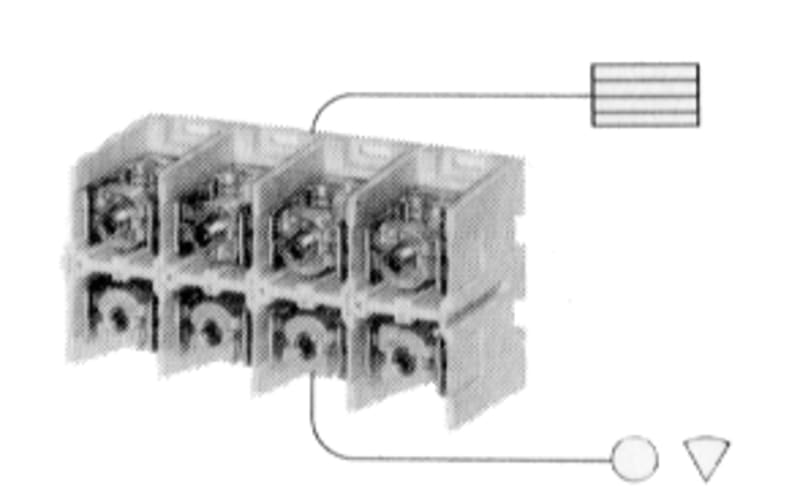

Eaton K2X240/4 Mains-tilkoplingsklemmer, 630A. 4-pole.
Technical Specifications
- Manufacturer part number (MPN)
- K2X240/4
- EAN / GTIN
- 4015080487470
- Sales unit
- pcs
- Eaton catalogue number
- 048747
- Depth
- 225 mm
- Height
- 140 mm
- Width
- 254 mm
- Weight
- 6.94 kg
- Compliances
- RoHS conform
- Features
- Contact safe
- Suitable for
- Useful for stranded conductors
- Used with
- General switchboard accessory; Accessory panel building
- Accessory/spare part type
- Terminals, 160 – 1000 A; Terminations
- Nominal current
- 630 A
- Number of poles
- Four-pole
- Type
- Accessory panel building General switchboard accessory
- Rated insulation voltage (Ui)
- 1000 VAC
- Rated operation current (Ie)
- 630 A
- Conductor cross section, input - max
- 300 mm²
- Conductor cross section, input - min
- 70 mm²
- Conductor cross section, input AWG - max
- 600 mm²
- Conductor cross section, output - max
- 300 mm²
- Conductor cross section, output - min
- 70 mm²
- Mounting method
- Screw
- Number of connections (Less Than 6 mm squared)
- 0
- Number of connections (Less Than AWG 6)
- 0
- Number of connections (Greater Than 25 mm squared)
- 8
- Number of connections (Greater Than 250 kcmil)
- 0
- Number of connections (10 mm squared)
- 0
- Number of connections (16 mm squared)
- 0
- Number of connections (25 mm squared)
- 0
- Number of connections (250 kcmil)
- 0
- Number of connections (AWG 2)
- 0
- Number of connections (AWG 4)
- 0
- Number of connections (AWG 4/0)
- 0
- Number of connections (AWG 6)
- 0
- Number of connections (total)
- 8
- Number of inputs
- 1
- Number of outputs
- 2
- Terminal capacity (aluminum cable)
- 150 mm² - 240 mm² (1x); 95 mm² - 185 mm² (2x)
- Terminal capacity (conductor)
- 40 mm x 15 mm
- Terminal capacity (copper band)
- 21 mm x 1 mm (11x) for flat strip; 16 mm x 0.8 mm (10x) for flat strip
- Terminal capacity (copper/aluminum cable)
- 150 mm² - 300 mm² (1x); 50 mm² - 240 mm² (2x)
- Connection type
- Clamp; Screwing
- Contact safe
- Yes
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for fine strand conductors without cable end sleeve
- Yes
- Suitable for extra fine-strand conductors
- Yes
- Conductor cross section, input
- 70–300 mm²
- Conductor cross section, output
- 70–300 mm²
- Conductor cross section, input AWG
- 0–600
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015080487470
- SAP 1000032300
- Code 8509225
