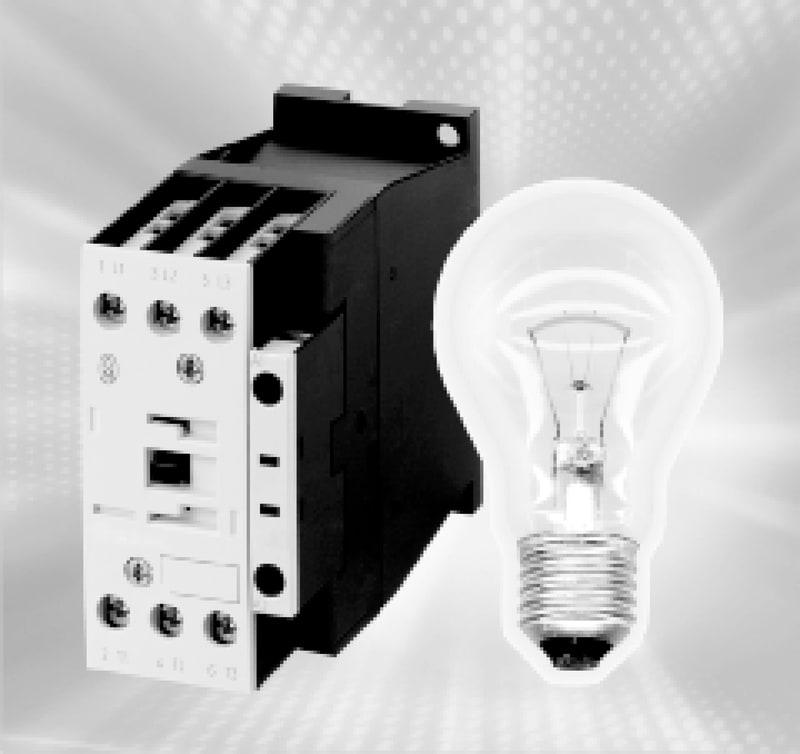

Contactor, lyslast, DILL18(230V50HZ) (DILL18(230V50HZ,240V60HZ))

Eaton DILL18(230V50HZ,240V60HZ) DILL18 - Contactor for light, coil 230-240 VAC.

Manufacturer part number (MPN)

DILL18(230V50HZ,240V60HZ)

EAN / GTIN

4015081042227

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

104405

Depth

97 mm

Height

85 mm

Width

45 mm

Weight

0.426 kg

Compliances

CE Marked

Certifications

IEC 60947-4-1; UL 508; EN 60947-4-1; CSA Std. C22.2 No. 14-05; VDE; IEC/EN 60947-4-1; CE; CSA File No.: 012528; UL; CSA; UL 60947-4-1; UL Category Control No.: NLDX; CSA-C22.2 No. 60947-4-1-14; UL File No.: E29096; CSA Class No.: 3211-04; VDE 0660; IEC/EN 60947

Shock resistance

6.9 g, N/O main contact, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Number of main contacts (normally open contact)

3

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith at 60°C (3-pole, open)

35 A

Equipment heat dissipation, current-dependent Pvid

3 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

1 W

Rated operational current for specified heat dissipation (In)

21 A

Static heat dissipation, non-current-dependent Pvs

2.1 W

Permissible compensation capacity

470 µF

Rated breaking capacity at 380/400 V

250 A

Rated insulation voltage (Ui)

690 V

Rated making capacity (cos phi to IEC/EN 60947)

350 A

Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V

18 A

Rated operational voltage (Ue) at AC - max

690 V

Emitted interference

According to EN 60947-1

Interference immunity

According to EN 60947-1

Number of poles

Three-pole

Application

Contactors for lighting systems

Connection

Screw terminals

Degree of protection

IP00

Lifespan, electrical

10,000 Operations

Lifespan, mechanical

1,000,000 Operations (AC operated)

Operating frequency

60 mechanical Operations/h (AC operated); 60 electrical Operations/h

Overvoltage category

III

Pollution degree

3

Product category

DILL Lighting contactors

Rated impulse withstand voltage (Uimp)

8000 V AC

Resistance per pole

2.65 mΩ

Utilization category

AC-1: Non-inductive or slightly inductive loads, resistance furnaces

Voltage type

AC

Drop-out voltage

AC operated: 0.6 - 0.3 x UC, AC operated

Duty factor

100 %

Pick-up voltage

0.8 - 1.1 V AC x Uc

Power consumption, pick-up, 50 Hz

52 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz

Power consumption, pick-up, 60 Hz

67 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Power consumption, sealing, 50 Hz

2.1 W, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz; 7.1 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz

Power consumption, sealing, 60 Hz

2.1 W, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz; 8.7 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Rated control supply voltage (Us) at AC, 50 Hz - max

230 V

Rated control supply voltage (Us) at AC, 50 Hz - min

230 V

Rated control supply voltage (Us) at AC, 60 Hz - max

240 V

Rated control supply voltage (Us) at AC, 60 Hz - min

240 V

Switching time (AC operated, make contacts, closing delay) - max

22 ms

Switching time (AC operated, make contacts, closing delay) - min

16 ms

Switching time (AC operated, make contacts, opening delay) - max

14 ms

Switching time (AC operated, make contacts, opening delay) - min

8 ms

Short-circuit current rating (basic rating)

125 A, max. CB, SCCR (UL/CSA); 5 kA, SCCR (UL/CSA); 125 A, max. Fuse, SCCR (UL/CSA)

Short-circuit current rating (high fault at 480 V)

100 kA, Fuse, SCCR (UL/CSA); 100 A, Class J, max. Fuse, SCCR (UL/CSA); 22 kA, CB, SCCR (UL/CSA); 32 A, max. CB, SCCR (UL/CSA)

Short-circuit current rating (high fault at 600 V)

100 A, Class J, max. Fuse, SCCR (UL/CSA); 32 A, max. CB, SCCR (UL/CSA); 100 kA, Fuse, SCCR (UL/CSA); 22 kA, CB, SCCR (UL/CSA)

Short-circuit protection rating (type 2 coordination) at 400 V

100 A gG/gL

Special purpose rating of tungsten incandescent lamps

35 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA); 35 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA)

Switching capacity (main contacts, general use)

35 A, Maximum motor rating (UL/CSA)

HS Code

8536.90

• EAN 4015081042227
• SAP 1000057984
• Code 8867601
